2001-2010 GM HD / GM 1500 7" Lift Kit with FOX 2.0 Performance Shocks (BDS1818FS)

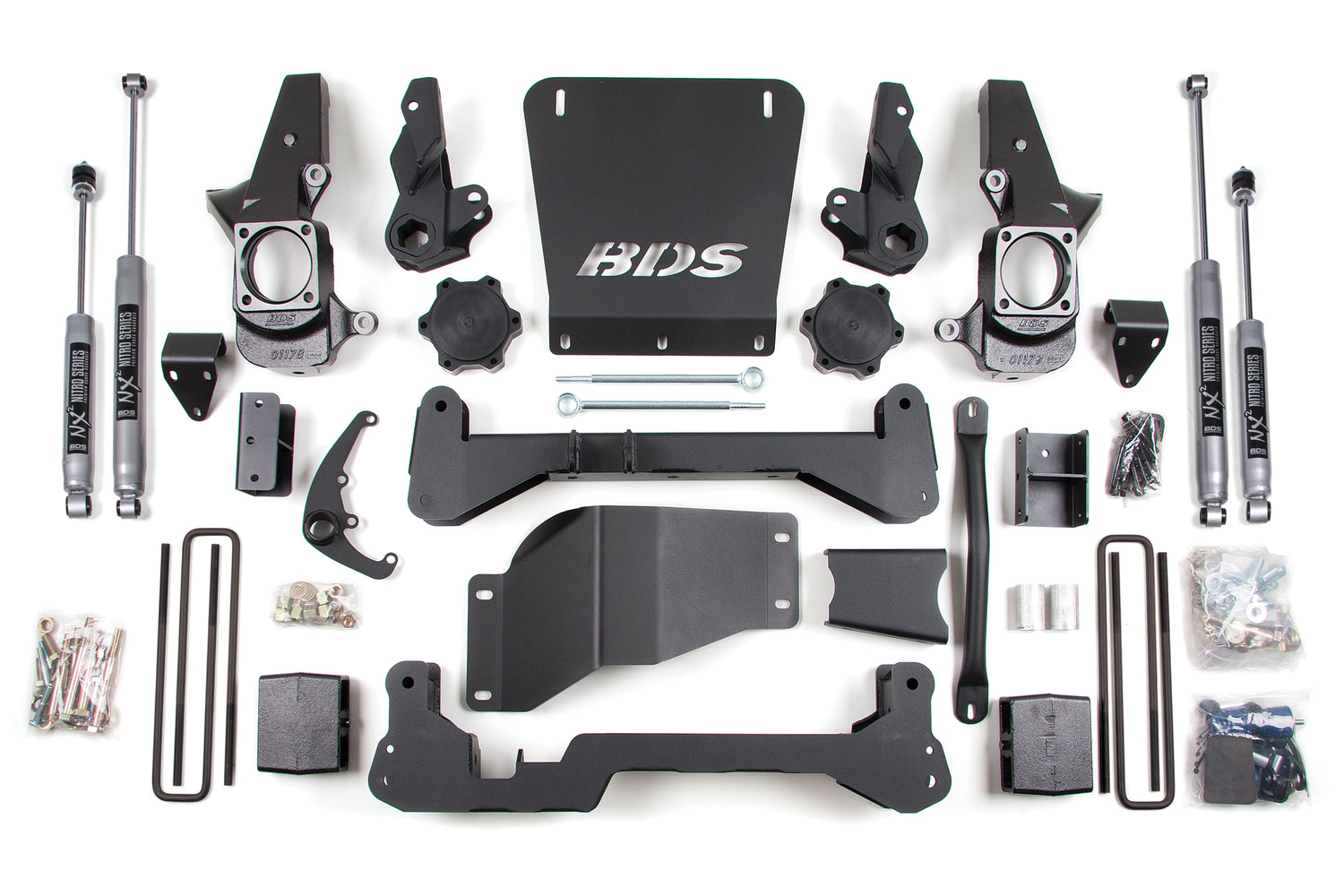

BDS Suspension built this lift kit to set your 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 4WD up right with 7" of lift and clears up to 35" tires. It comes with everything to do the job: a no-torsion-bar-drop high-clearance crossmember and skid plate system, CNC-machined steering knuckles, a forged drop pitman arm and track bar bracket up front, rear lift blocks or optional full replacement leaf springs out back, and a matched set of FOX 2.0 Performance Series shocks.

The No Torsion Bar Drop design mounts the torsion bars to the top of the lower a-arm for maximum ground clearance, and the kit corrects steering and suspension geometry to keep on-road handling factory-smooth. It's offered with a standard knuckle that widens track width or a narrow track knuckle that cuts the track change by about 1.5".

Features

• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 or FOX 2.0 gas shocks for improved performance

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 7 Inch
• Rear Lift Height: 5 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Back Spacing: 5.5/5.75

Notes

• Torsion Bar tool required to load/unload the torsion bars.
• Some welding is required.
• Requires frame bracket modification and differential mount modification.
• Traction bars will NOT fit standard cab/short box models and are designed to work on vehicles with 4 Inch to 8 Inch of lift. Will NOT work on long bed models.
• 20 Inch wheels with 5 Inch to 5-3/4 Inch backspacing are recommended to reduce trimming.
• Gas models require exhaust modification.
• The narrow track knuckle will slightly increase the turning radius.
• For tail high stance use #119157 add-a-leaf with the block kit or #069207 with the leaf spring kit.
• Dually applications will require custom u-bolts.
• Leaf spring option does not work with the SUV's.

Includes

• BDS011517, 01-10 GM 3/4Ton 5in Rear (flat) (UPC 658848611928)
• BDS021633, 01-08 HD 7in HC Crossmember Kit (UPC 658848614899)
• BDS021634, 01-08 HD 7in HC Box Kit (UPC 658848614905)
• BDS021635, HD Narrow Track Knuckle Kit (UPC 658848614912)
• FOX98224606, Fox 2.0 Shock 21.95 x 13.85 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
