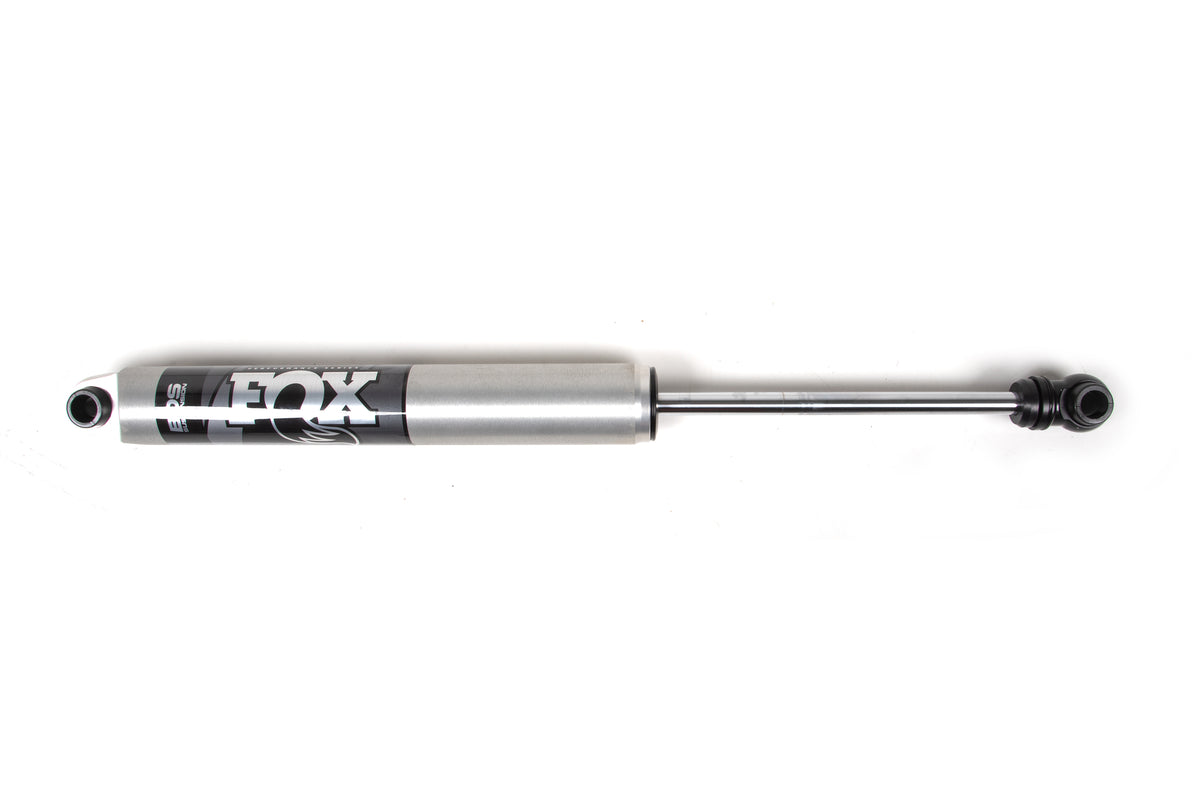

2002-2009 Trailblazer/Envoy 2" Lift Fox 2.0 IFP Front Shock (FOX98224619)

Purpose-built for 2002-2009 Chevy Trailblazer and GMC Envoy vehicles equipped with BDS 2-inch lift systems, this FOX 2.0 IFP shock combines internal floating piston technology with a mono-tube architecture and pressurized nitrogen chamber for stable damping across varied terrain. The hard chrome-finished steel shaft and 6061-T6 anodized aluminum construction provide corrosion protection and durability in harsh conditions. Race-derived valve tuning ensures responsive, predictable performance whether navigating highways or technical off-road trails.

Features

• Custom valved by FOX and BDS to perfectly match BDS 2-inch lift kits for 2002-2009 Chevy Trailblazer and GMC Envoy
• Mono-tube design with internal floating piston (IFP) technology for maximum performance and fade-free operation
• 2-inch impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
• 5/8-inch hard chrome plated heat-treated alloy steel shaft for durability
• Race-developed high-flow piston design enhances suspension response and control

Specs

• Adjustable Damping: No
• Compressed Length: 15.8
• Extended Length: 26.2
• Finish: Clear-anodized
• Gas Charged: Yes
• Lower Mount Code: EB1
• Lower Mount Type: Eyelet
• Shaft Diameter: 5/8
• Travel Length: 10.4
• Type: Smooth Body
• Upper Mount Code: EB1
• Upper Mount Type: Eyelet
