2002-2009 Trailblazer / Envoy 2" Lift Kit with NX2 Nitro Shocks (BDS168H)

Level out your 2002-2009 Chevy Trailblazer or GMC Envoy by installing this 2-inch lift kit from BDS. Specially designed for the GM SUVs, this 2 inch lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

Features

• Easy, 100% bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control

Shock Features

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Strut Spacer
• Rear Lift Method: Spacer
• Front Lift Height: 2 inch
• Rear Lift Height: 2 inch
• Shocks Included: Yes

Notes

• Strut compressor required for installation.
• Will not fit vehicles equipped with a rear air-ride system.
• Will fit Ext and XL models.
• Front only kit available as part #121201.

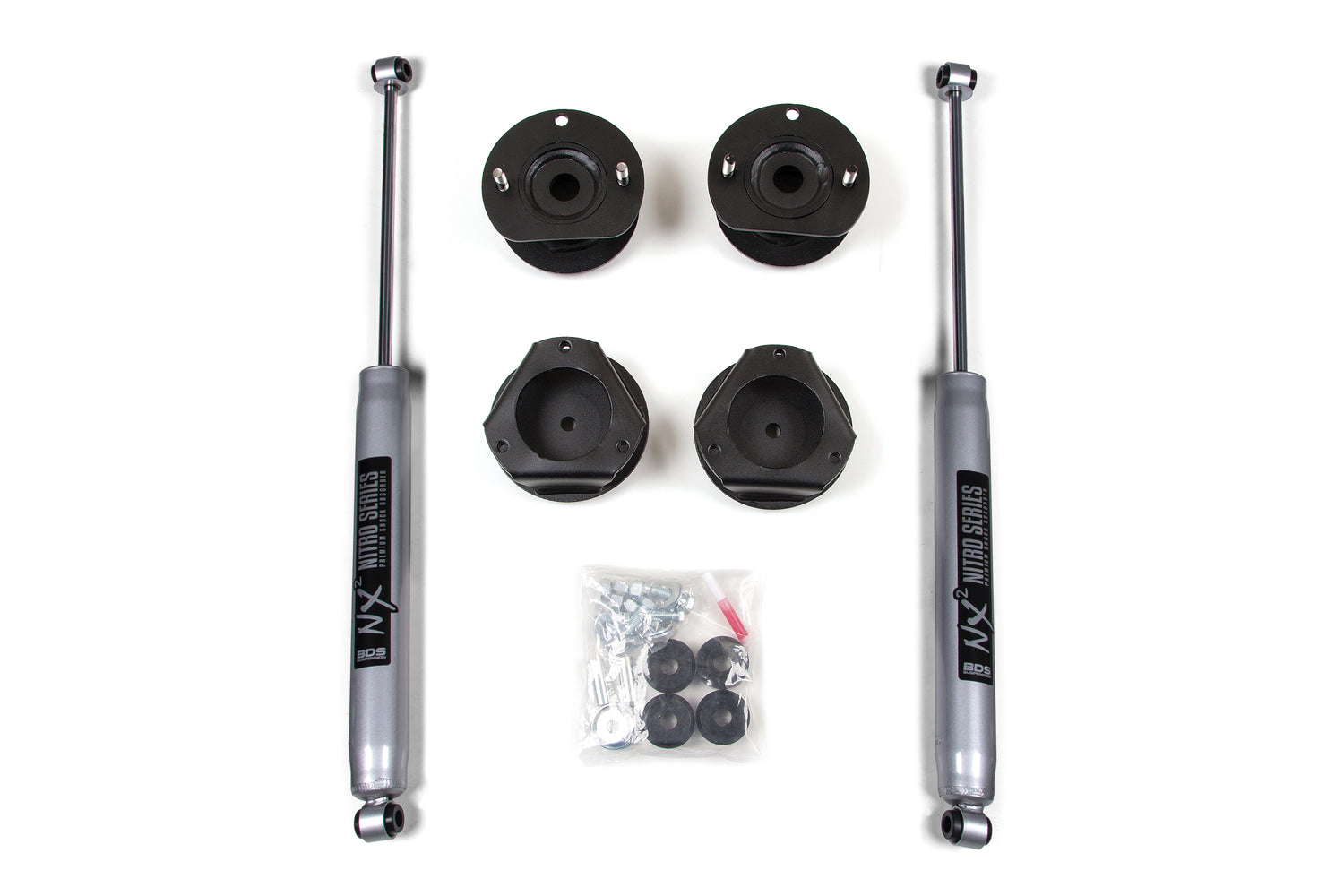

Includes

• BDS011201 - 02-09 GM Trail/Envoy 2 Inch Box Kit (UPC 658848611676)
• BDS85619 - Shock 26.20 x 15.80 x 2-3/8, EB1/EB1 (UPC 711745609396), Qty 2

Manufacturer Description

To prevent maxing out ball joints or CV damage, BDS gets around this issue with a one piece mount that increases the pre-load of the strut as well as increases the overall length of the strut assembly. The lift kit includes steel top mount strut spacers, rear coil spring mounts and custom-tuned NX2 Nitro series shocks.
