2003-2007 Ram HD 8" Long Arm Conversion Kit with FOX 2.0 Performance Shocks (BDS1741FS)

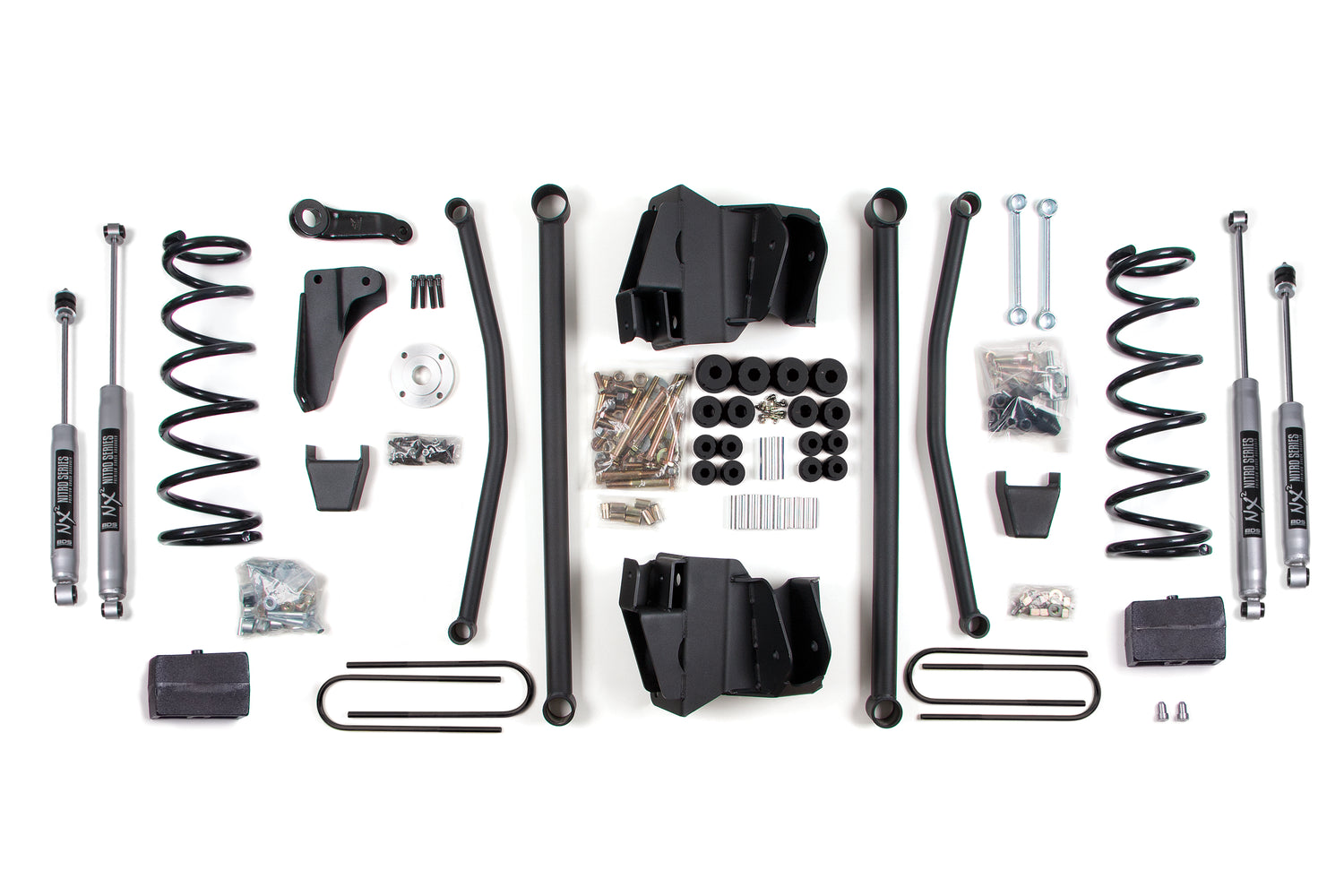

BDS Suspension built this long arm conversion lift kit to set your 2003-2007 diesel Dodge Ram 2500 and 3500 up right with 8" of lift and clears up to 38" tires. It comes with everything to do the job: tubular long control arms with relocation brackets, progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction up front, a rear lift block, longer u-bolts out back, and a matched set of FOX 2.0 Performance Series shocks.

The long lower control arms reduce caster change through wheel travel for a more controlled feel on and off road, and the system keeps the factory arm triangulation for added stability.

Features

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 5 inch

Notes

• Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require UBT4068.
• Rear lift options will not fit dually applications.
• If driveline vibration occurs, order either transfer case drop. Note: 122606 transfer case drop kit will only replace the OE bracket 52121938AA
• Additional front driveline modification may be required.
• Exhaust modification will be required for dual rear shock kit 122009.
• 2500 Gas models will require modification to the front exhaust crossover pipe on driver side for proper clearance when a transfer case indexing ring kit is installed
• If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2 inch-1-5/8 inch you will need to add part BDS082404 to your kit.

Includes

• BDS012516, Dodge 5 inch Rear Block Kit w/4 inch (UPC 658848612598)
• BDS012801, Dodge Control Arm Mounts (UPC 658848612840)
• BDS012802, Dodge Control Arm Box Kit (UPC 658848612857)
• BDS012805, 03-07 Dodge Ram Long Arm Box Kit (UPC 658848612888)
• BDS032801, Dodge 8in Coil spring (UPC 658848616442)
• BDS122802, 03-12 Dodge 2500 T-Case Index Kit (Man) (UPC 658848619818)
• FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
