2003-2007 Ram HD 8" Long Arm Conversion Kit with NX2 Nitro Shocks (BDS656H)

BDS Suspension 8" long-arm conversion lift kit for the 2003-2007 Dodge Ram 2500/3500 diesel-powered truck, with clearance for up to 38" tires. Long tubular lower control arms reduce caster change through wheel travel for a more controlled feel and retain factory arm triangulation for stability. Up front it runs diesel-specific progressive-rate Pro-Ride coil springs, all four control arms, a forged drop pitman arm and track bar bracket for steering correction, bump stops, and sway bar links. The rear uses heavy duty cast steel blocks, longer u-bolts, and a matched set of NX2 Nitro shocks.

Features

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 Nitro Series nitrogen-charged shocks tuned for improved on- and off-road ride
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Notes

• (Trimming may be required)
• 38 x 13.5 with 17 x 9 and 4.5 in. Backspace
• The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

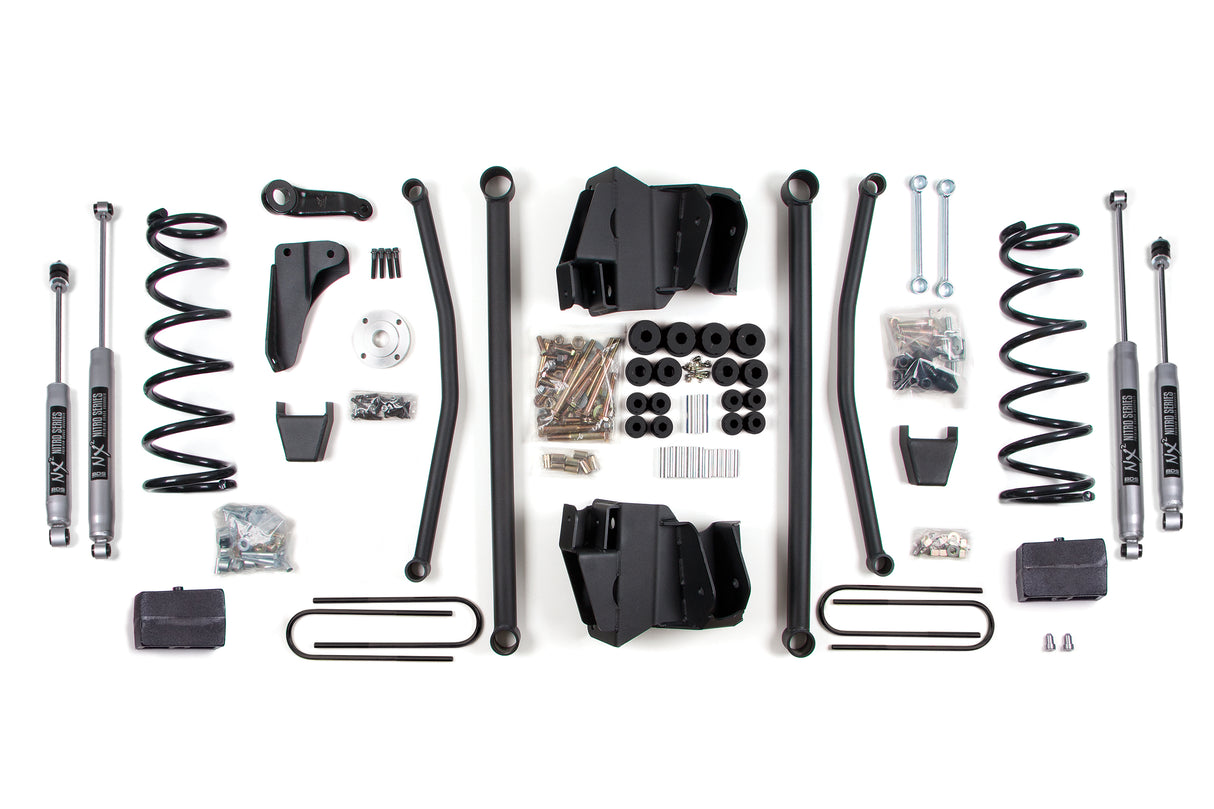

Includes

• BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring (UPC 658848611294)
• BDS012801, Dodge Control Arm Mounts (UPC 658848612840)
• BDS012802, Dodge Control Arm Box Kit (UPC 658848612857)
• BDS012805, 03-07 Dodge Ram Long Arm Box Kit (UPC 658848612888)
• BDS032801, Dodge 8in Coil spring (UPC 658848616442)
• BDS122801, 03-10 Ram T-Case Indexing kit (UPC 658848619801)
• BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2 (UPC 711745609617)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
• UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt (UPC 711745613003)
