2003-2008 Ram HD 4x4 Front End Upgrade Kit - Y Style (CS-DFEU-03-Y)

The Carli Front End Upgrade Kit targets the three factory components most commonly responsible for steering instability on 2003-2008 Ram HDs: the track bar, the steering stabilizer, and the ball joints. Engineered as a complete solution for Y-Style steering trucks, this kit replaces those weak points with serviceable, far more robust alternatives that hold up whether you are running stock suspension or 37" tires on a full Carli lift system.

Together, these components eliminate the root cause of Ram HD death wobble and put a noticeable sharpening on every steering input. The track bar, stabilizer, ball joints, and hardware ship as a bolt-on package, no fabrication required.

Features

• Designed exclusively for Y-Style steering 2003-2008 Ram 2500/3500 4x4 trucks

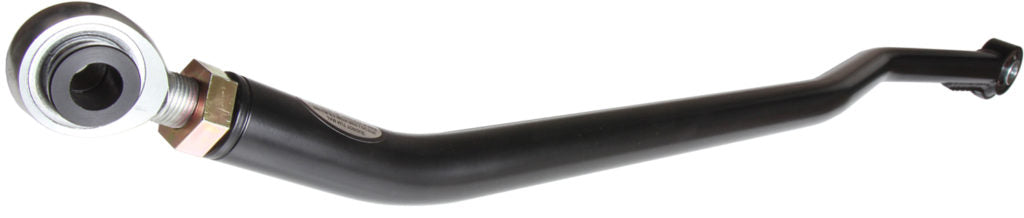

• Carli Adjustable Track Bar: 1.5" OD x 3/8" wall tube, 7/8" FK chromoly heim joint at the axle, proprietary composite-encased uniball at the frame

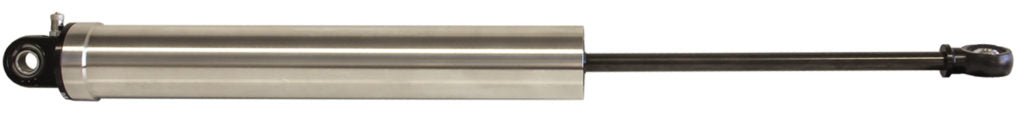

• Low Mount Stainless Steering Stabilizer: rebuildable IFP design, stainless body with billet aluminum rod ends, hardened black nitride shaft, adjustable 70-200psi nitrogen chamber

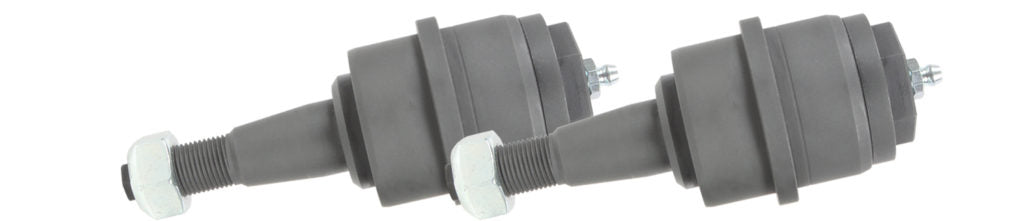

• Heavy Duty Upper Ball Joints: hardened two-tier design with greaseable internal ports and 100% more surface area than OEM
• Heavy Duty Lower Ball Joints: no plastic liner, burnishes to a mirror finish as it breaks in, lifetime serviceable with regular grease
• Bolt-on installation, no fabrication required
• Eliminates Ram HD death wobble at the source

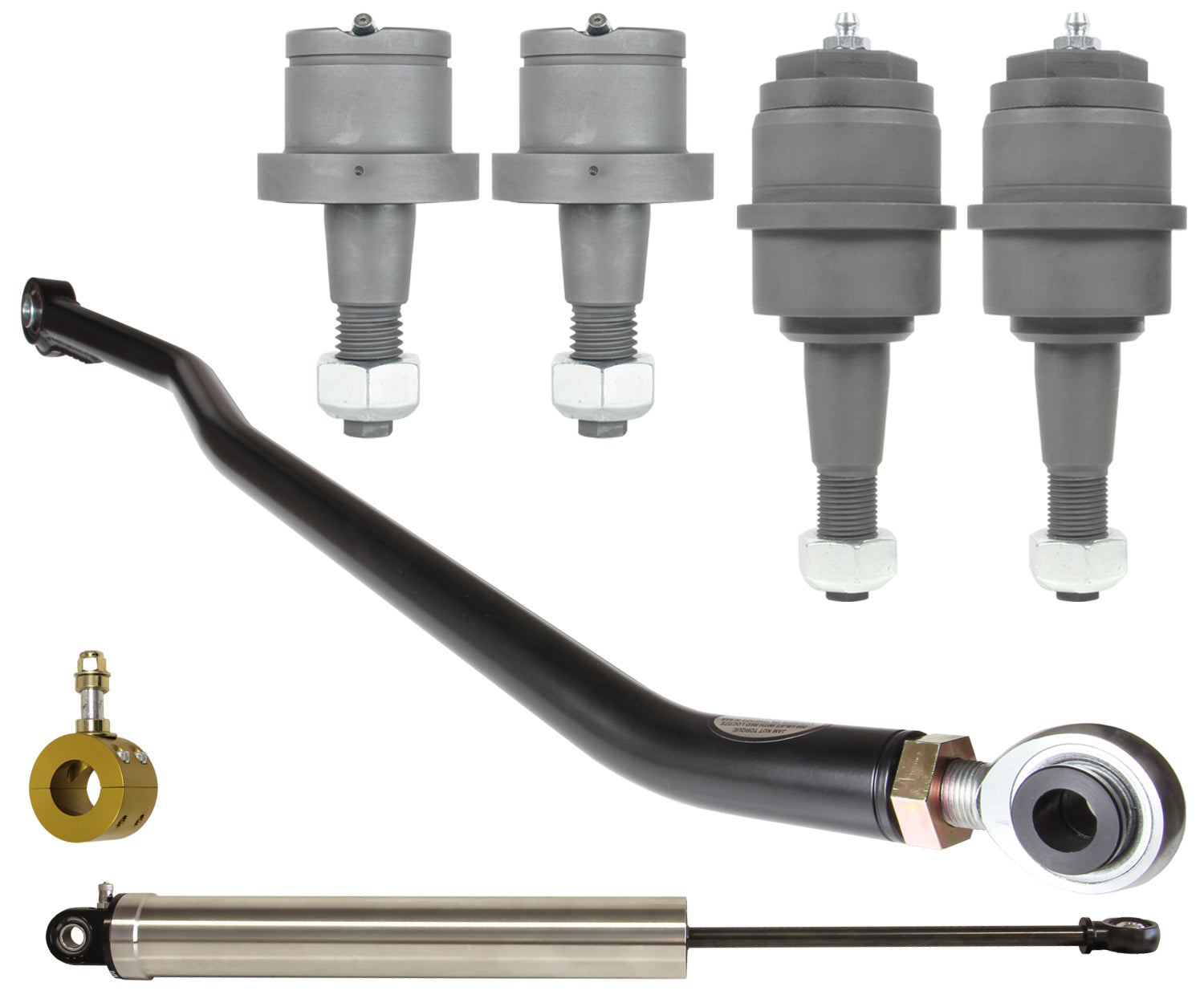

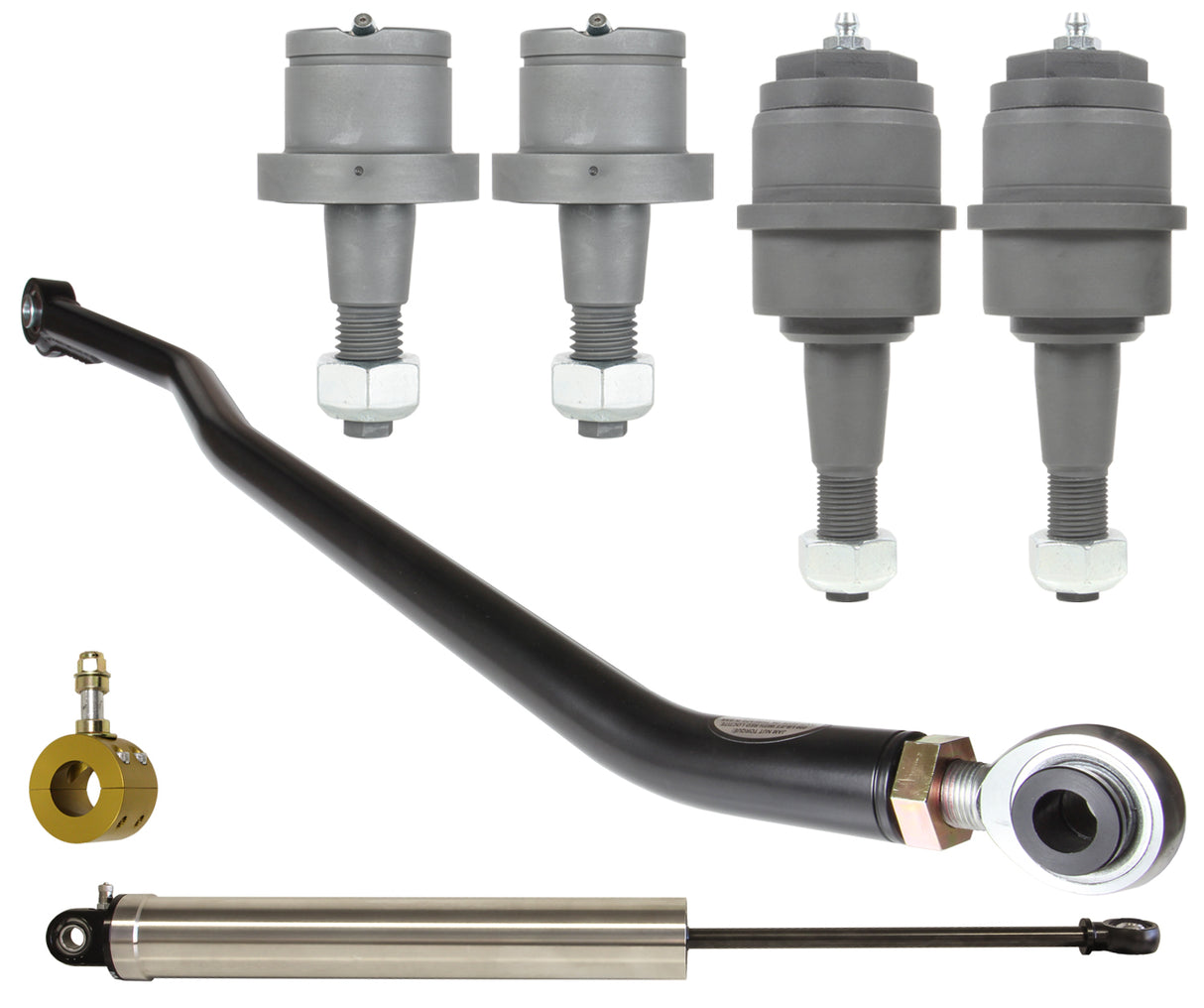

Kit Contents

• CS-DFEU-Y - Front End Upgrade Kit (Y-Style)
• CS-DLMSS-T - Stainless Low Mount Steering Stabilizer
• CS-DBJP - Heavy Duty Ball Joint Package
• CS-DATB-03 - Adjustable Track Bar
