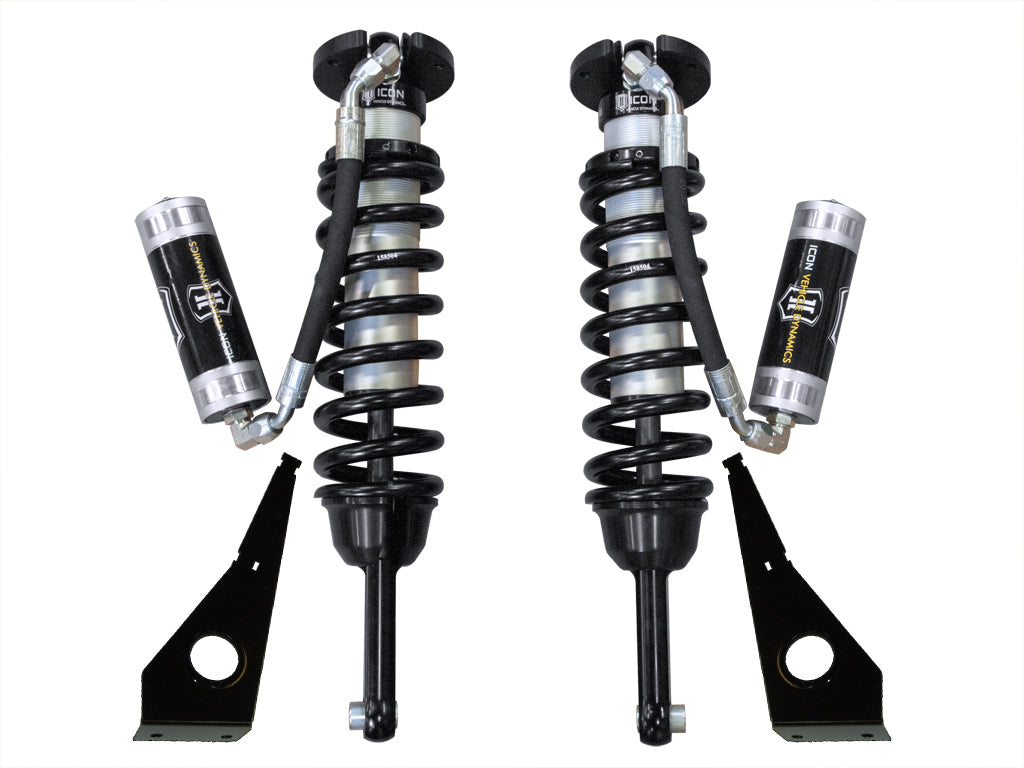

2003-2009 4Runner 2.5 RR Coilover Kit (ICO58740)

Drop in serious suspension performance on your 2003-2009 4Runner with ICON 2.5 Series coilovers. Remote reservoirs keep temps down and damping consistent when you push hard.

Features

• Adjustable ride height from 0" - 3"
• Race shock piston with flutter stack compression valving
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets
• Cad-plated threaded body / Extreme Weather Plating Option Available
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearing
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• Mounting Bracket Orients Reservoir for Optimum Tire Clearance
• External Reservoir Ensures Maximum Cooling
• Chrome-silicon spring

Wheel & Tire Recommendations

• 8.5" wide wheel with 4.75" backspace
• Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Manufacturer Description

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.
