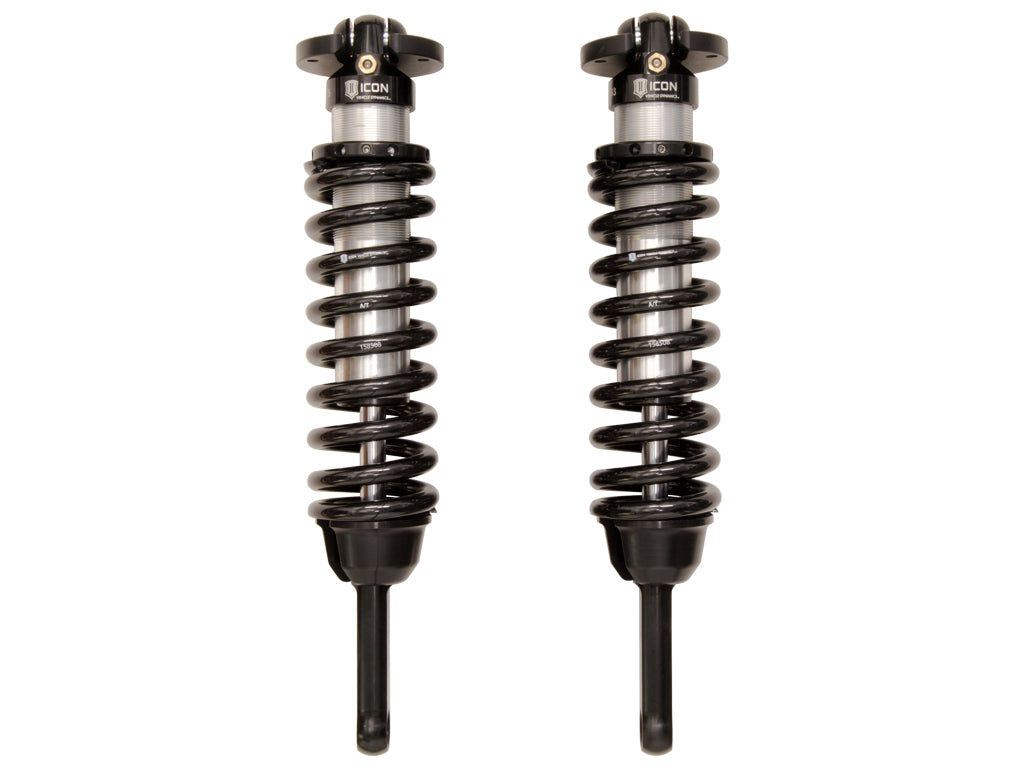

2003-2009 FJ 4Runner 2.5 Front Coilover Kit (ICO58645-700)

Drop in serious suspension performance on your 2003-2009 4Runner with ICON 2.5 Series coilovers.

Features

• Adjustable coilovers yield 0-3.5" of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
• Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Important Notes

• Aftermarket front upper control arms required for installation
• 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.

Manufacturer Description

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
