2003-2009 Ram HD 4x4 Diesel 3.0" Lift Dominator Long Arm System (CS-DD30-03-D-LA)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$15,049.44 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Custom Tuned King 3.0 Remote Reservoir Shocks. Loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Torsion Sway Bar

Required

Rear Leaf Options

Required

Leaf spring Shackle

Optional

Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Long Travel Bags

Optional

Steering Stabilizer

Optional

Fabricated Rear Shock Mounts

Optional

Axle Truss

Optional

Front Hydraulic Bump Stops

Optional

Subtotal

Part Specs
Warranty
Description

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Custom Tuned King 3.0 Remote Reservoir Shocks. Loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Part Number: CS-DD30-03-D-LA

Features

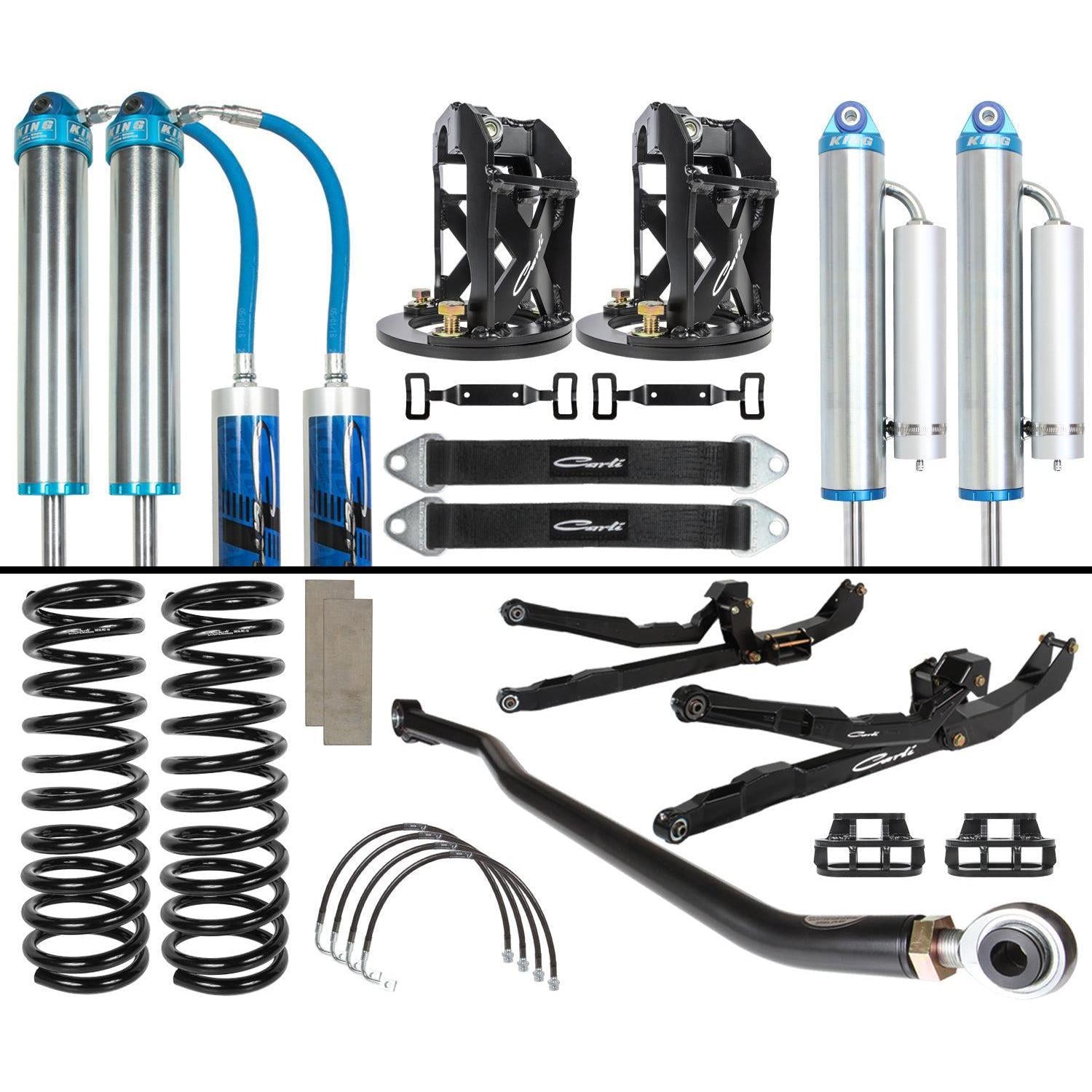

  • The Carli Dominator Long Arm system utilizes Carli-tuned King 3.0 shocks
  • Front and rear shock packages, long arm system, front bump drops, braided brake lines, multi-rate coil springs, fabricated shock towers, rear crossmember gusset, and adjustable track bar
  • Allows for 12" of front suspension travel and 13" rear
Notes
  • 2003-07 Rams MUST convert to factory "T-Style" steering!
  • This system requires a Torsion Sway Bar and Full Progressive Leaf Springs to function properly
  • The rear crossmember gusset requires welding

Warranty
Limited 1 (One) Year Warranty
