2003-2012 Ram HD 6" Lift Radius Arm System (Long) (CS-DRA6-03-L)

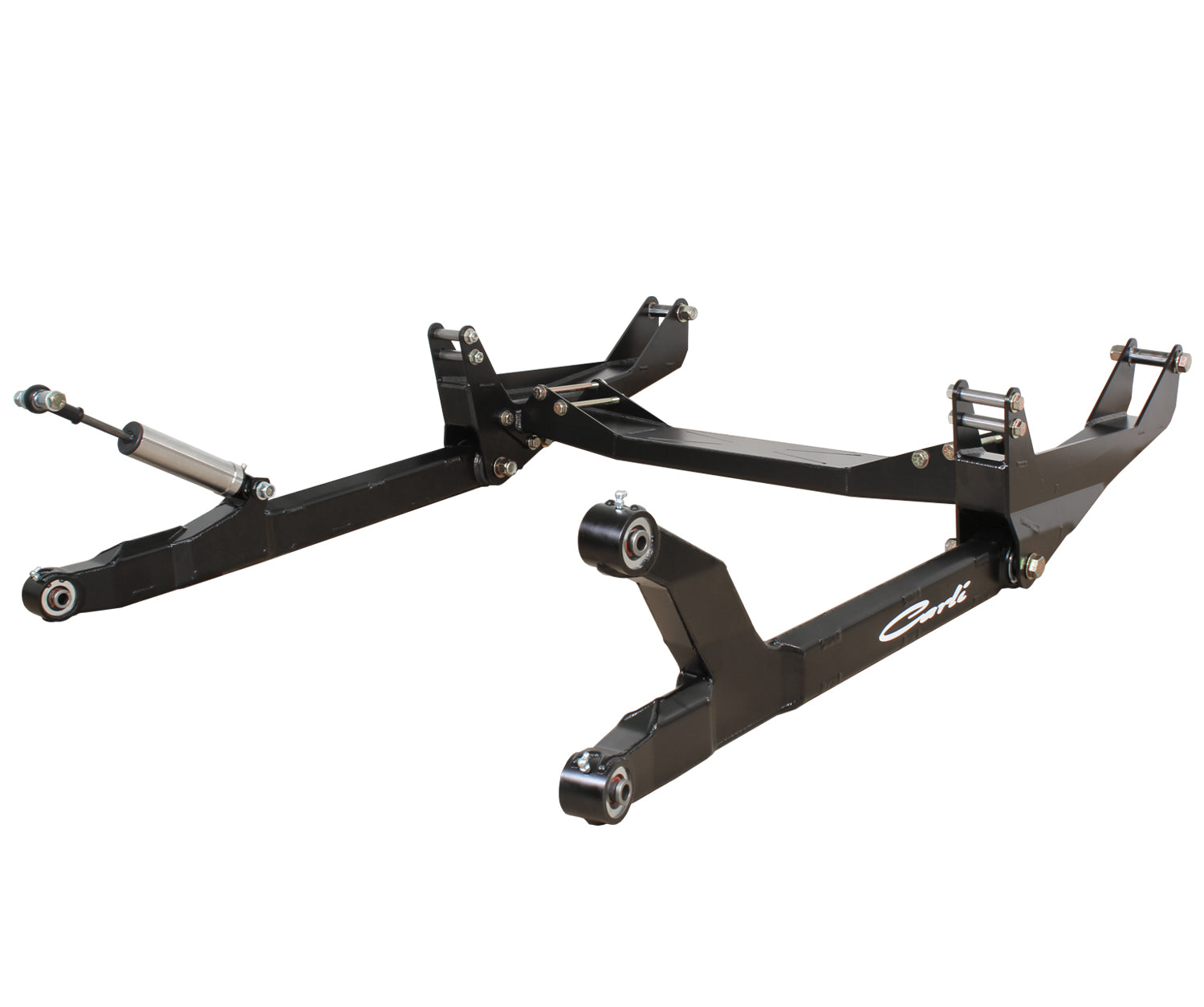

Convert your 2003-2012 Ram HD to a true 3-link long-arm front suspension. The Carli Radius Arm System replaces the factory radius arms with fabricated DOM-tubing arms, an HD 1-piece crossmember, and a driver-side axle-control shock that eliminates the bind and limited travel of the factory setup.

Designed around Carli's 6" lift platform for the longest service life and most articulation of any long-arm conversion on the market.

Features

• Fabricated 1-piece HD crossmember for unmatched strength
• 3/16" DOM construction with full-length 1/4" internal gussets
• Driver-side axle-control shock for zero-bind articulation
• Greasable, serviceable spherical bearings for long maintenance life
• Designed for 6" lift applications on 4x4 Ram HD chassis
• Includes Long crossmember (CS-DCM6-03-L), radius arm drop brackets (CS-DRA6-DROP-03), and radius arm hardware package (CS-DRAPKG-03)

Specifications

• Lift Height: 6"
• Material: DOM Steel
• Position: Front
• Warranty: Limited Lifetime
• Country of Origin: United States
