2003-2012 Ram HD Hydro-Pneumatic Bump Stops (CS-DHYDRO-03-F)

Description

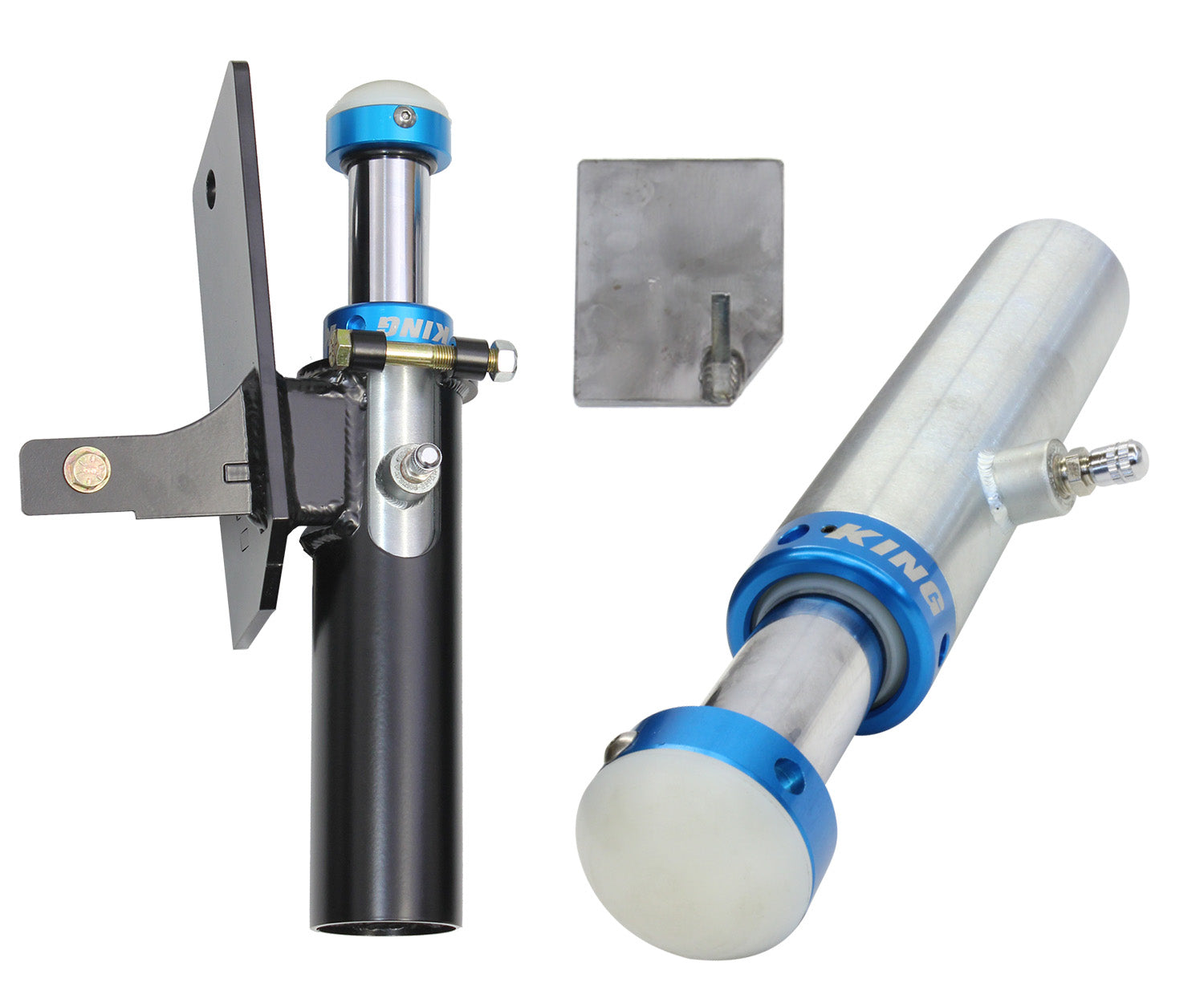

Carli Hydro-Pneumatic Bump Stops for the 2003-2012 Ram HD. These front bump stops use hydraulic fluid and nitrogen pressure to provide a progressive, controlled stop at the end of suspension compression travel. Far superior to rubber bump stops — these absorb energy progressively instead of harsh bottom-outs.

Features

• Hydro-pneumatic design for progressive energy absorption
• Eliminates harsh bottom-outs
• Far superior to factory rubber bump stops
• Front fitment
• Direct bolt-on installation

From Carli Suspension

This is the FIRST hydraulic bump stop on the market for a Dodge Ram. Carli’s front bump stop kit does not reduce wheel travel. Only the final 2.5 of travel will utilize the bump stops. The bump stops act as a secondary suspension system. This system was designed to protect your truck from those unforeseen hits when pushing the limits of the suspension. All of the energy used to compress the bump stop is dissipated as heat thus preventing the suspension from bottoming out , leaving everything still in place on your dash. Also, the rebound of the bump stop is designed to extend at a slower rate which will keep from forcing the axle back up, which would cause the suspension to bounce back. By slowing down the last couple of inches of compression travel, you reduce the amount of stored energy that needs to be controlled on the rebound side. This will help maintain control of the vehicle when off-roading at speed.
