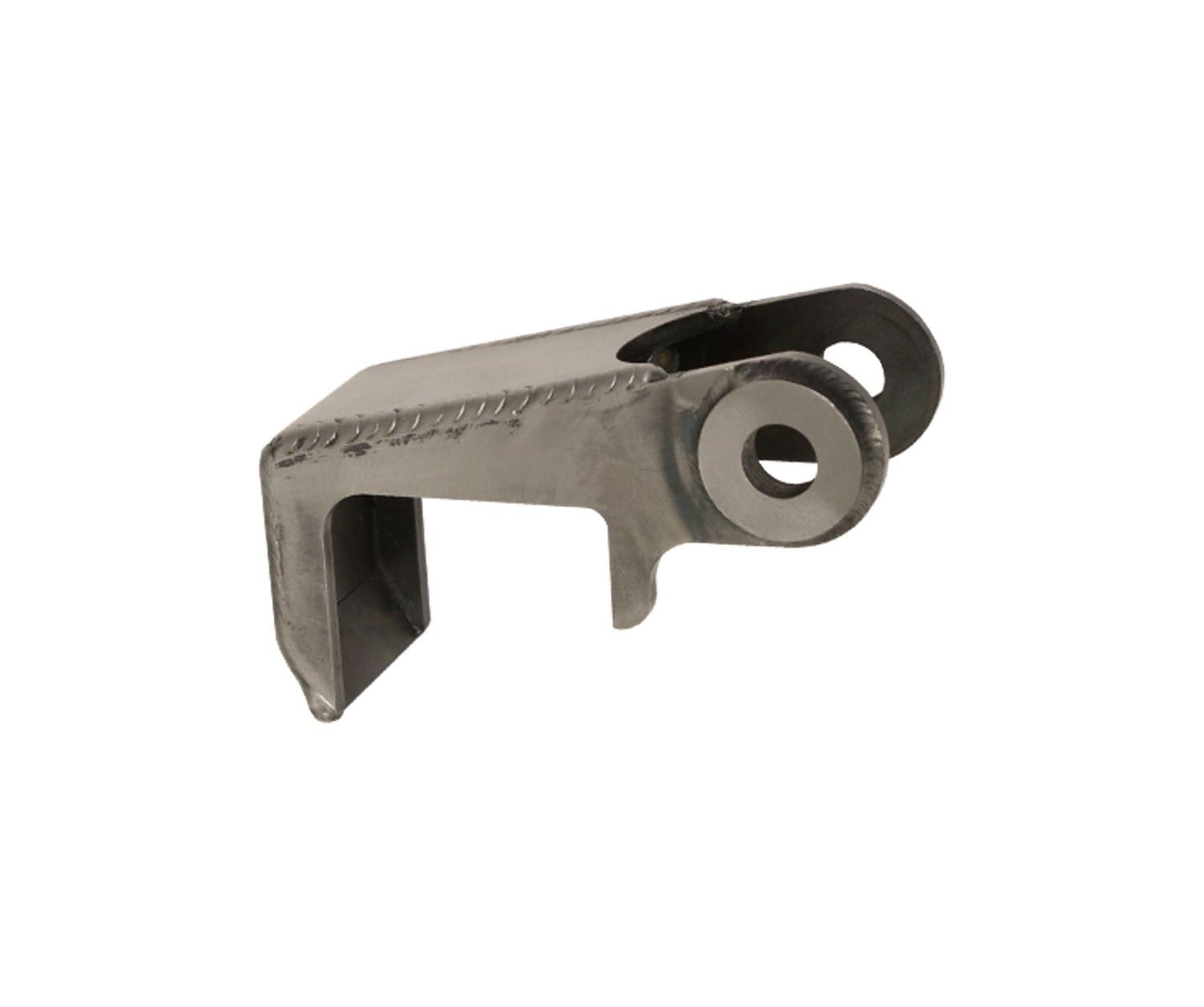

2003-2012 Ram HD Rear Shock Mount (Driver) (Diesel) (CS-DRSM-03-D)

Carli Rear Shock Mount (Driver Side) for 2003-2012 Ram HD Diesel. Fabricated reinforcement mount for the driver-side rear shock. Strengthens the factory mounting point for the demands of aftermarket shocks and off-road use.

Features

• Driver side rear shock mount
• Reinforced construction
• For Diesel applications
• Bolt-on installation

From Carli Suspension

The factory rear shock mounts are sufficient to 2.5″ remote reservoir shocks. Once valving starts to stack up or larger than 2.5″ shocks are installed, the driver’s side upper, rear shock mount’s inability to take a beating should be addressed. Fully Boxed and welded 3/16″ Cold-Rolled Steel Construction ensures the mount is stronger than the cross member to which you’ll be welding it. That said, triangulation of the Carli Driver shock mount/crossmember/frame rail is also recommended.

The passenger side shock mount has always proved sufficient but, removing the bed and prepping for weld is such a process, we designed and fabricated a matching mount to weld in on the passenger side for cheap insurance. This mount requires no additional triangulation or gusseting.
