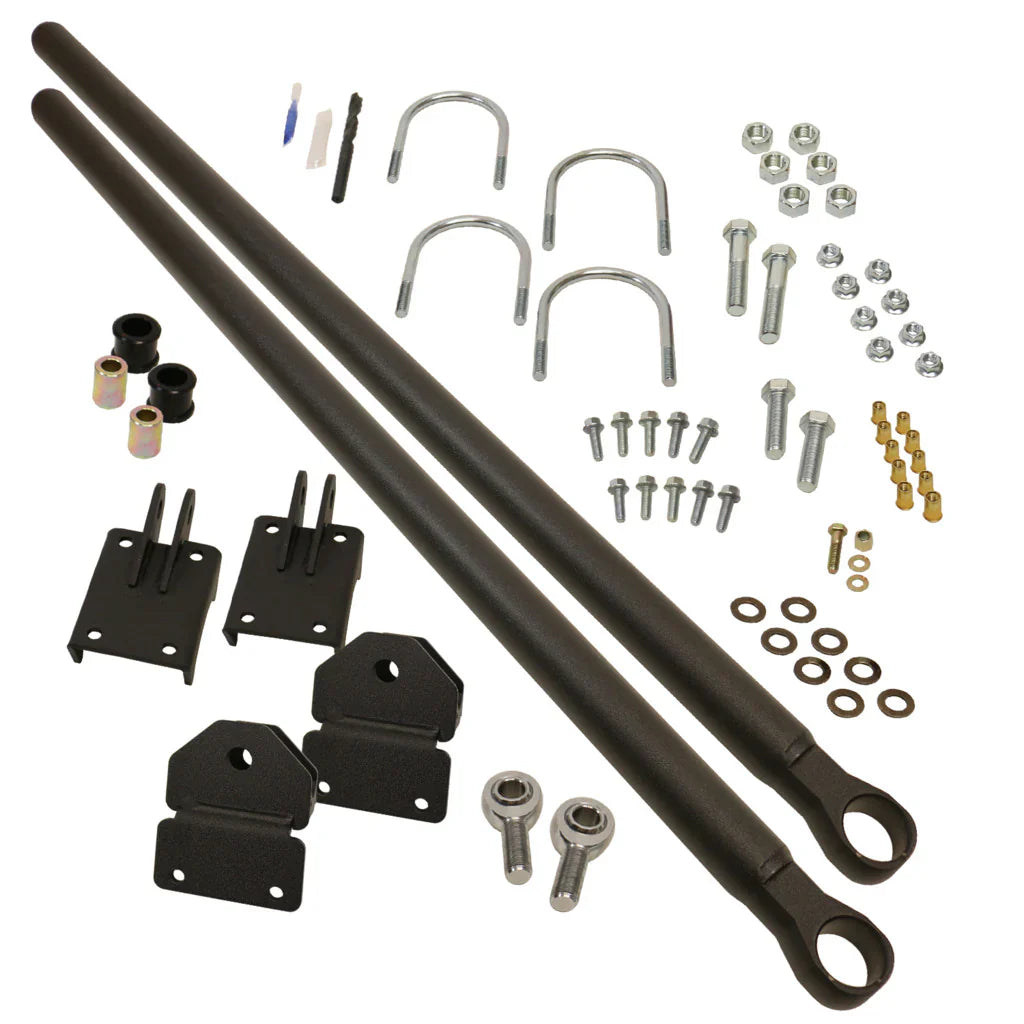

2003-2018 Ram HD w/o OEM Rear Airbags Traction Bars Kit (1032130)

A truck's power doesn't always make it to the road; when the rear axle is allowed to rotate, wheel hop and loss of traction can occur. The BD Diesel Traction Bar Kit is engineered to get that lost power to the ground by precisely following the original equipment manufacturer (OEM) spring travel sweep and axle rotation. This thoughtful engineering minimizes ride stiffness and ensures no adjustment is needed when pulling or hauling, making it an ideal upgrade for vehicles w/o OEM Rear airbags. The bars are built to last with 2-inch OD tubing and the highest quality QA1 heavy-duty American-made rod ends, rated for 28,000 lbs each. Polyurethane bushings provide direct loading without excessive movement, unlike spring-loaded designs. This kit prevents wheel hop, axle wrap, and large angles on U-joints, making it an essential upgrade for towing, lifting, larger tires, high horsepower, competitive pulling, or drag racing.

Features

• Bolt-on installation; no welding required for most applications
• 2-inch OD tube construction
• Uses high-quality QA1 3/4-inch heavy duty American rod ends rated for 28,000lbs each
• Prevents wheel hop, axle wrap, and large angles on U-joints
• No adjustment is needed when pulling or hauling
• Polyurethane bushings provide direct loading without excessive movement
• Optimized to arc in the same path the axle travels for a smooth ride
• Designed for trucks ranging from a 6-inch lift all the way to a 2-inch drop
• Includes all necessary hardware and a Rivet-nut specific drill bit and tool

Specs

• Length (Eye-to-Eye): 54 inches
• Tube Diameter: 2-inch OD
• Rod End Rating: 28,000 lbs each
• Bushings: Polyurethane
• Installation Time: 4 Hours

Compatibility Notes

• Fits Dodge Cummins 2500 and 3500 models from 2003 to 2018.
• Will not fit Dodge 2500 models equipped with coil sprung rear suspension.
• Designed for pick-up truck applications; fitment cannot be guaranteed on all Cab & Chassis models.
• 2010-2019 crew cab long box trucks require cutting and welding of the frame bracket.
• 2014-2019 trucks with OEM air bags require cutting and welding of the axle bracket.
• It is suggested in Heavy Duty applications to weld front mounts to frame.

Notes

• The product is backed by a 12-month, 24,000-mile warranty on parts.
• A Limited Lifetime Warranty is available with registration.
