2003-2020 F-150 Front 1.5" Leveling Kit (66-2052)

The ReadyLIFT 1.5-inch Leveling Kit is precision CNC-machined from billet Aluminum and is designed to level the front end of trucks that have a different factory rake, such as the FX4 versions of the F-150. This kit provides 1.5 inches of front leveling lift via a strut extension. It is engineered to maintain the smooth OEM ride and drivability while providing enough lift to accommodate larger tires.

Features

• Provides 1.5 inches of front leveling lift.
• CNC-machined billet aluminum strut extensions.
• Engineered to level the front stance of trucks with a different factory rake.
• Will not work with factory electronically controlled shocks.

Notes

• This kit will NOT work with factory electronically controlled shocks.
• The spacer only measures 1 inch thick, but due to the geometry of the independent suspension, it yields 1.5 inches of lift.

Tire Fitment

• Maximum tire diameter is 33 inches.
• Recommended fitment is 33x11.50 for no rub on a 9-inch wide wheel with +12 offset.
• Recommended sizes include 18-inch (295/65R18), 20-inch (285/60R20), and 22-inch (285/50R22).

Specs

• Front Lift: 1.5 inches (maximum)
• Maximum Tire Diameter: 33 inches
• Spacer Material: CNC machined billet aluminum

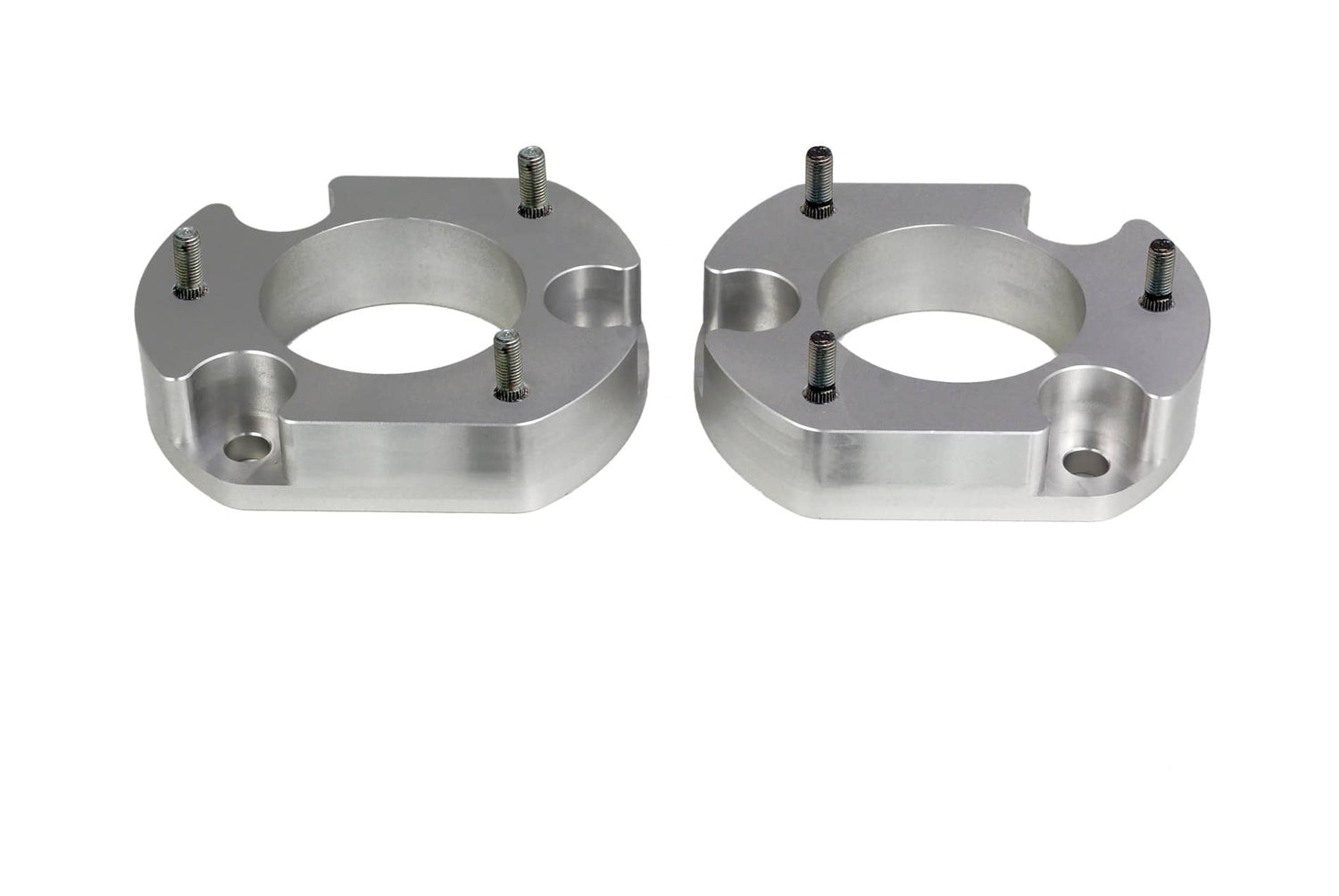

• Kit Contents: One set of CNC machined billet aluminum 1.5-inch lift front strut extensions and all necessary hardware.
