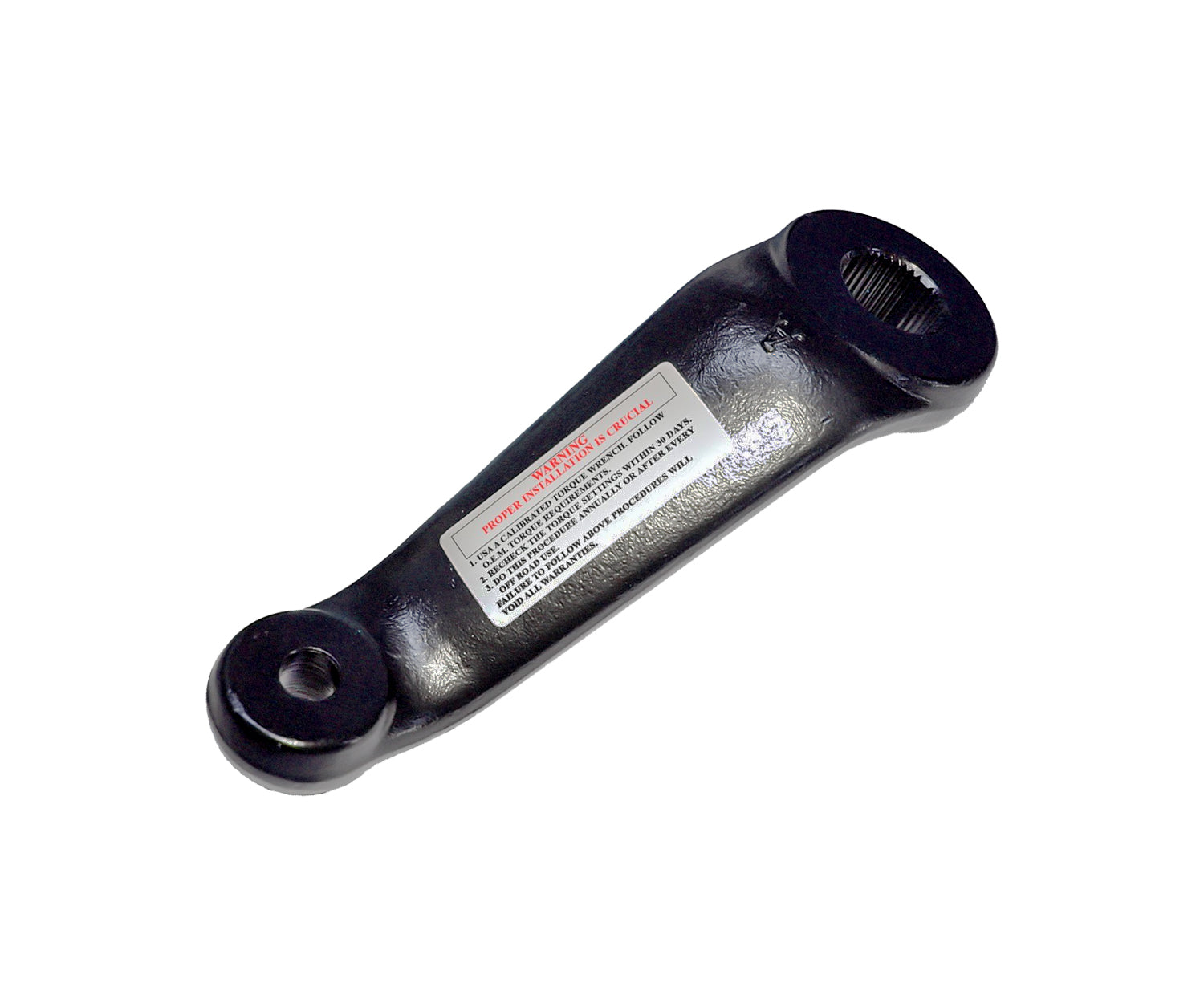

2009-2012 Ram HD Extreme Duty Pitman Arm (CS-DPITMAN-09)

Carli Extreme Duty Pitman Arm for 2003-2024 Ram HD. Stronger, more precise replacement for the factory pitman arm. Eliminates steering slop and strengthens the steering system on lifted builds.

Key Features

• Extreme duty construction
• Multi-generation Ram HD fitment
• Eliminates steering slop
• Direct replacement

From Carli Suspension

We sampled every available pitman arm on the market as our quantities of 6″ suspension systems sold wouldn’t justify our own pitman arm project. In our findings, the best readily-available pitman arm to correct steering geometry (to match Carli’s Track Bar Drop Bracket) was the Forged Fabtech Motorsports unit.

A drop pitman arm corrects steering geometry to match the dropped suspension geometry; in our case, via the Carli Track Bar and Track Bar Drop Bracket. This combination minimizes bump-steer while ensuring the drag link adjustment collar thread engagement and tie-rod end effective range of motion are within spec at the lifted height.

We carry both options:

CS-DPITMAN-03: This unit fits ONLY 2003-2008 with smaller sector shaft.
CS-DPITMAN-09: This unit fits 2009-2012 with larger sector shaft as well as the 2003-08 with the upgraded 6-bolt Mopar Box.
