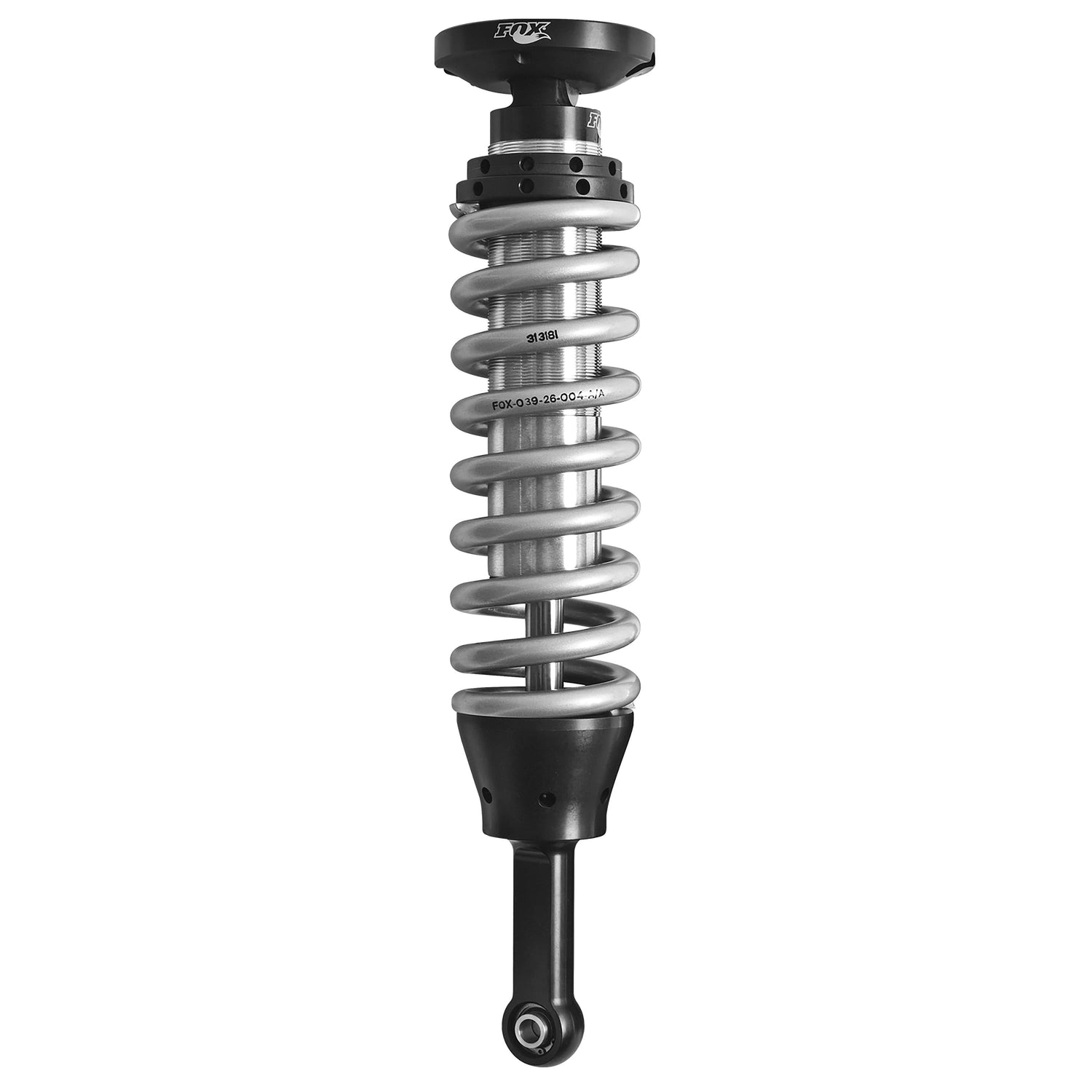

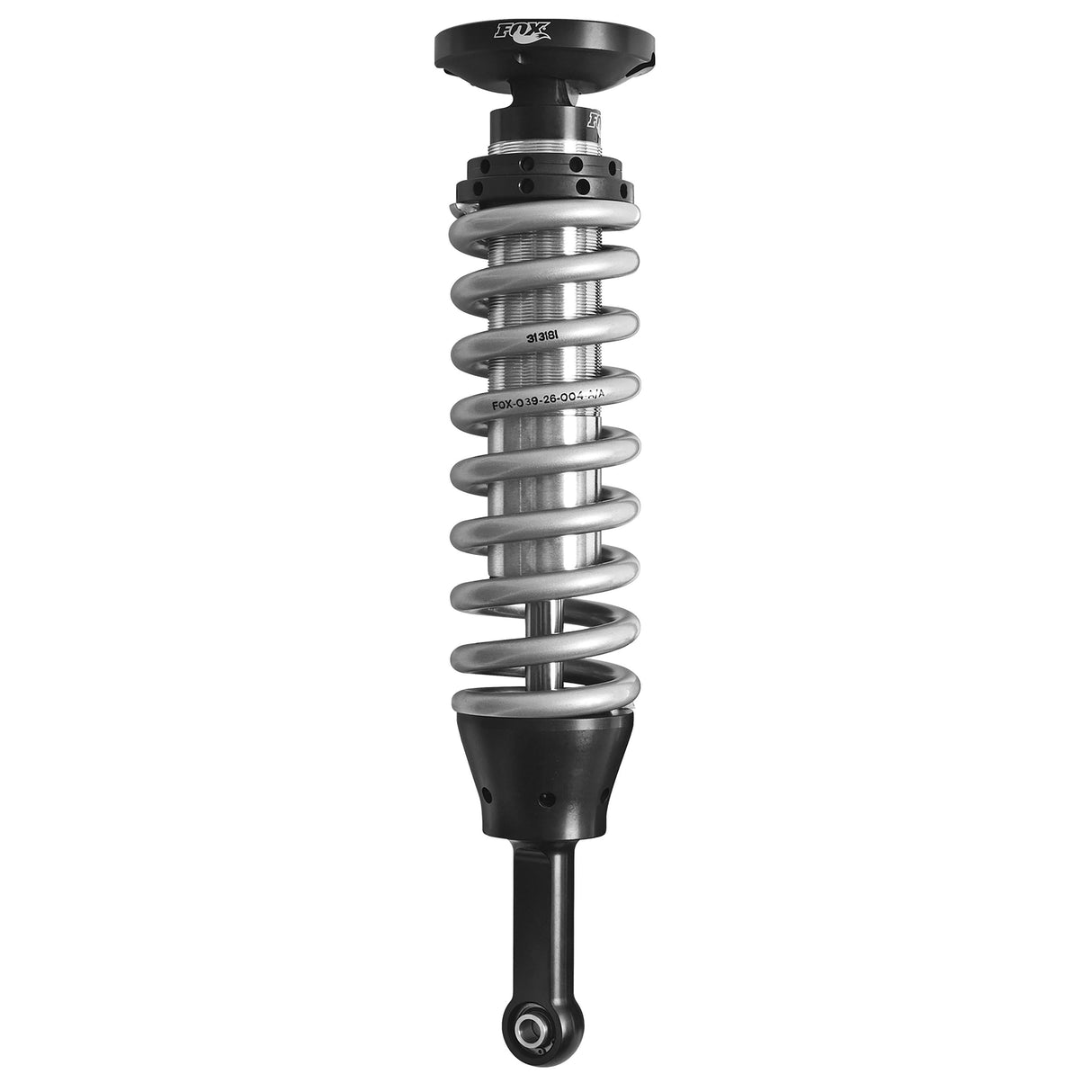

2005-2023 Tacoma/4Runner 2.5 Series 0-3" Lift Front Coilover (883-02-025)

Description

Note: Requires Upper Control Arm

These bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain and suspend the vehicle's weight. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box. Experience the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

Part Number: 883-02-025

Features

• Requires Upper Control Arm
• Performance Tuned For Vehicle Specific Application

• IFP Separates Oil From High-Pressure Nitrogen Gas

• Zinc-plated and double-clear coated for a long-lasting finish
• Reservoir Internal IFP mono-tube Reservoir design separates shock oil from the high-pressure nitrogen
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hardened NitroSteel Steel Carbon Shafts
• 6061-T6 hard-anodized, high-flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length: 22.93"
• Compressed Length: 18.04"
• Top Mount: TM
• Bottom Mount: Eyelet
• Travel: 4.89"
• Front Lift Height: 0-3"
