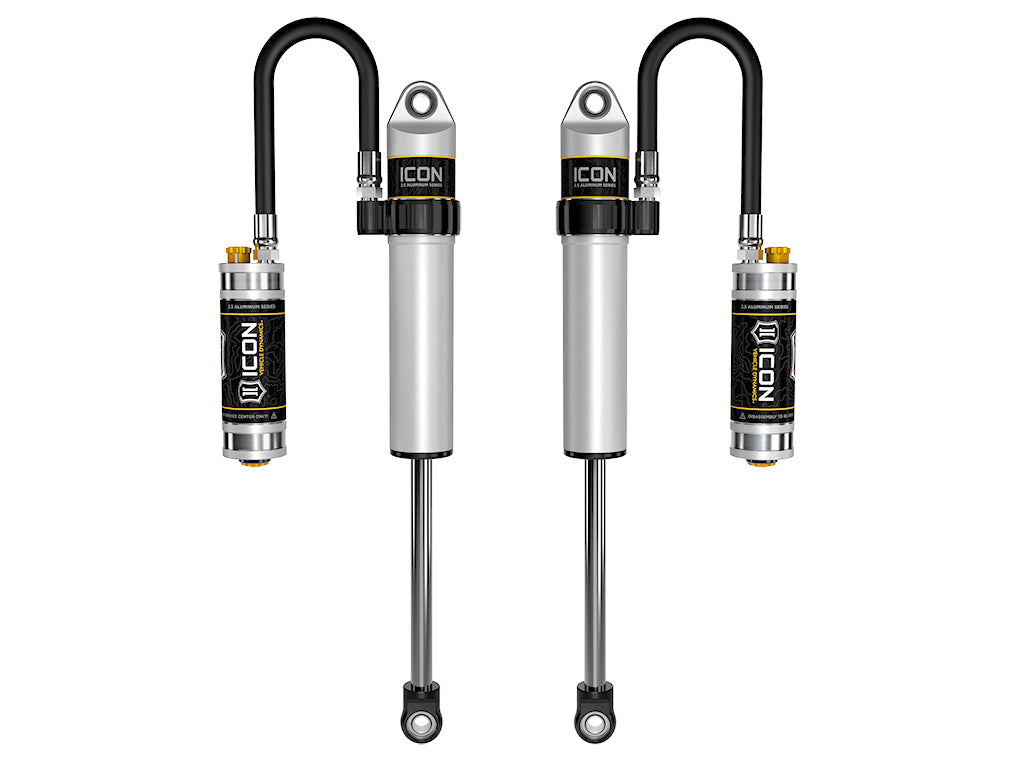

2003-2024 Tacoma 2.5 RR CDCV Front Shock Kit (ICO59706CP)

Upgrade the ride on your 2003-2024 Tacoma with ICON 2.5 Series shocks. Vehicle-specific valving delivers better damping, less body roll, and a more planted feel on any surface. Remote reservoirs keep operating temps low during extended off-road sessions. CDCV lets you adjust compression damping externally for the perfect setup.

Features

• Nitrogen charged monotube design with remote reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• 6061 aircraft grade aluminum CNC machined components
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• ICON’s internal “Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• PTFE lined spherical bearings and application specific mounting hardware
• 100% Rebuildable
• 100% Revalveable

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
• ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
• Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• Does not fit KDSS equipped vehicles
• Will not fit 2WD Tacoma with 5 wheel lug studs
• Also requires ICON S2 Secondary Shock Hoop Kit and applicable LCA Skid Plate Kit or ICON LCA Kit to complete system
• May not be compatible with other manufacturer's secondary shock hoops or LCA kits

Manufacturer Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
