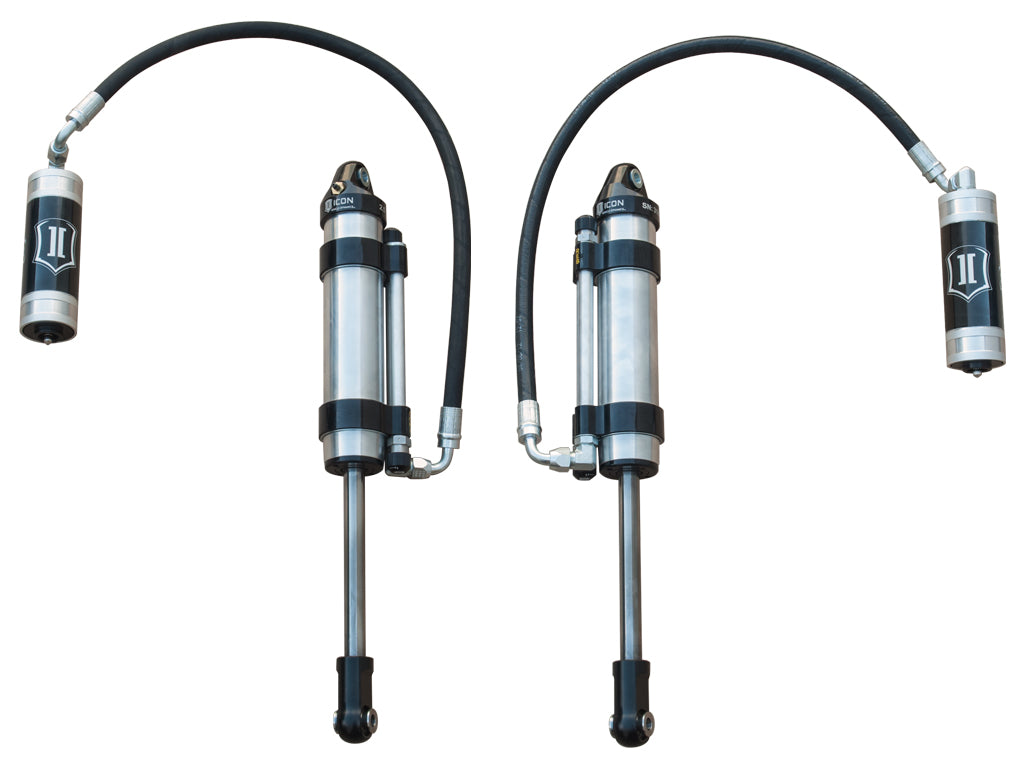

2003-2024 Tacoma 2.5 RR Front Shock Kit (ICO59906P)

Upgrade the ride on your 2003-2024 Tacoma with ICON 2.5 Series shocks. Vehicle-specific valving delivers better damping, less body roll, and a more planted feel on any surface. Remote reservoirs keep operating temps low during extended off-road sessions.

Features

• ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
• Bypass tubes are replaceable in the event of damage
• Internal “Bump Zone" increases damping force to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
• ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
• Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• Does not fit KDSS equipped vehicles
• Will not fit 2WD Tacoma with 5 wheel lug studs

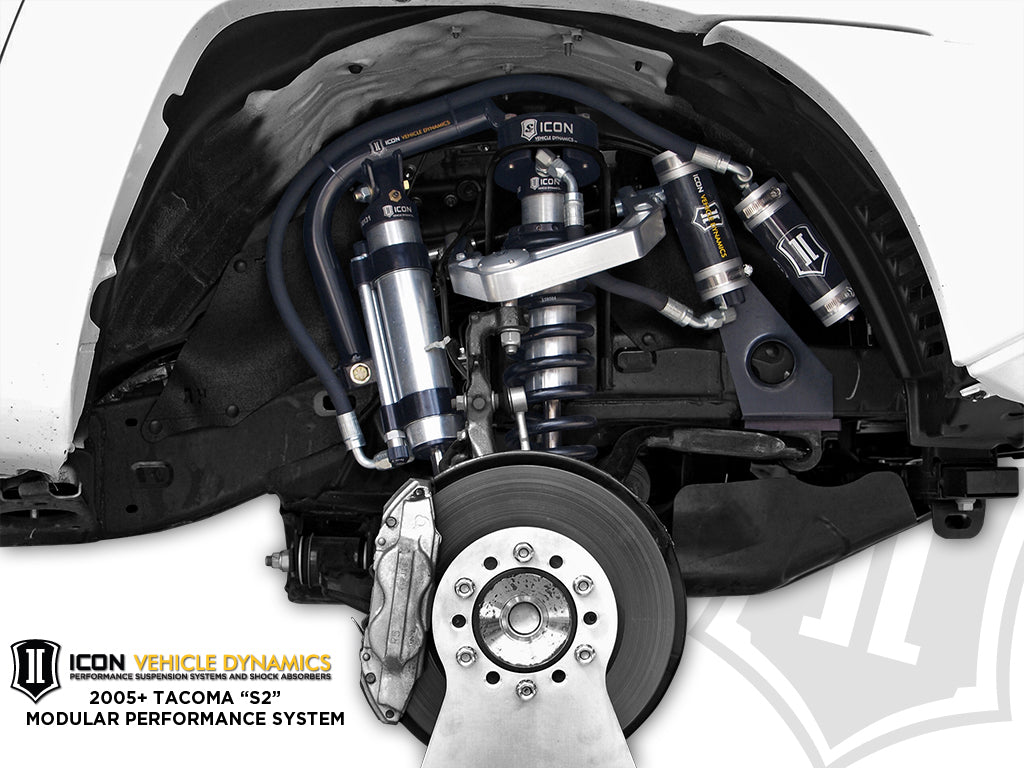

• Also requires ICON S2 Secondary Shock Hoop Kit and applicable LCA Skid Plate Kit or ICON LCA Kit to complete system
• May not be compatible with other manufacturer's secondary shock hoops or LCA kits

Manufacturer Description

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone" that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
