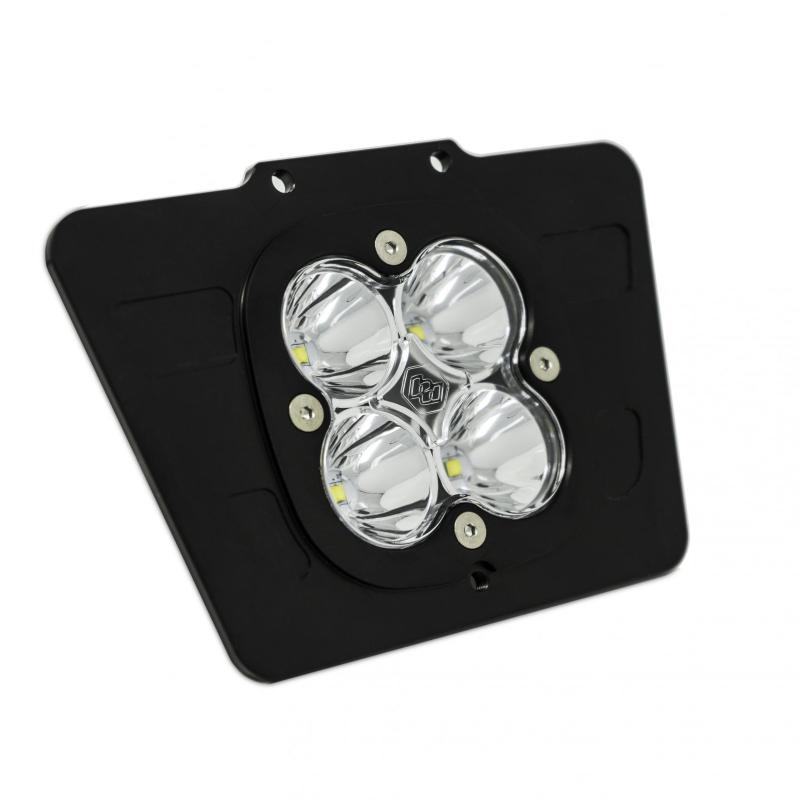

2004-2007 CFR X Squadron Sport A/C Headlight Kit (BAJ557071AC)

The Honda Squadron Sport A/C Headlight Kit is a purpose-built LED upgrade designed specifically for the 2004-2007 Honda CRF250X and 2005-2007 CRF450X models. This kit allows riders to replace the factory halogen lighting with a significantly more powerful 3,162 lumen system without requiring a complex D/C electrical conversion. By utilizing the Driving/Combo pattern, the kit provides a highly effective blend of 42-degree wide cornering optics for technical trail navigation and 9-degree spot optics for high-speed distance visibility. This direct-fit solution ensures that classic CRF models can maintain their iconic look while benefiting from modern, race-proven illumination.

Features

• Plug-and-play integration designed specifically for select 2004-2007 Honda CRF engine architectures.
• Driving/Combo beam pattern delivers a versatile spread for both peripheral and long-range lighting.
• ClearView optics system ensures maximum light output is projected with precision and clarity.
• MoistureBlock technology protects internal components from water and dust intrusion, even in submerged conditions.
• CopperDrive thermal management allows the LEDs to run at 100 percent power while maintaining board stability.
• 5000K daylight color temperature reduces rider fatigue and provides more accurate terrain feedback.

Specifications

• Brightness: 3,162 Lumens
• Wattage: 30 Watts
• Amperage: 2.2 Amps
• LED Life Expectancy: 49,930 Hours
• Housing Material: Powder Coated Cast Aluminum
• Bezel Material: Billet Machined Aluminum
• Lens Material: Hard Coated Polycarbonate
• Hardware Material: Stainless Steel

Notes

• Exceeds MIL-STD810G standards for vibration, mechanical shock, and thermal cycling.
• IP69K certified for extreme weather resistance and high-pressure washdown capability.
• IK10 compliant for superior resistance to high-energy impacts from trail debris.
• Specifically engineered for A/C powered systems found on early CRF-X models.
