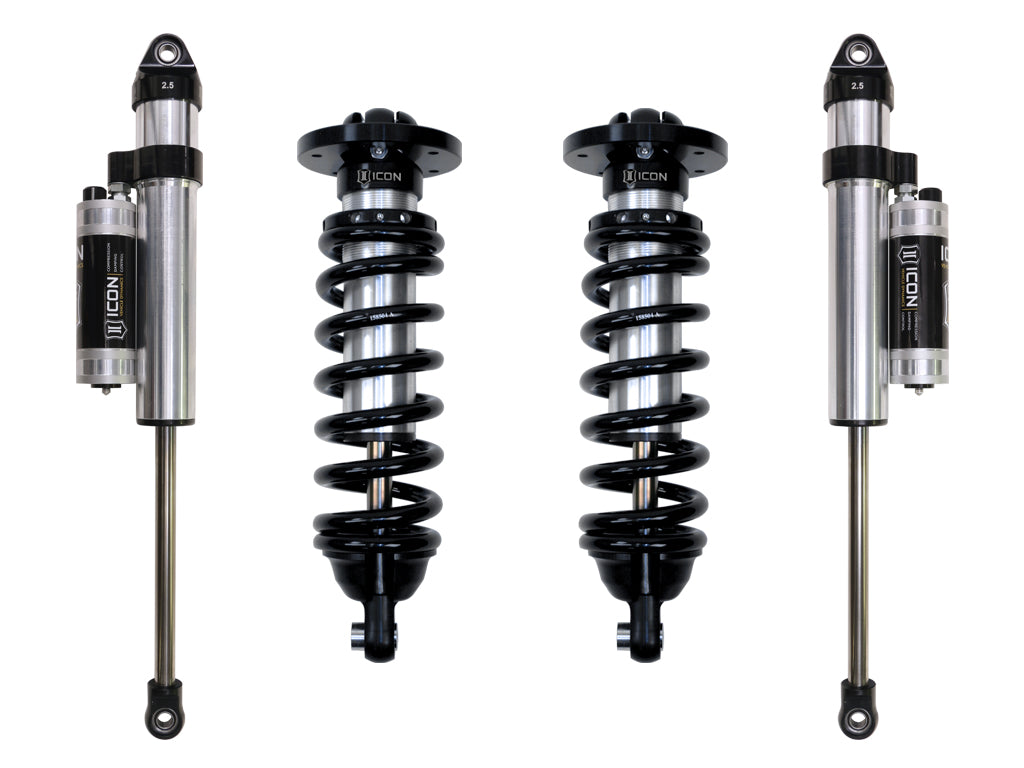

2004-2015 Titan Lift Kit (ICOK83003)

Level up your 2004-2015 Titan with this complete ICON suspension system. 0-3" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Fits 2WD and 4WD applications
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from 0-3" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• ICON CDC Valve allows quick and easy end user compression adjustability
• 100% bolt-on system means no drilling, cutting, or welding necessary for install

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Ships in multiple boxes

Manufacturer Description

ICON Vehicle Dynamics 2004-2015 Nissan Titan suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel" through the range of travel. These coilovers are also height adjustable from 0-3" of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear and ICON's CDC (Compression Damping Control) Valve allows for end user adjustable compression adjustment. The ICON Vehicle Dynamics 2004-2015 Nissan Titan Stage 3 suspension system is an excellent choice for those drivers looking to drastically improve the capabilities of their pickup on the road as well as in the dirt.
