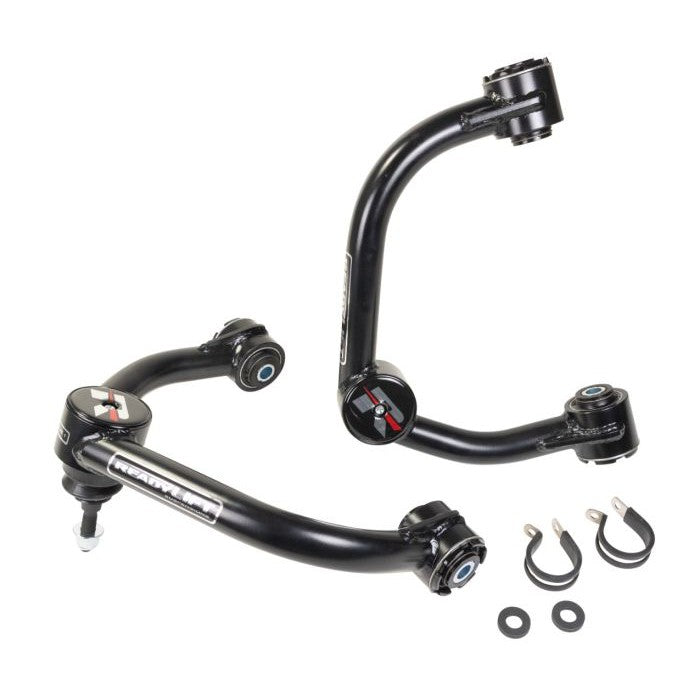

2004-2020 Ford F-150 Leveling/ Big Lift Upper Control Arms (67-21640)

Description

Part Number: 67-21640

Features

• Includes DOM tube steel upper control arms
• Designed for lift height of 0-3", & 6"
• Compatible with stock wheels and tires
• Terrain Control Technology maintenance-free pivot bushings
• Stock/Leveled & Big Lift trucks

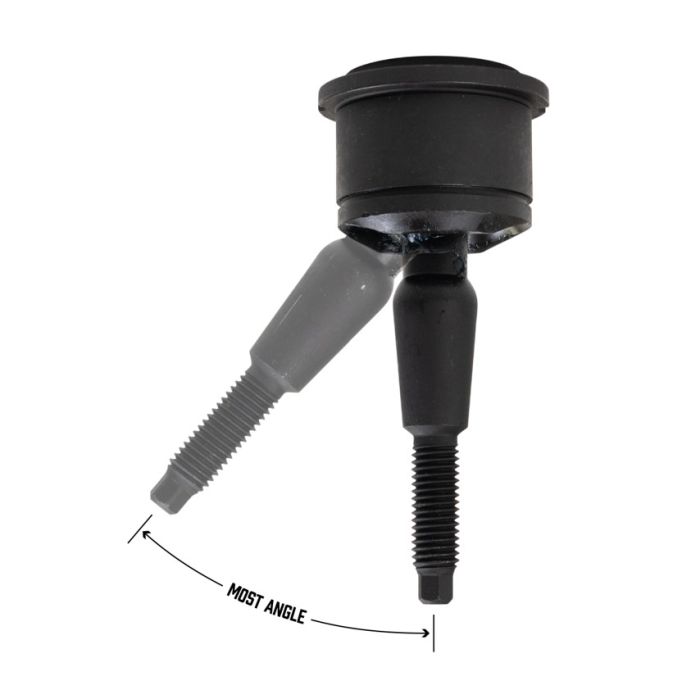

• Proprietary HD High-Angle Ball Joints
• Allows for increased strength and angle for greater wheel travel for lifted applications without sacrificing ride quality
• Billet O-Ring Dust Cap and Sealed Ball Joint Assembly protect the ball joint assembly from corrosion, dirt, and debris
• Gusseted Pivot and Ball Joint Housings designed for maximum clearance & strength
• Super-durable polyester Black Powder Coat Finish

Includes:

• HD DOM tube steel control arms with corrected ball joint angles
• HD ball joints
• Terrain Control Technology maintenance-free, self-lubricating pivot bushings

Notes

• Do NOT exceed an assembled coilover length of 22.5" for years 2004-2014 and 23" for years 2014-2021, or binding will occur.
• If using on a 6" kit, do NOT exceed length 27.75" extended length or binding will occur.
• If using 67-21640 with a non-approved kit, you must cycle to verify that nothing will bind. ReadyLIFT will not warranty any non-approved kit combination.

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.

• Click Here for installation instructions
