2005-2007 Superduty 4" FOX 2.5 Performance Elite Conversion Kit (BDS1931FPE)

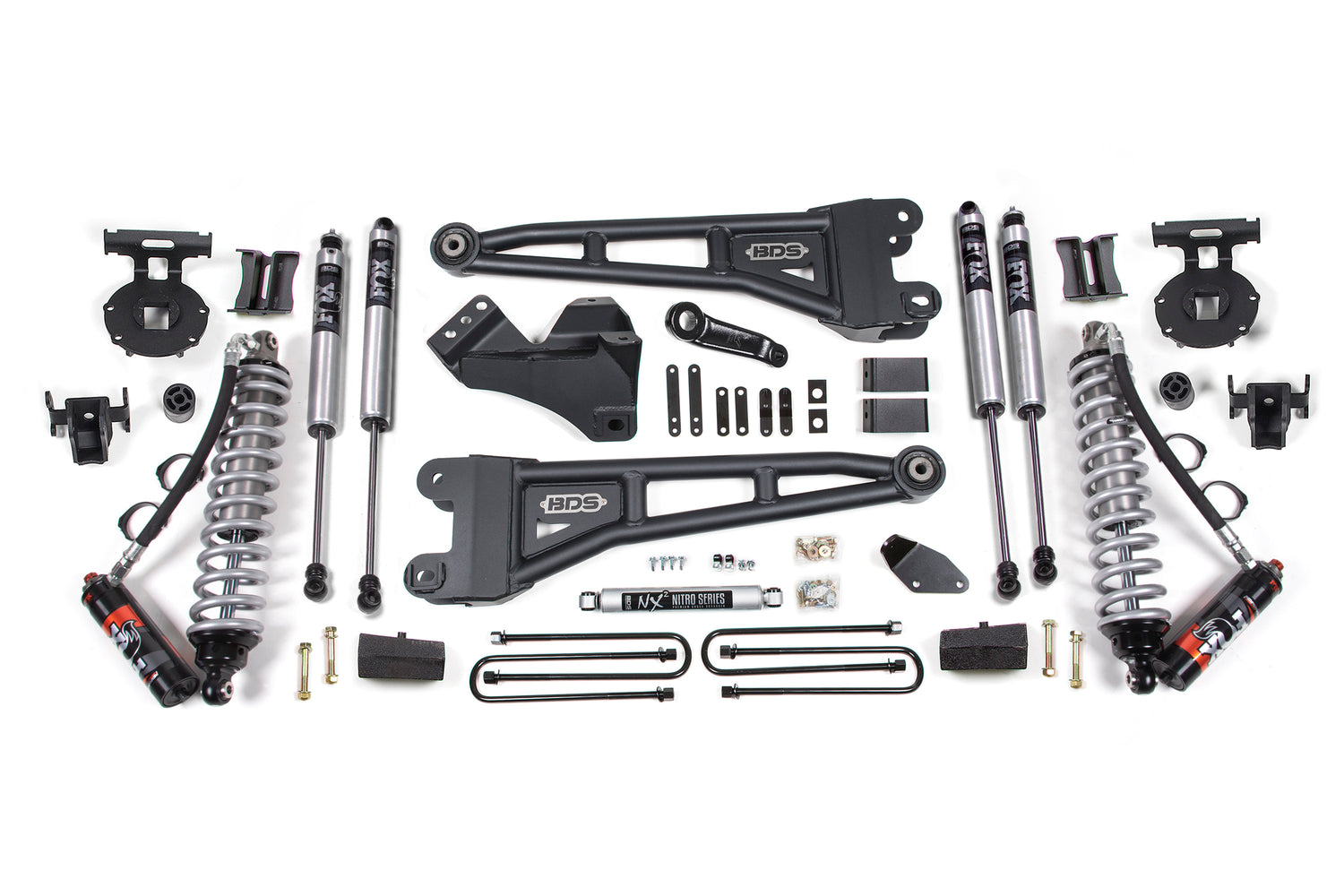

Upgrade your 2005-2007 Ford F-250 and F-350 Super Duty diesel truck with this BDS 4" radius arm lift kit and FOX 2.5 Performance Elite coil-over conversion, with clearance for up to 35" tires. Up front the kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty tubular replacement radius arms that correct caster, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and secondary FOX 2.0 shocks. The rear uses a high-strength lift block, longer u-bolts, and matching FOX Performance shocks. The Dual Speed Compression Adjust adjuster offers 10 low-speed and 12 high-speed compression levels with a black anodized reservoir for cooling.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments
• Blocks made of steel for high strength
• Designed to provide correct pinion angles
• Glide-Ride leaf springs eliminate any need for a lift block
• Reduces axle wrap and creates a more controlled and stable feel
• Multi-leaf progressive design for a smooth ride
• Maintains factory payload weight ratings

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 4.5

Notes

• These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering.
• If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.

Includes

• BDS013329, 1999-2007 Ford F250/F350 Rear Box Kit w/o overload (UPC 658848613304)
• BDS013431, 2005-2007 Ford F250/F350 4 inch Radius Arm Front Box Kit (UPC 711745611771)
• BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch) (UPC 711745604063)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609112)
• FOX88406427, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 4 inch Lift, Dual Speed Compression Adjust
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
