2005-2007 Superduty 6" FOX 2.5 Performance Elite Conversion Kit (BDS1945FPE)

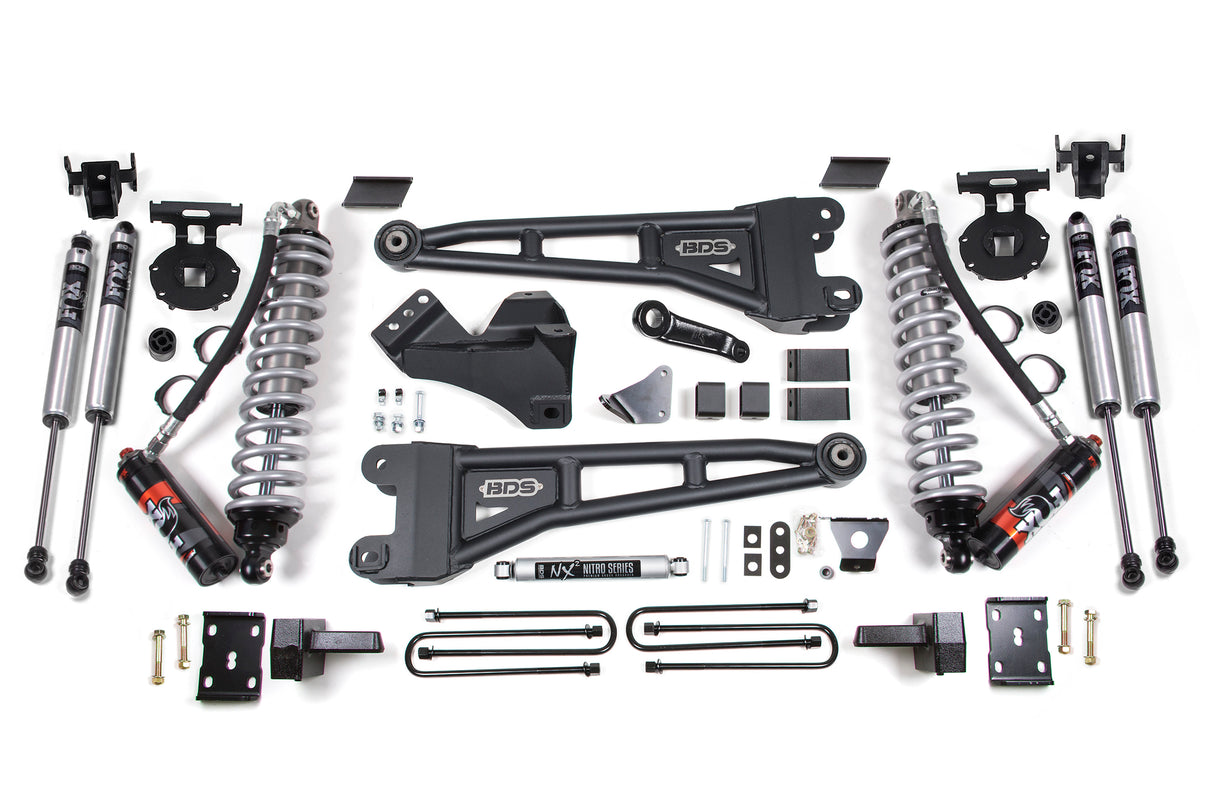

Upgrade your 2005-2007 Ford Super Duty F250 and F350 diesel truck with this BDS 6" radius arm lift kit with FOX Performance Elite coil-over conversion, with clearance for up to 37" tires. Up front it includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty tubular replacement radius arms with caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned secondary FOX 2.0 shocks. The rear uses high-strength lift blocks, longer u-bolts, brake line brackets, and a matching set of FOX 2.0 Performance shocks.

Features

• Bolt-on FOX 2.5 Performance Elite coil-overs mount in the factory coil bucket location, built for abuse with race-proven technology
• Remote reservoir adds fluid capacity to keep shocks running cool
• Dual Speed Compression Adjust offers 10 low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir
• Adds a secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 Inch
• Rear Lift Height: 4 Inch

Notes

• These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs (an extra leaf set above the main pack). Identify which you have before ordering.
• If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
• Do not install the 4" rear block kit on vehicles equipped with a factory 3-7/8" rear block. Only use the rear spring option on these vehicles.

Includes

• BDS013418, 2005-2007 Ford F250/F350 4 Inch Rear Box w/ Overload (UPC 658848613465)
• BDS013615, 2005-2007 Ford F250/F350 4wd 6 Inch Radius Arm Box Kit - Front (UPC 711745611801)
• BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 Inch-8 Inch) (UPC 711745604063)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609112)
• FOX88406428, Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 6 Inch Lift, Dual Speed Compression Adjust
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
