2005-2007 Superduty 6" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS358H)

Take your 2005-2007 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch lift kit plus 4-link conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Features

• The kit comes with a single steering stabilizer in the kit, but you can upgrade to a dual system in the customize your kit section.
• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
• If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
• Do not install the 4 inch rear block kit on vehicles equipped with a factory 3-7/8 inch rear block. Only use rear spring option on these vehicles.

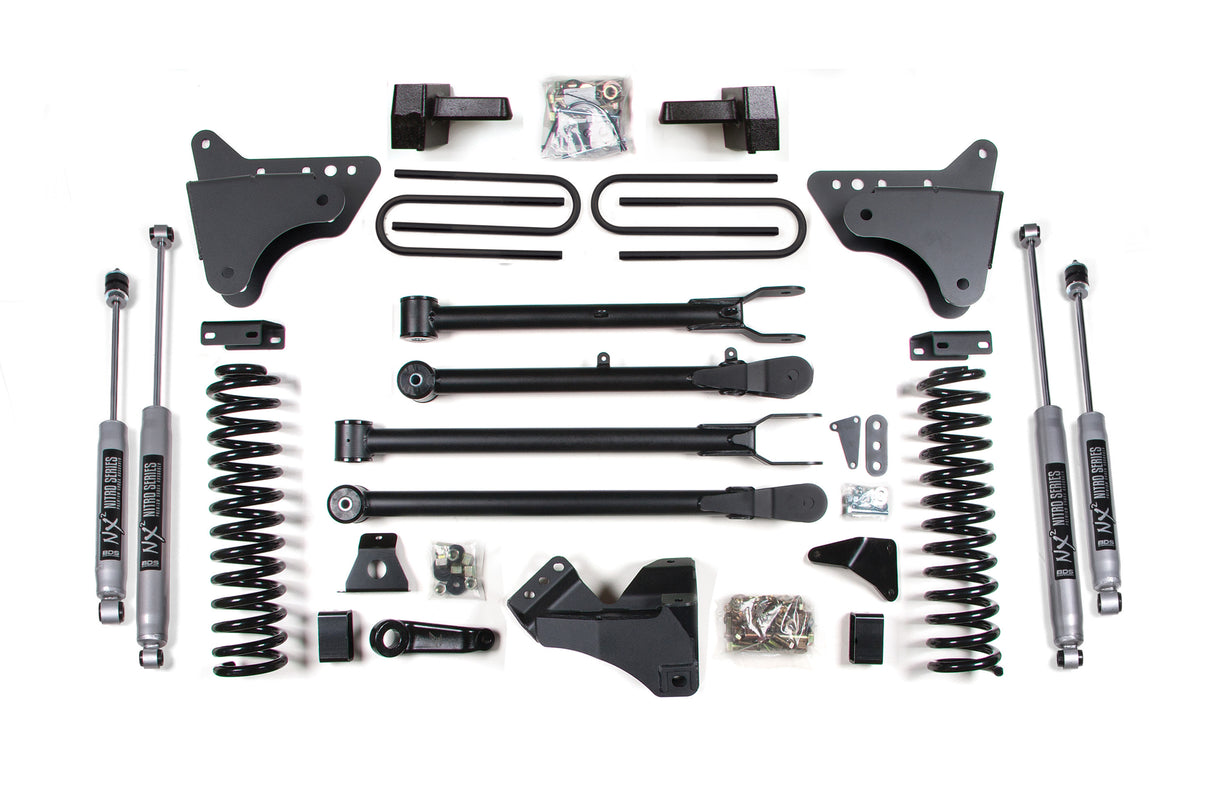

Includes

• BDS003609, Ford F250/350 6 Inch Rear Spring (UPC 658848611386)
• BDS013010, 05 Ford F250/350 4-link Kit (1of2) (UPC 658848612994)
• BDS013011, 05 Ford F250/350 4-link Kit (2of2) (UPC 658848613007)
• BDS033611, 2005-2022 Ford F250/F350 6 inch (Diesel) Coil Kit (UPC 658848616589)
• BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609112)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
• BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609693)
• UBT4033, 5/8 x 3-5/8 x 12 Round U-bolt (UPC 711745613294)
