2005-2007 Superduty 8" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS530FS)

This BDS 8" lift kit with 4-link conversion raises your 2005-2007 Ford F250/F350 Super Duty diesel truck with clearance for up to 38" tires. The 4-link converts the factory stamped steel radius arms to HD upper and lower control arms on 1/4" steel brackets, correcting axle position and limiting caster change through wheel travel for better handling, strength, and stability. Up front it includes diesel-specific Pro-Ride coil springs, a forged drop pitman arm and track bar drop bracket for steering correction, sway bar relocation, and brake line brackets. The rear uses replacement Glide-Ride leaf springs with an integrated overload leaf, u-bolts, and brake line brackets. The triple-stage Glide-Ride design keeps ride quality unloaded while engaging the overload leaf for full hauling capacity. Choose NX2 Nitro or FOX 2.0 Performance shocks front and rear.

Features

• 100% bolt-on installation
• Pro-Ride dual rate coil springs
• Heavy duty 4-link control arms for improved handling, stability, strength and caster control
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Glide-Ride leaf springs provide full lift height and increased capacity with a built-in overload spring
• Choice of NX2 Nitro shocks with vehicle-specific valving or FOX 2.0 Performance Series shocks
• FOX 2.0: 2-inch Impact extruded aluminum body, Internal Floating Piston monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 8 inch

Recommended Tire & Wheel Fitment

• Tire Size: 38x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• Front dual shock hoop requires different cylinders than what comes in the base kit.
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.

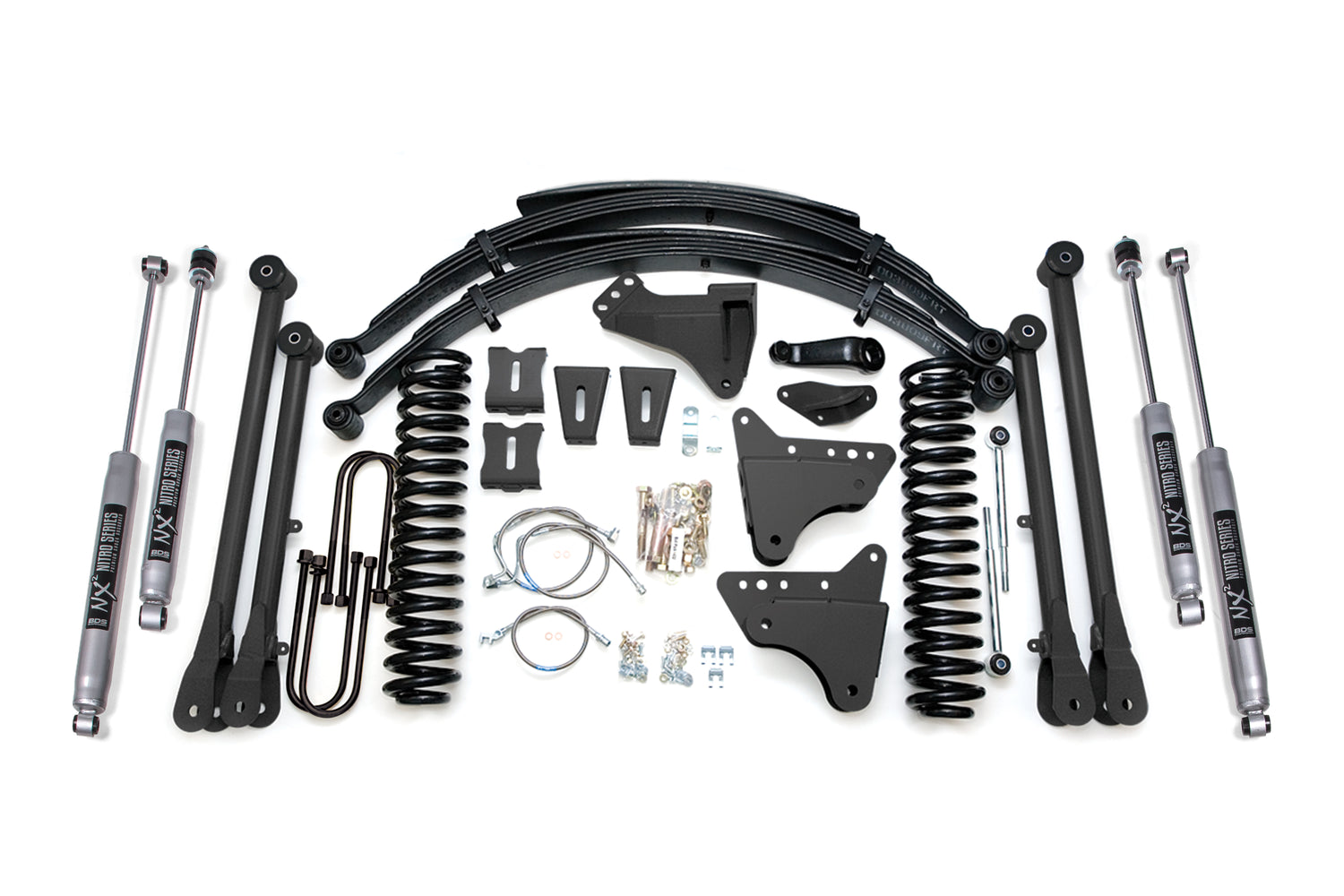

Includes

• BDS003809, Ford F250/350 8in Rear Spring (UPC 658848611423)
• BDS013810, 05 Ford F250/350 4-link Box Kit (1of2) (UPC 658848613854)
• BDS013811, 05 Ford F250/350 4-link Box Kit (2of2) (UPC 658848613861)
• BDS033811, 05 Ford F250 SD Diesel 8in Coil Kit (UPC 658848616602)
• BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609112)
• FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• FOX98224765, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
