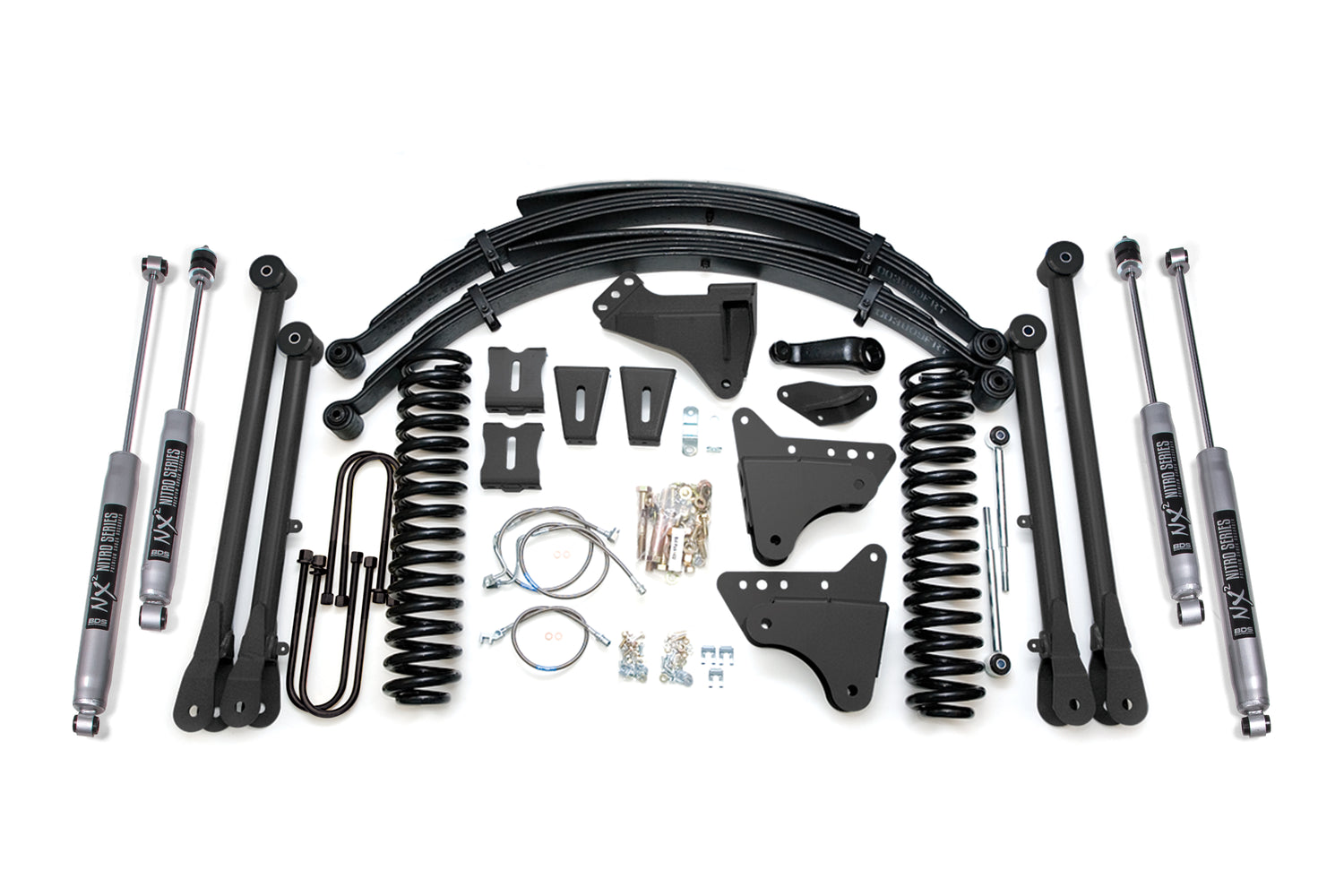

2005-2007 Superduty 8" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS531H)

This BDS 8" lift kit with 4-link conversion raises your 2005-2007 Ford F250/F350 Super Duty gas truck with clearance for up to 38" tires. The 4-link converts the factory stamped steel radius arms to HD upper and lower control arms on 1/4" steel brackets, correcting axle position and limiting caster change through wheel travel for better handling, strength, and stability. Up front it includes gas-specific Pro-Ride coil springs, a forged drop pitman arm and track bar drop bracket for steering correction, sway bar relocation, and brake line brackets. The rear uses replacement Glide-Ride leaf springs with an integrated overload leaf, u-bolts, and brake line brackets. The triple-stage Glide-Ride design keeps ride quality unloaded while engaging the overload leaf for full hauling capacity. Choose NX2 Nitro or FOX 2.0 Performance shocks front and rear.

Features

• 100% bolt-on installation
• Pro-Ride dual rate coil springs
• Heavy duty 4-link control arms for improved handling, stability, strength and caster control
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Glide-Ride leaf springs provide full lift height and increased capacity with a built-in overload spring
• Choice of NX2 Nitro shocks with vehicle-specific valving or FOX 2.0 Performance Series shocks
• NX2 Nitro: nitrogen-charged, twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 8 inch

Recommended Tire & Wheel Fitment

• Tire Size: 38x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• Front dual shock hoop requires different cylinders than what comes in the base kit.
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.

Includes

• BDS003809, Ford F250/350 8in Rear Spring (UPC 658848611423)
• BDS013810, 05 Ford F250/350 4-link Box Kit (1of2) (UPC 658848613854)
• BDS013811, 05 Ford F250/350 4-link Box Kit (2of2) (UPC 658848613861)
• BDS033812, 2005+ Ford F250 SD Gas 8 inch Coil Kit (UPC 658848616619)
• BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609112)
• BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2 (UPC 711745609617)
• BDS85765, Shock- 35.50 x 20.40 x 2-3/8 - EB1/EB1 (UPC 711745609747)
