2006-2007 Ram HD 4" Long Arm Conversion Kit with NX2 Nitro Shocks (BDS1766H)

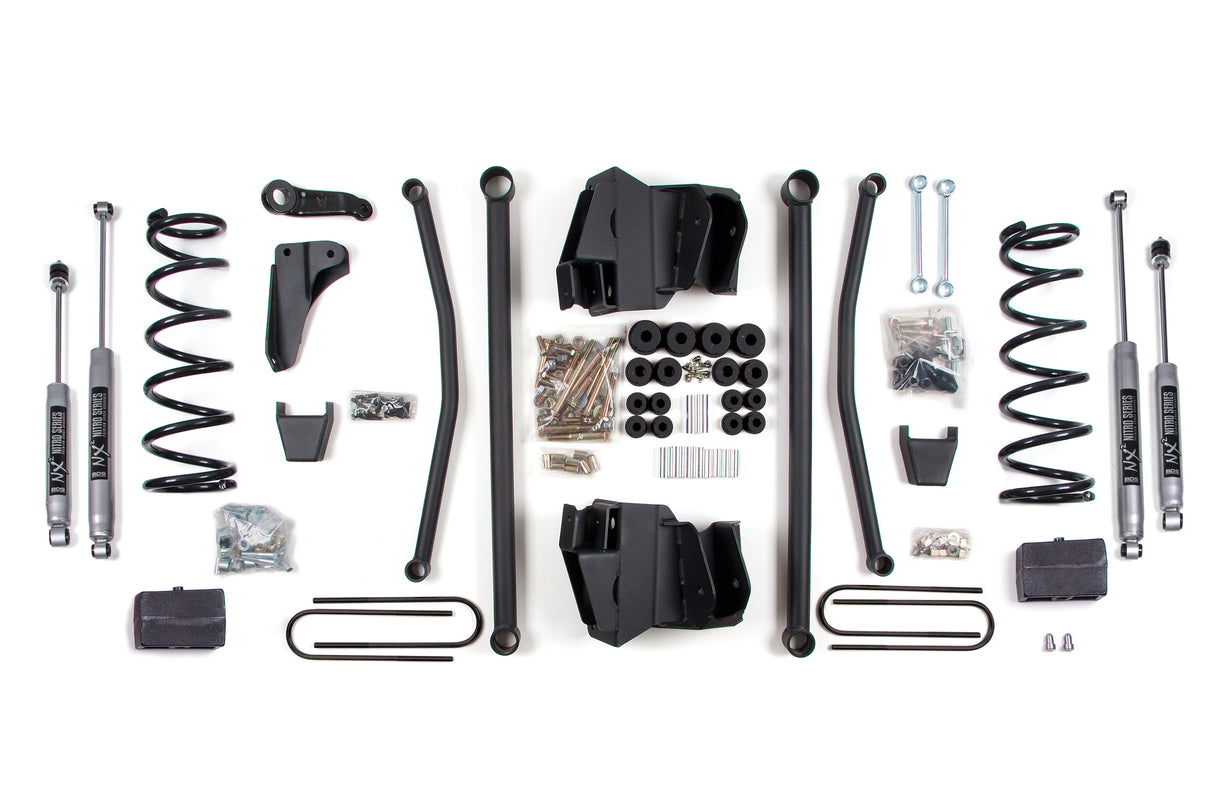

BDS Suspension built this long arm conversion lift kit to set your 2006-2007 gas Dodge Ram 2500 Power Wagon up right with 4" of lift and clears up to 37" tires. It comes with everything to do the job: tubular long control arms with relocation brackets, progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction up front, a rear lift block, longer u-bolts out back, and a matched set of BDS NX2 Nitro shocks.

The long lower control arms reduce caster change through wheel travel for a more controlled feel on and off road, and the system keeps the factory arm triangulation for added stability.

Features

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• These vehicles were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2 inch or 4 inch in diameter.
• Depending on the factory transmission mount, some 4 inch kits may require the transfer case indexing kit if a driveline vibration persists. See installation instructions for details.
• If your Truck has had the steering gear box changed and the sector shaft diameter measures ~1-1/2 inch-1-5/8 inch you will need to add part BDS082404 to your kit.

Includes

• BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring (UPC 658848611294)
• BDS012603, 03-07 Ram 6 Inch Long Arm Box Kit (UPC 658848612697)
• BDS012801, Dodge Control Arm Mounts (UPC 658848612840)
• BDS012802, Dodge Control Arm Box Kit (UPC 658848612857)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• BDS122401, 05-13 Power Wagon Sway Bar Links (UPC 658848619467)
• BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2 (UPC 711745609617)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
• UBT4064, 9/16 x 3-1/2 x 12-1/2 Round U-bolt (UPC 711745613027)
