2006-2007 Ram HD 4" Lift Kit with FOX 2.0 Performance Shocks (BDS273FS)

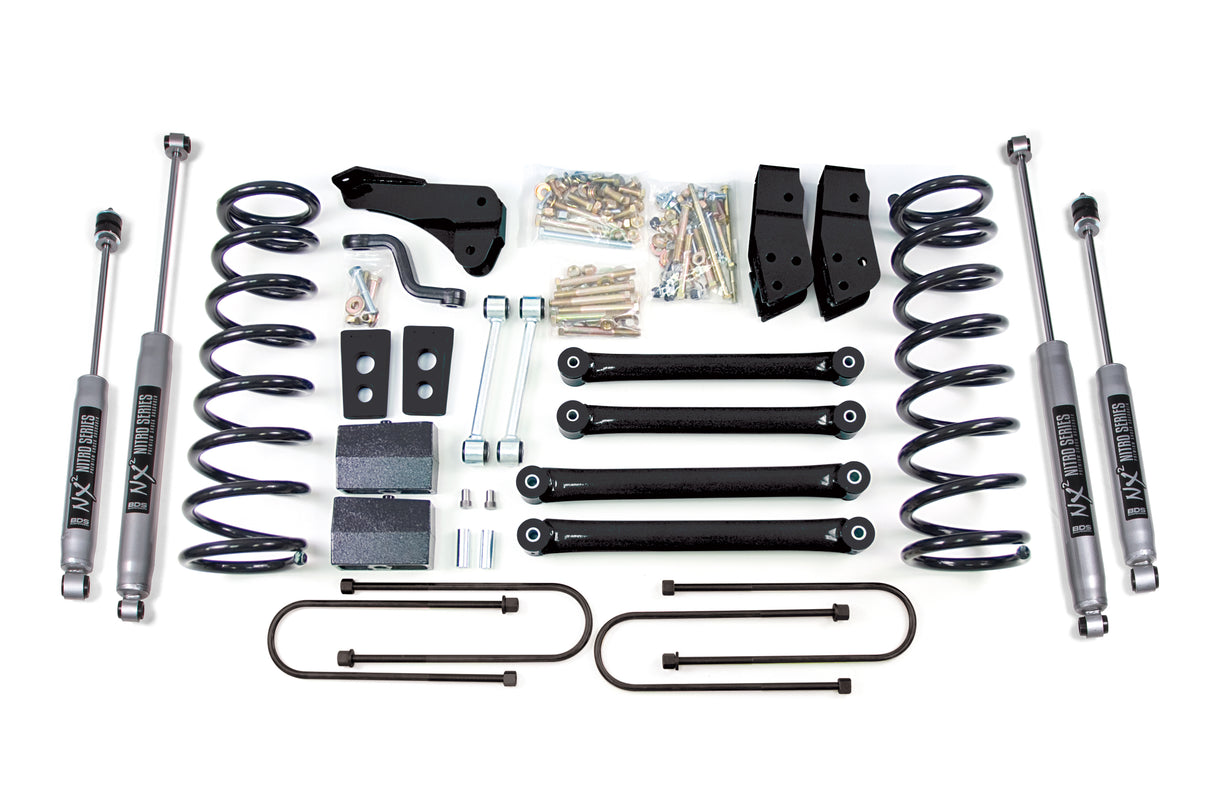

BDS 4" lift kit for the 2005-2007 Dodge Ram 2500 Power Wagon, with clearance for up to 36" tires. Up front it uses longer-than-stock tubular lower control arms with a relocation bracket to rotate the axle and flatten the upper arm angle, full-length gas-specific progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar relocation bracket for steering correction, bump stops, sway bar links and FOX 2.0 Performance Series shocks. The rear runs cast steel blocks, longer u-bolts and matching FOX 2.0 Performance Series shocks.

Features

• Tubular short control arms improve strength, handling and caster control
• Heavy duty control arm relocation brackets maintain proper suspension geometry
• Front high-strength progressive-rate coil springs for ride quality on any terrain
• Front track bar relocation bracket repositions the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• Rear cast iron block and u-bolt kit for 4" of rear lift, tapered for correct pinion angle with offset pin to restore axle position
• FOX 2.0 Performance Series shocks: 2" Impact extruded aluminum body, IFP monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston with application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2" or 4" in diameter.
• May require exhaust modification to clear the front driveshaft at full droop.
• If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2"-1-5/8" you will need to add part BDS082404 to your kit.

Includes

• BDS012408, 03-up Dodge 3/4ton 4 Inch Rear w/3-1/2 axle (UPC 658848612376)
• BDS012611, 03-07 Dodge 3/4-1 ton Box Kit (UPC 658848612734)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• BDS122401, 05-13 Power Wagon Sway Bar Links (UPC 658848619467)
• FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
