2006-2007 Ram HD 4" Lift Kit with NX2 Nitro Shocks (BDS273H)

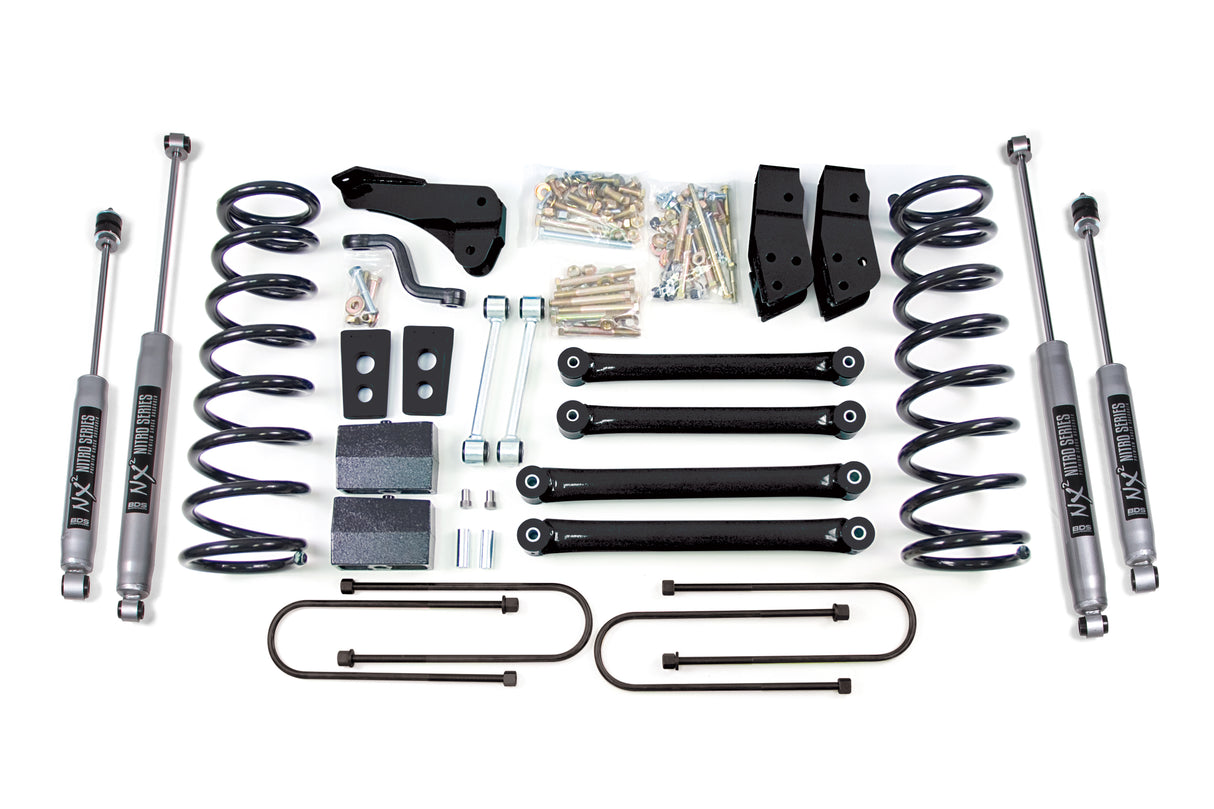

This BDS 4" lift kit sets up your 2005-2007 Dodge Ram 2500 Power Wagon right with clearance for up to 36" tires. Up front it includes gas-specific Pro-Ride coil springs, all four control arms plus relocation bracket, a forged drop pitman arm and track bar bracket for steering correction, bump stops, and sway bar links. The rear runs heavy duty cast steel blocks and longer u-bolts, matched to NX2 Nitro shocks.

Features

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Includes a rear block and u-bolt kit to achieve a 4 inch rear lift.
• Blocks are made from cast iron for strength.
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2 inch or 4 inch in diameter.
• May require exhaust modification to clear the front driveshaft at full droop.
• If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2 inch-1-5/8 inch you will need to add part BDS082404 to your kit.

Includes

• BDS012408, 03-up Dodge 3/4ton 4 Inch Rear w/3-1/2 axle (UPC 658848612376)
• BDS012611, 03-07 Dodge 3/4-1 ton Box Kit (UPC 658848612734)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• BDS122401, 05-13 Power Wagon Sway Bar Links (UPC 658848619467)
• BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2 (UPC 711745609617)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
