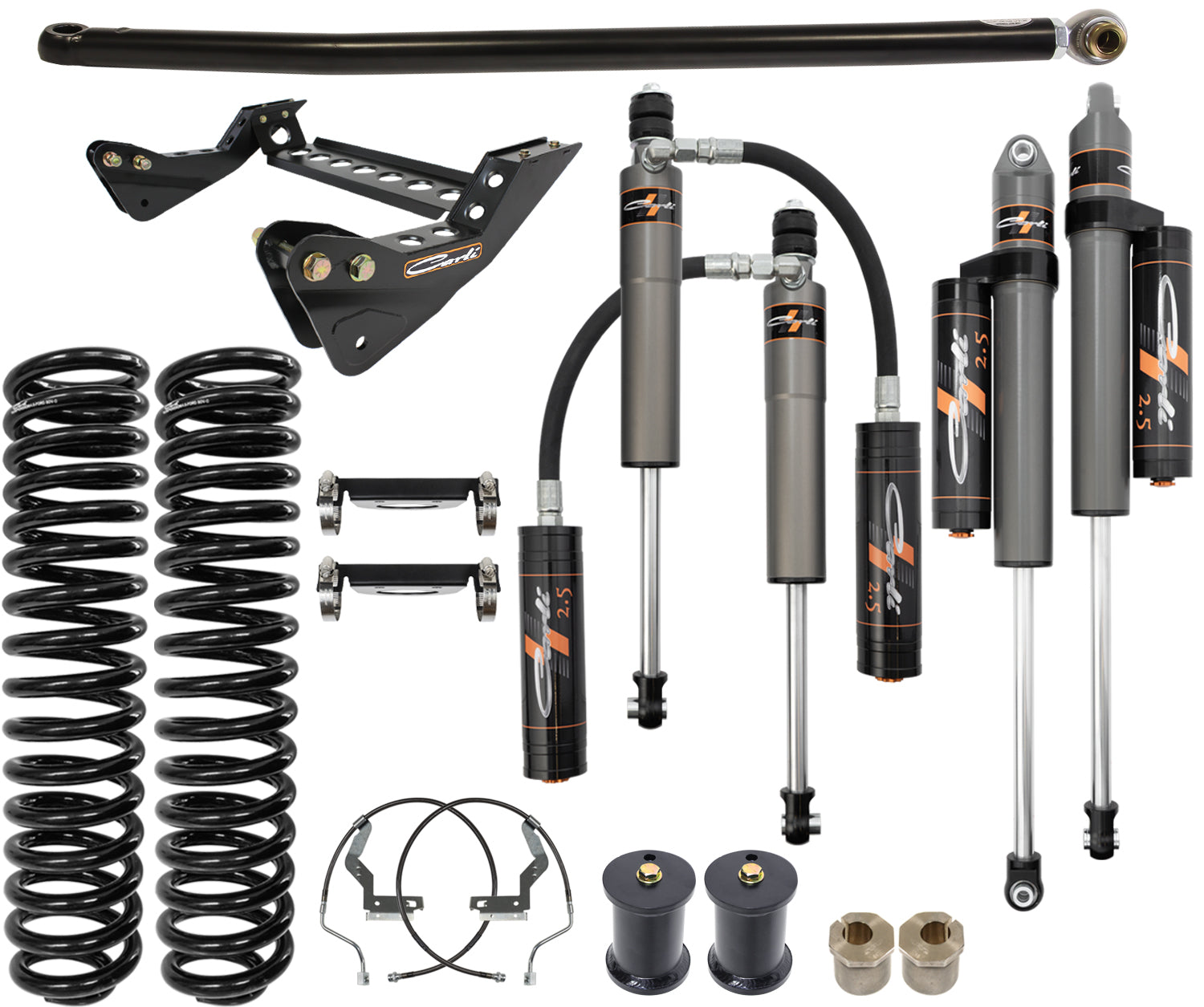

2005-2007 Super Duty 4.5" Lift Pathfinder System (CS-F45-PF-05)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$6,206.82 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Customize your Pathfinder System. Each selection adds as a separate item in your cart - you can adjust quantities or remove individual addons before checkout.

Sway Bar End Links

Required

Rear Leaf Spring Options

Required

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Carrier Bearing Drop

Optional

Long Travel Bags

Optional

Low Mount Steering Stabilizer

Optional

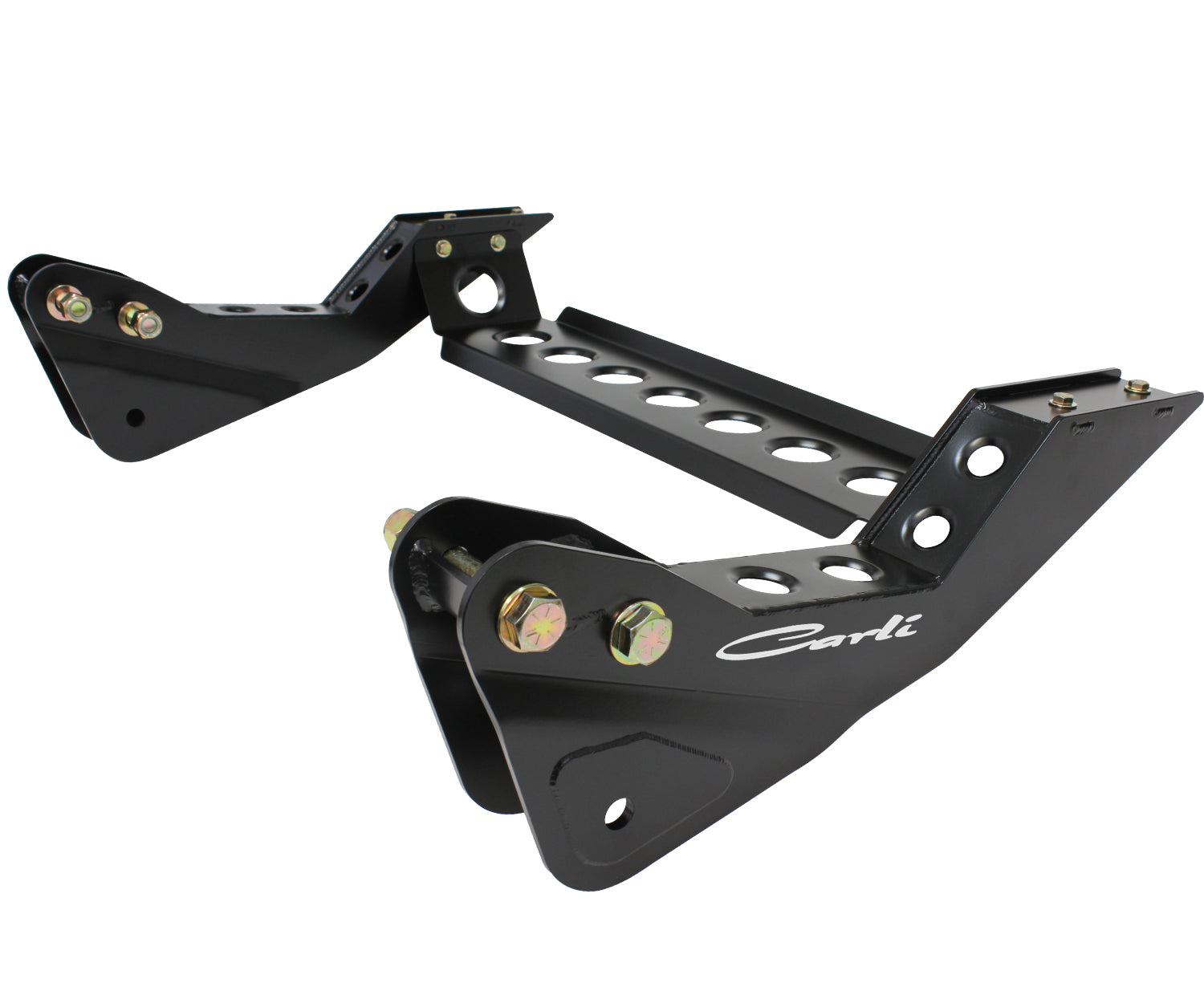

Fabricated Radius Arm Option

Optional
Part Specs
Warranty

The Carli Pathfinder sits between the Backcountry and Pintop in Carli's lineup, delivering the sweet spot of on-road comfort and off-road confidence. Equipped with Carli-SPEC 2.5" aluminum-bodied shocks, the Pathfinder provides 55% more piston surface area than a 2.0" shock for better heat management and extended rebuild intervals.

Features
  • Carli-SPEC 2.5" Remote Reservoir Shocks with custom valving
  • Hard-anodized aluminum shock bodies for corrosion resistance
  • Carli Multi-Rate Coil Springs for the 6.0L/6.4L platform
  • Adjustable Track Bar with stabilizer bracket
  • Stainless braided extended brake lines

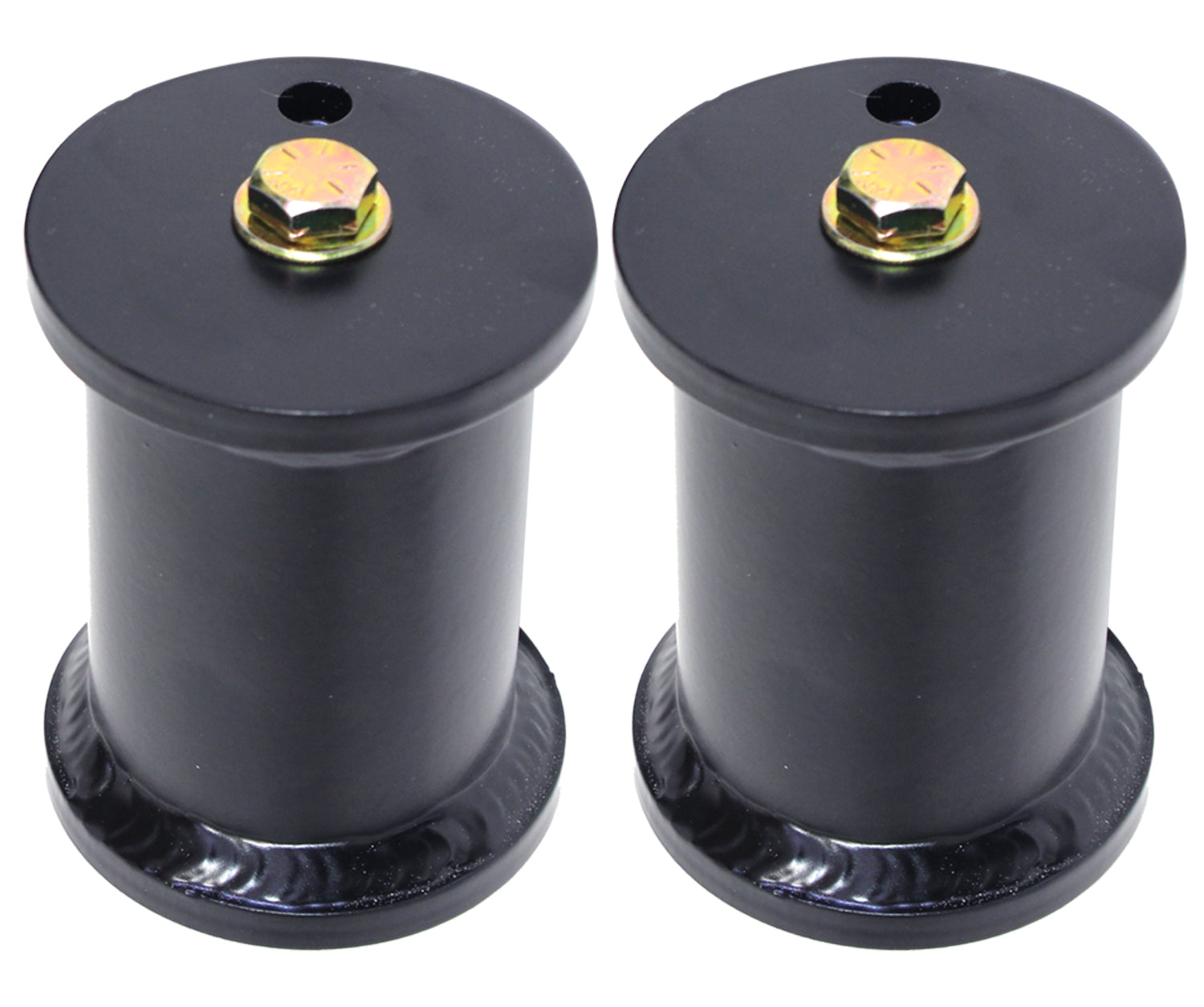

  • High-clearance bump stop drops
  • Caster correction shims
  • Full Deaver Progressive Leaf Springs
Specifications
  • Lift Height: 4.5" front
  • Shock Diameter: 2.5"
  • Accommodates up to 37" tires

Warranty
Limited 1 (One) Year Warranty
