2005-2007 Superduty 4x4 Diesel 4.5" Lift Unchained System (CS-F45-UC30-05)

Description

The most advanced off-road lift kit Carli has to offer. This Unchained 4.5" 3.0 bypass suspension system rides softest on paved roads but still provides superior control and response. However, the off-road capability is unmatched in every way, with massive 3.0 long-travel, 2-tube tuneable King Shocks for the front and 4-tube rear bypass shocks that give you more bottom-out resistance, external tubes with one-way check valves that are fully adjustable to allow users to tailor the amount of fluid that bypasses the piston/valving on either the compression or rebound stroke within the effective range of the bypass tube.

This is just one of many benefits to this kit; there is no room for error or compromises, so you experience the very pinnacle of performance, control, damping, and off-road capability over any terrain at whatever speed! Carli strongly recommends installing a roll cage and axle truss if you plan to purchase this kit. The Unchained series is the most capable, highest performing suspension system they have developed, and is NOT engineered for casual driving!

Part Number: CS-F45-UC30-05

Features

• HUGE King remote reservoirs, 3.0" 2-tube bypass, front 3.0 4-tube bypass rear shocks, this system is ready to soak up high-speed hits

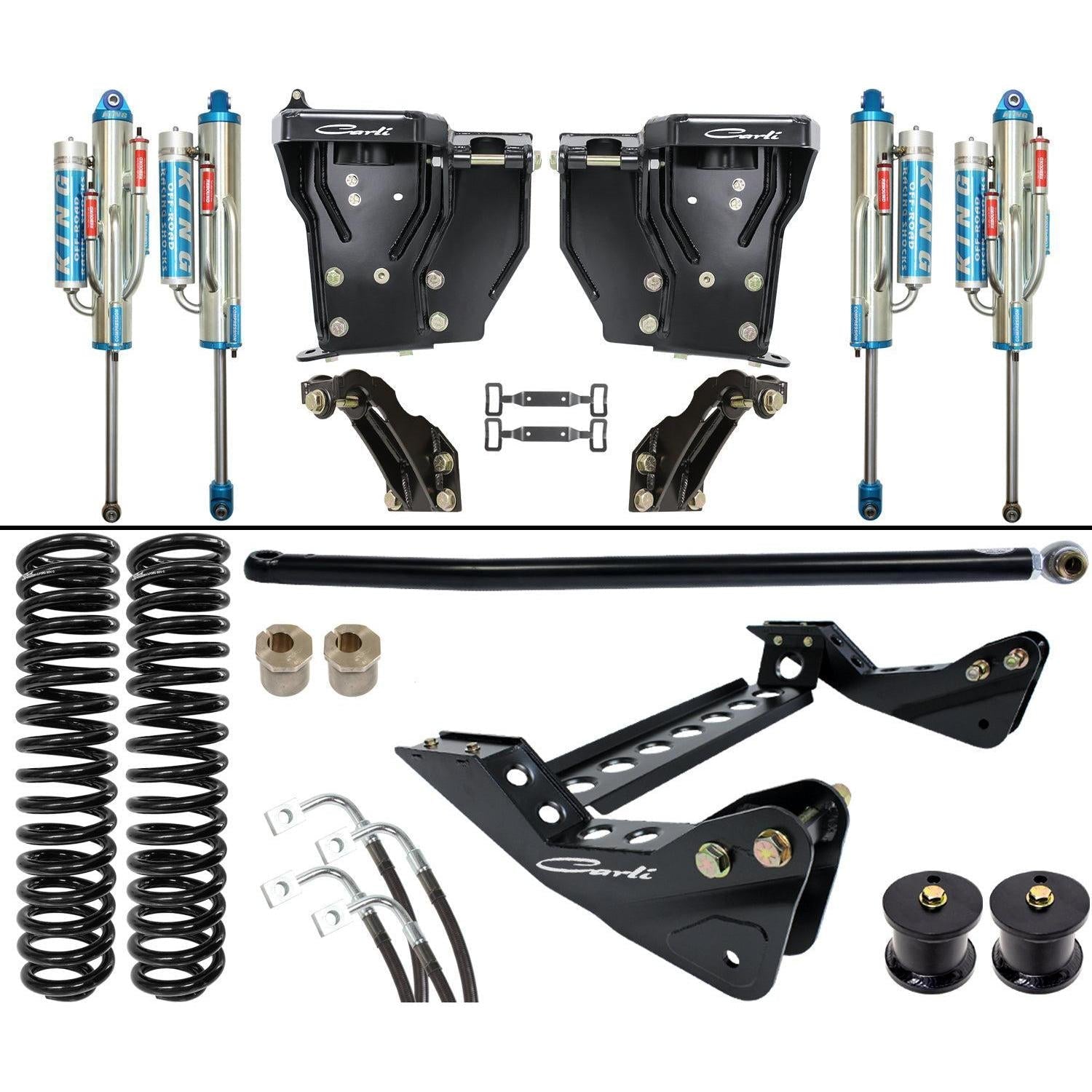

• Front and rear shock package, fabricated coil buckets, brake line kit, rear shock mounts, radius arm drop brackets, bump stop drops, caster correction shims, and adjustable track bar
• Increases wheel travel to 10.5" front and 13" rear
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
• 126% larger than a factory 2.0" shock, making it far more efficient in all situations
• 25% more piston surface area than the Kign 2.5 series shocks

Notes

• Take into strong consideration your driving application and the purpose for which the truck is being built, the Unchained Series is considered a pre-runner spec suspension system
• Carli strongly recommends a roll cage and axle truss if you plan on purchasing this kit. The Unchained series is the most capable, highest performing suspension system they have developed
• Expect to hear clicking from the opening and closing of the check valves in the external tubes of the shocks
