2005-2007 Superduty 4WD 2.5" Front Leveling Kit with Track Bar Bracket (66-2515)

The ReadyLIFT 2.5-inch Leveling Kit with Track Bar Bracket is an upgraded front suspension kit designed to level the vehicle's stance and allow for larger tires. This kit includes the necessary components to correct the front axle's position after lifting, helping to maintain the smooth OEM ride and drivability. The integrated Track Bar Relocation Bracket is a key feature that ensures proper suspension geometry, which is particularly important on these model year trucks.

Features

• Includes 2.5-inch front coil spring spacers.
• Comes with a Track Bar Relocation Bracket to correct front suspension geometry.
• Includes poly sound isolators for use with the coil spring spacers.
• Features front shock extensions.
• Includes a bump stop extension.
• Features sway bar mount spacers.

Notes

• The maximum tire diameter recommended is 35 inches on aftermarket wheels or up to 37 inches on OEM wheels.
• This kit does not require a dropped pitman arm.

Specs

• Front Lift: 2.5 inches (maximum)
• Maximum Tire Diameter: 37 inches

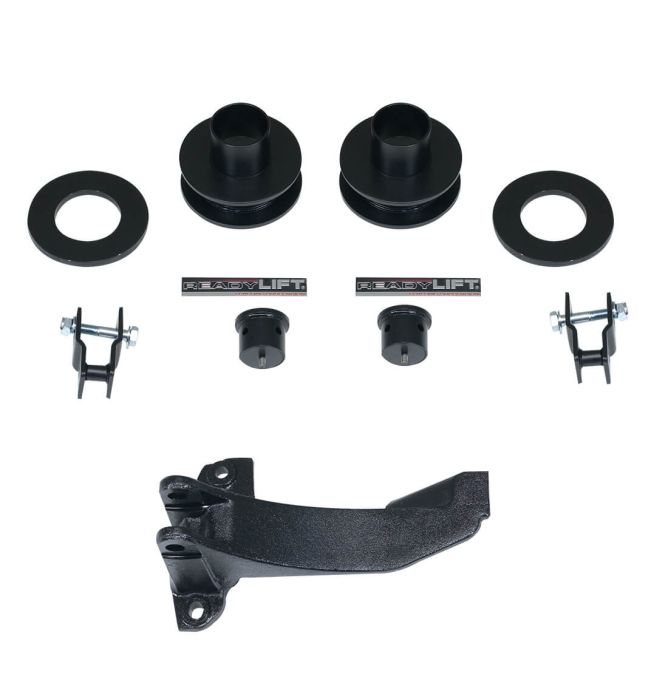

• Kit Contents: (1) pair of steel coil spring top mount spacers with poly sound isolators, (1) shock extension, (1) bump stop extension, (1) track bar relocation bracket, and (1) sway bar mount spacers.

Tire Fitment

• 35" Maximum tire diameter
• 37" on OEM wheel.
• 35x12.50 for no rub on a 9" wide wheel with 0 offset
• 17" - 35X12.5R17
• 18" - 315/70R18
• 20" - 295/65R20 / 325/60R20
• 22" - 35X12.5R22
