2005-2007 Superduty Lift Kit (ICOK67103)

Level up your 2005-2007 Superduty with this complete ICON suspension system. 7" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• 50% increase in wheel travel
• Less body-roll than stock truck
• State of the art dual-rate coil spring
• Lifetime guarantee that coil springs won’t sag
• Clears 37" Tall Tires
• No change in towing capacity
• No driveshaft modifications needed
• 100% Bolt-on system - No drilling, cutting or welding necessary for install
• Vehicle Specific tuned 2.5 Aluminum Series Piggyback Reservoir shocks for incredible ride quality

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Springs Are Rated For Diesel Engines Only
• Not Applicable On Vehicles Equipped With A Manual Transmission
• Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
• 7" Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Retains Factory Block For Truck To Sit Level With Front Of Truck
• Ships in multiple boxes

Manufacturer Description

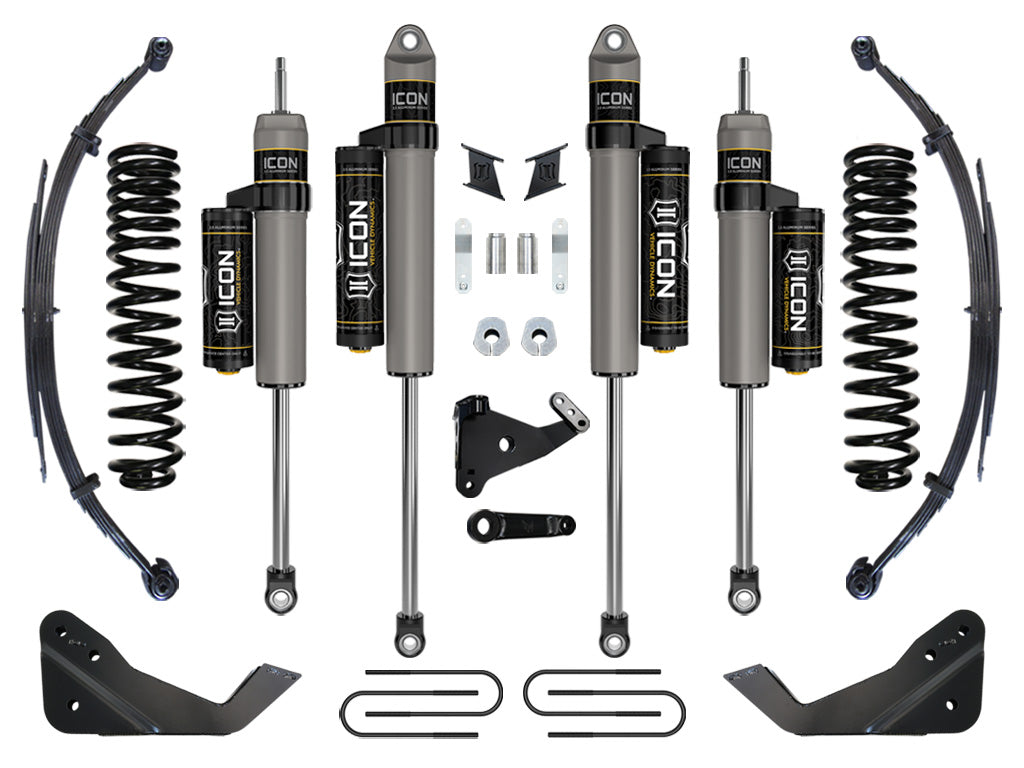

ICON’s 7" Suspension System for the 2005-2007 Ford Super Duty offers unparalleled performance and ride quality while giving the vehicle clearance for 38" tall tires. This Stage 4 system takes performance and ride quality to a whole new level. The Stage 4 system comes complete with ICON 2.5 Aluminum Series piggyback shocks, Dual-Rate Coil Springs, Drop Pitman Arm, Pan Rod Bracket, Brake Line Brackets, Radius Arm Drop Down Brackets, ICON's progressive 5" rear leaf springs, and U-bolts.
