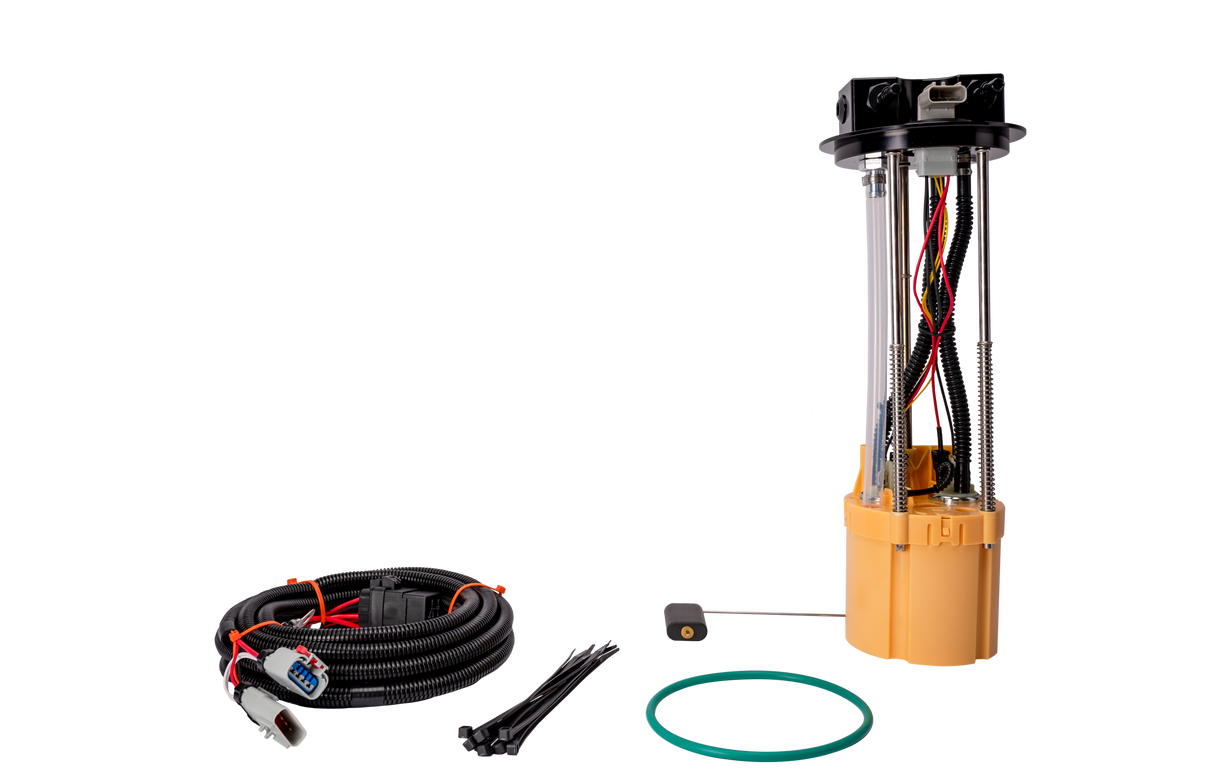

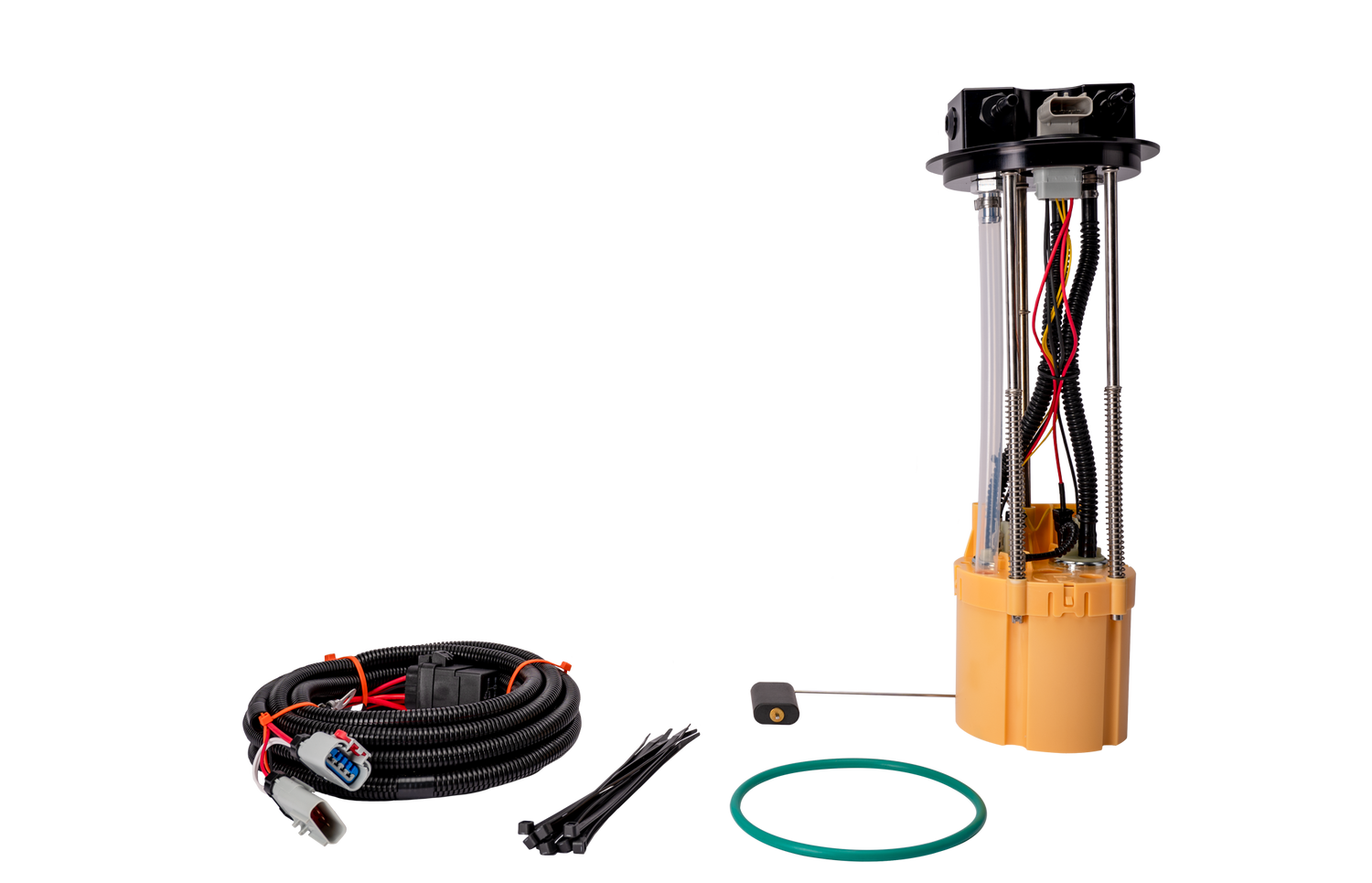

2005-2009 Ram HD PowerFlo In-tank Lift Pump Assembly (FPE-34560)

The Fleece Performance 2005-2009 Dodge PowerFlo In-tank Lift Pump Assembly is built to OEM-or-better standards for diesel truck owners who want a no-compromise upgrade. Engineered, manufactured, and supported by Fleece - the diesel performance specialists.

Notes

• For MY 2020 and up; this pump will not work with the factory installed 50-gallon fuel tank option.
• Not for use with cab n chassis applications
• For fitment/use in Titan Fuel Tanks

Features

• Direct OEM in-tank replacement PowerFlo lift pump for 2005-2009 Ram Cummins
• Dual gerotor design rated at 170 GPH at 15 PSI, supports up to 800 HP
• Retains factory water-in-fuel sensor, fuel heater, and fuel lines
• Active fill bucket eliminates draw straws, sumps, and quarter-tank cavitation issues
• -8 ORB outlet and return for aftermarket fuel system plumbing
• Replaces Dodge OE PN RL143160AB

Specifications

• Fuel Type: Diesel
• Engine: Cummins
• Country of Origin: US

Manufacturer Description

The PowerFlo lift pump is the latest OEM replacement performance lift pump from the diesel experts at Fleece Performance. The PowerFlo is the only in-tank lift pump capable of supporting up to 800 hp!

Features:
Direct OEM In-Tank Replacement: The PowerFlo Lift Pump retains the factory water-in-fuel sensor, factory fuel heater, factory fuel lines, and installs in less than half the time of other high flow lift pumps.

OEM Quality - Dual Gerotor: Two is always better than one, and the PowerFlo delivers with two OEM quality gerotor pumps, increasing flow capacity and increased reliability over the factory pump. Capable of supporting up to 800 hp, including dual CP3 pump configurations.

Seamless Integration: The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the 1/4 tank issues typically encountered when seeking a higher flow lift pump to meet your engine’s need.

Aftermarket Capable: Want the benefits of the in-tank pump but need to run your own fuel lines or aftermarket filters? The pump outlet and return is threaded to accept a -8 O-ring fitting (3/4 inch-16 thread).

Cross Reference

Year FPE Part Number Replaces Dodge/Ram OE Part Number
2005-2009 FPE-34560 RL143160AB
2010 FPE-34561 68084965AB
2011-2022 FPE-34562 5145571AA

Emissions Cert: SC-FLC01-0052
