2005-2015 Tacoma 3" Lift Kit (BDS831FNR)

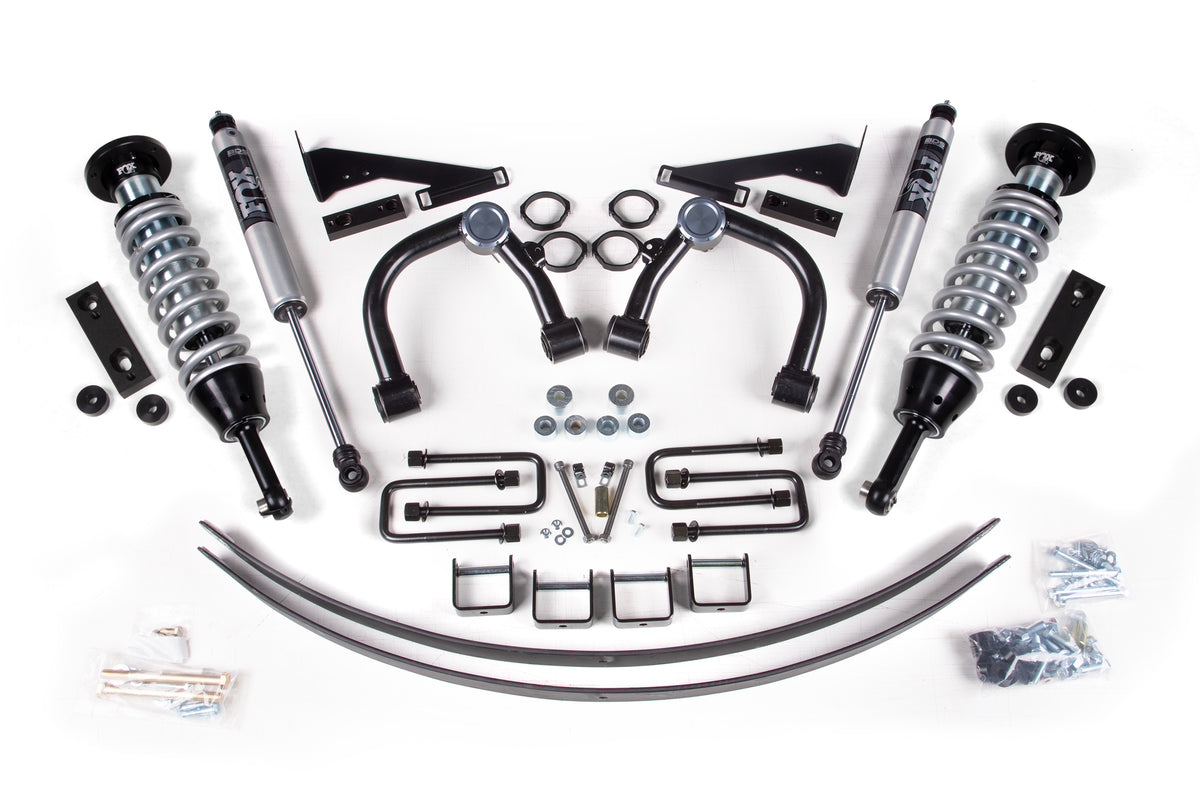

Take your 2005-2015 Toyota Tacoma to the next level with this BDS 3" lift kit featuring FOX 2.5 IFP coil-over shocks, with clearance for up to 33" tires. Up front are FOX 2.5 Factory Series IFP non-reservoir coil-overs, heavy duty tubular upper control arms, and 1" front differential spacers with longer hardware to keep CV axles within correct operating angles. The rear uses add-a-leafs for 1" of lift to level the truck plus a matching set of FOX 2.0 Performance shocks. The UCAs use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup, durometer-specific bushings and greaseable ball joints, finished in black powder coat.

Features

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 Performance Series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent bolt-on installation

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

Includes

• BDS018217, 2005-2023 Toyota Tacoma Add-A-Leaf Kit (UPC 658848614417)
• BDS028301, 2005-2023 Toyota Tacoma 3 inch Coilover Front Box Kit (UPC 658848616145)
• FOX88302025, Kit: 05-ON Toyota Tacoma 4wd & 2wd Prerunner w/ UCA, Front Coilover, 2.5 Series, Internal Floating Piston, 4.9 inch, 0-3 inch Lift
• FOX98024670, 05-ON Toyota Tacoma Rear, PS, 2.0, Internal Floating Piston, 8.1 inch, 0-1 Inch Lift
