2005-2015 Tacoma 4" Lift Kit with NX2 Nitro Shocks (BDS816H)

Step up your 2005-2015 Toyota Tacoma 4WD with this BDS 4" suspension lift kit, with clearance for up to 33" tires. It uses BDS's high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry. Up front are top-mounted strut spacers, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates, CNC-machined ductile iron steering knuckles for ESC compatibility, plus sway bar drops, bump stop extensions, brake line brackets and lower control arm cams. The rear uses heavy duty cast steel lift blocks, longer u-bolts and your choice of NX2 Nitro or FOX 2.0 IFP performance series shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX IFP gas shocks for improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• Nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5
• Wheel Diameter: 20x9
• Back Spacing: 4.5

Notes

• Will not work on TRD Pro models.
• Minor welding required.
• Requires frame bracket modification.
• Stock wheels cannot be reinstalled.
• System will work on 2WD PreRunner models.
• Cannot use 17" wheels.
• Some 2014-15 models may not achieve the stated net lift height but will have the same lifted stance/final height as an equally equipped 05-13 model.
• FOX shocks required for 2013-2016 models.

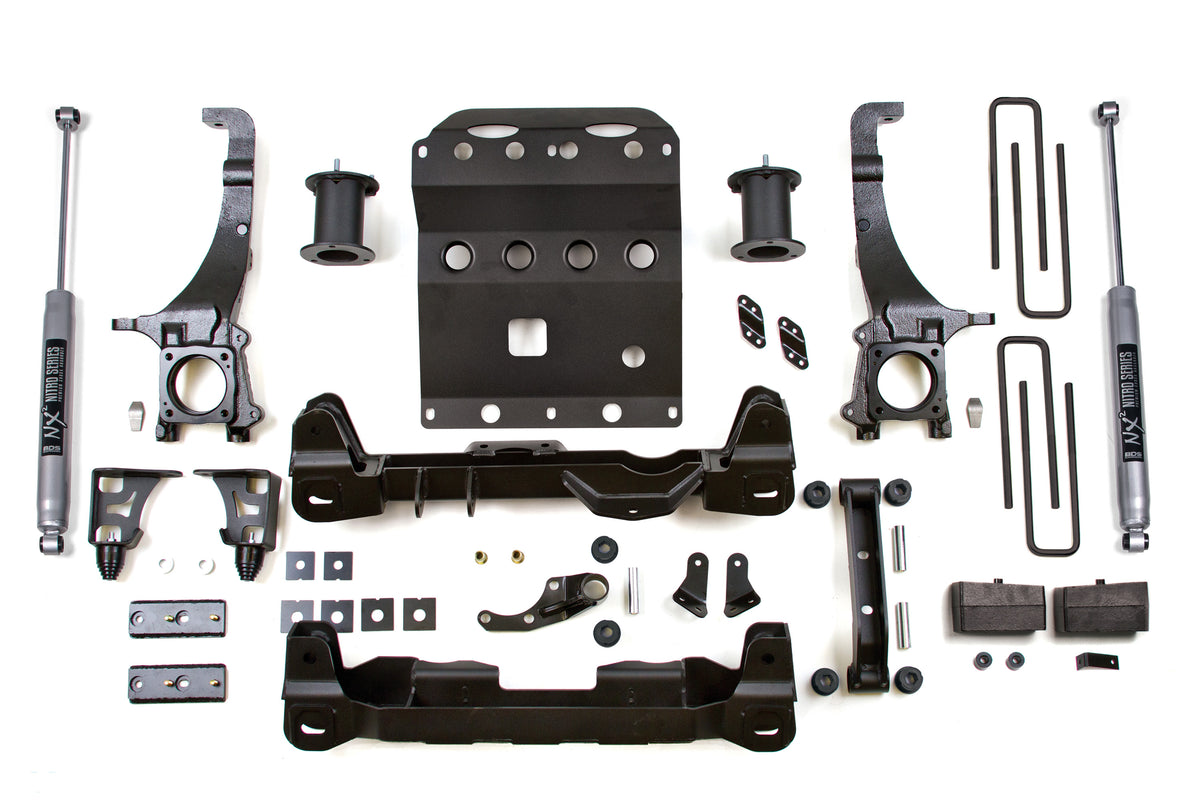

Includes

• BDS018318, 2005-2023 Tacoma 3 inch Rear Block Kit (UPC 658848614455)
• BDS028403, 2005-2023 Tacoma 4 inch Front Box Kit 4 of 4 (UPC 658848616176)
• BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4 (UPC 658848616190)
• BDS028601, 05-15 Tacoma Front Box Kit 2 of 4 (UPC 658848616206)
• BDS028602, 05-15 Tacoma Front Box Kit 3 of 4 (UPC 658848616213)
• BDS85954, Shock - 26.17 x 15.55 x 2-3/8 - S1/EB1 (UPC 711745610071)
