2005-2015 Tacoma 6" Lift Kit with FOX 2.0 Performance Shocks (BDS815FS)

Step up the 2005-2015 Toyota Tacoma 4WD with this BDS 6" suspension lift kit, with clearance for up to 35" tires. The high-clearance front uses top mounted strut spacers, 1/4" steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, and CNC-machined ductile iron steering knuckles with factory tie rod ends for ESC compatibility, plus sway bar drops, bump stop extensions, brake line brackets, and lower control arm cams. The rear runs heavy duty cast steel lift blocks, a brake line bracket, longer u-bolts, and your choice of NX2 Nitro or FOX 2.0 IFP Performance Series gas shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX Performance Series IFP gas shocks for improved ride and offroad performance
• FOX 2.0 shock: 2" Impact extruded aluminum body, IFP monotube design, 6061-T6 mounting ends, 5/8" hard chrome shaft, application-specific valving, clear anodized finish
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 4.5

Notes

• Minor welding required.
• Requires frame bracket modification.
• Strut compressor required for installation.
• Stock wheels cannot be reinstalled.
• Cannot use 17" wheels.
• System will work on 2WD PreRunner models.
• Some 2014-15 models may not achieve the net lift height stated but will have the same lift stance/final height of an equally equipped 05-13 model.

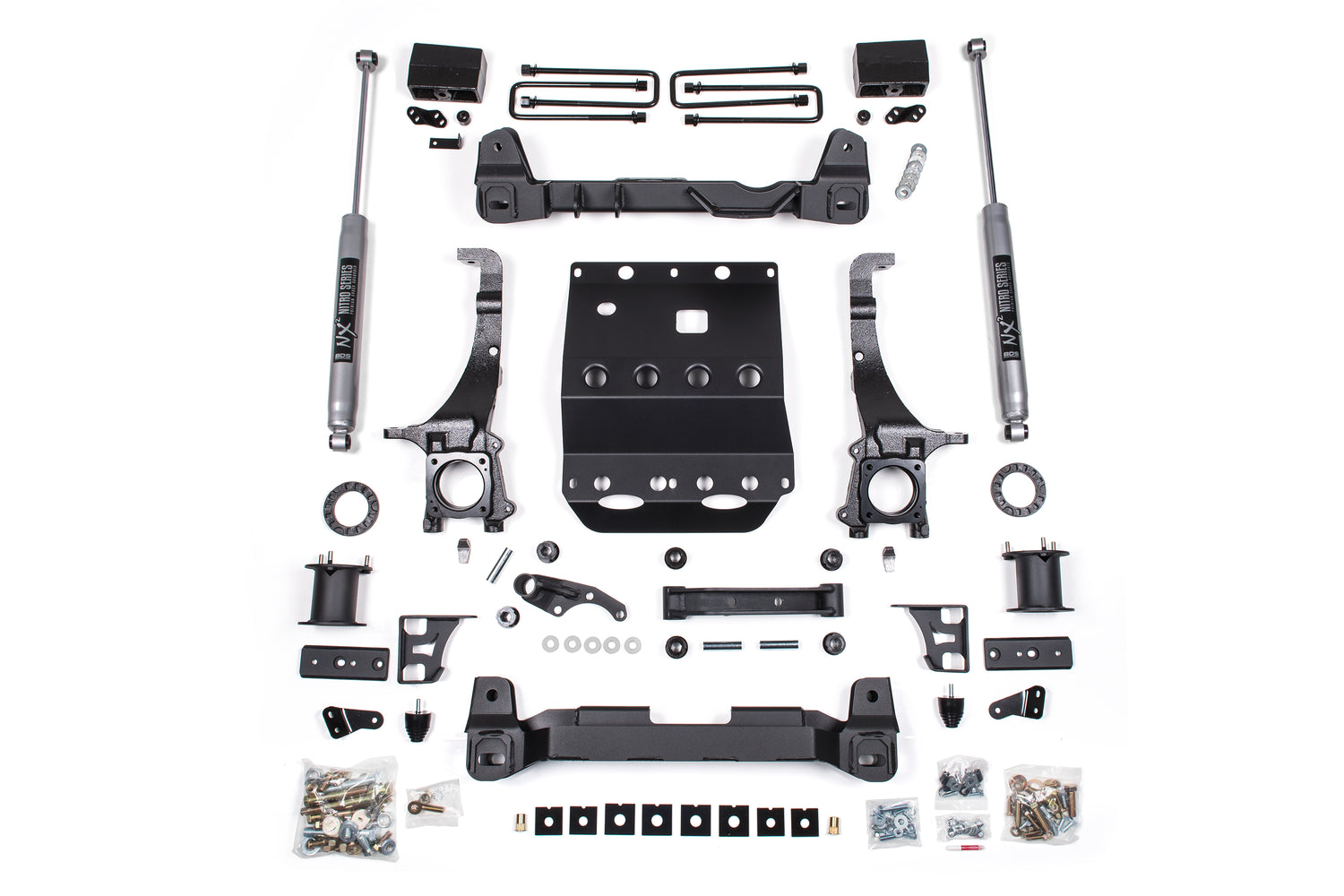

Includes

• BDS018408, 2005-2023 Toyota Tacoma 4 inch Rear Block Kit (UPC 658848614479)
• BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4 (UPC 658848616190)
• BDS028601, 05-15 Tacoma Front Box Kit 2 of 4 (UPC 658848616206)
• BDS028602, 05-15 Tacoma Front Box Kit 3 of 4 (UPC 658848616213)
• BDS028603, 2005-2023 Tacoma 6 inch Frt Box Kit 4 of 4 (UPC 658848616220)
• FOX98224953, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
