2005-2016 Superduty 4x4 Adjustable Track Bar 2.5" & 4.5" Lift (CS-FPRB-05)

Description

Part Number: CS-FPRB-05

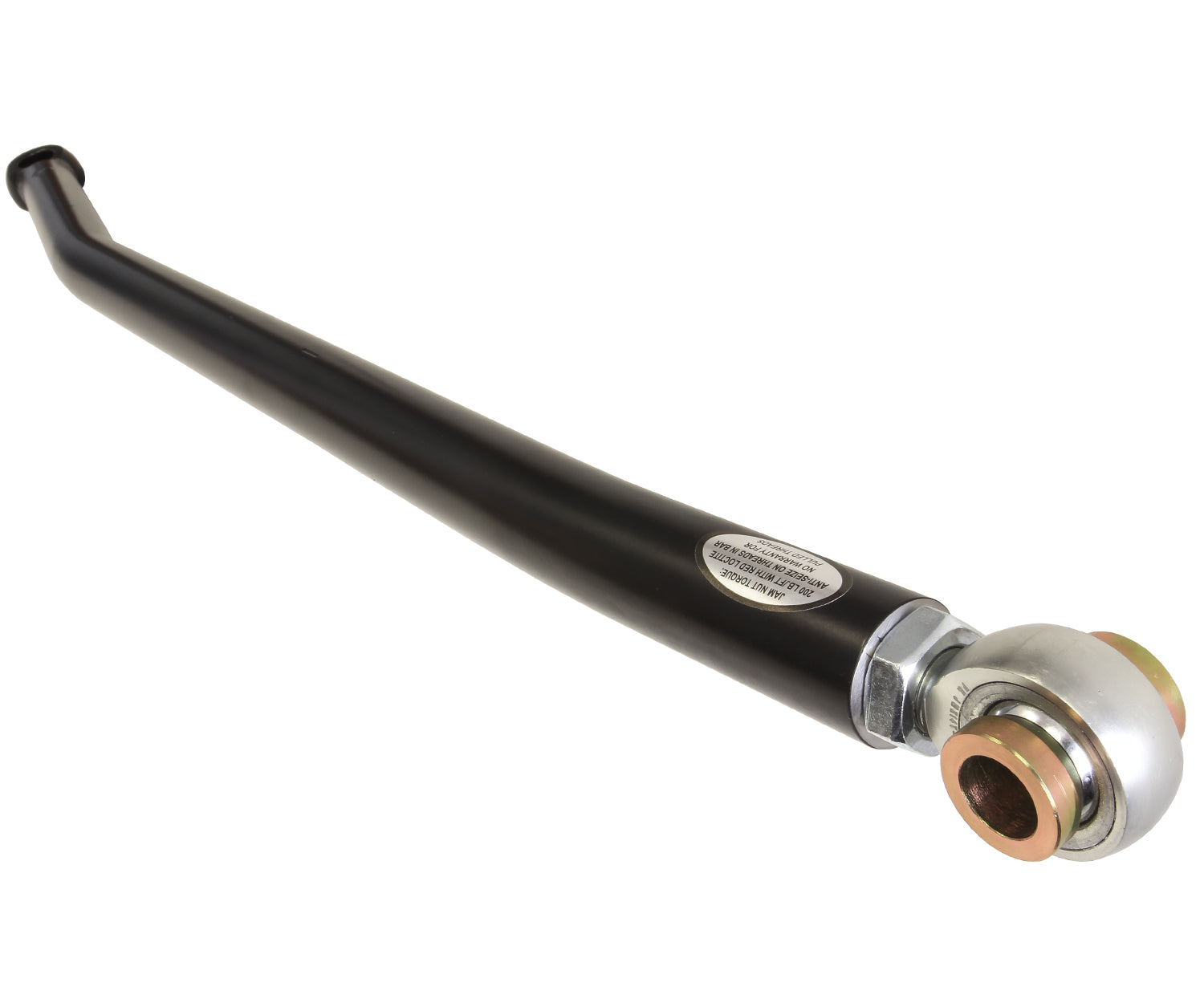

This adjustable track bar is designed to provide laser-sharp steering, zero slop, and corrected geometry for 2.5 and 4.5″ lifts without travel-limiting drop brackets. It features a machined tapered rod end with a custom angle offset to increase ball joint life. This design puts less stress on the ball joint at full droop and keeps the ball joint pin vertical at ride height, prolonging the life of wear items. A big 7/8″ heim joint is used on the frame side and it comes with custom machined misalignment spacers. The bar is constructed out of heavy wall mild-steel tube.

Features

• Custom Machined Spacers for Maximum Articulation and Perfect Fitment

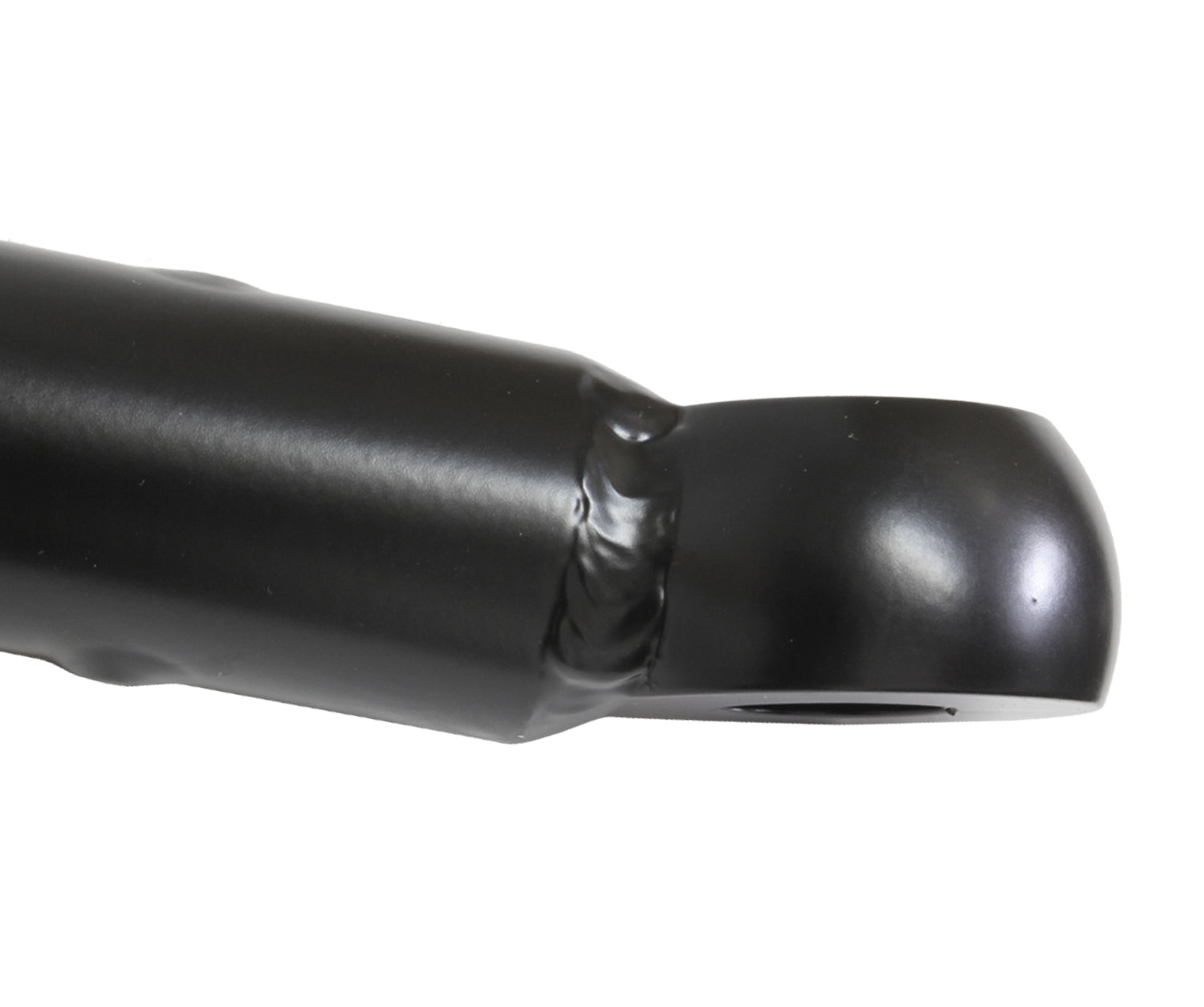

• Offset, Machined Tapered Rod End Re-aligns Axle Ball Joint For Lifted Applications
• Huge Strength Upgrade: Constructed from 1.50 x 3/8″ Wall Tube
• FK Race Heim Frame Connection

Notes

• This track bar will only fit SuperDuties with 2.5″-4.5″ of Suspension Lift without the use of a track bar drop bracket.
• Will NOT work on Stock Trucks or in Drop Brackets.

From Carli Suspension

Laser-sharp steering, zero slop, corrected geometry for 2.5 and 4.5″ lifts without travel-limiting drop brackets and maximum life from the factory axle ball joint. What more could you ask for?

We designed our Adjustable Track Bar with a machined tapered rod end with a custom angle offset to increase ball joint life. This design puts less stress on the ball joint at full droop and keeps the ball joint pin vertical at ride height, prolonging the life of wear items. A big 7/8″ heim joint is used on the frame side and it comes with custom machined misalignment spacers. Constructed out of heavy wall mild-steel tube.

Please Note: This track bar will only fit SuperDuties with 2.5″-4.5″ of Suspension Lift without the use of a track bar drop bracket.
