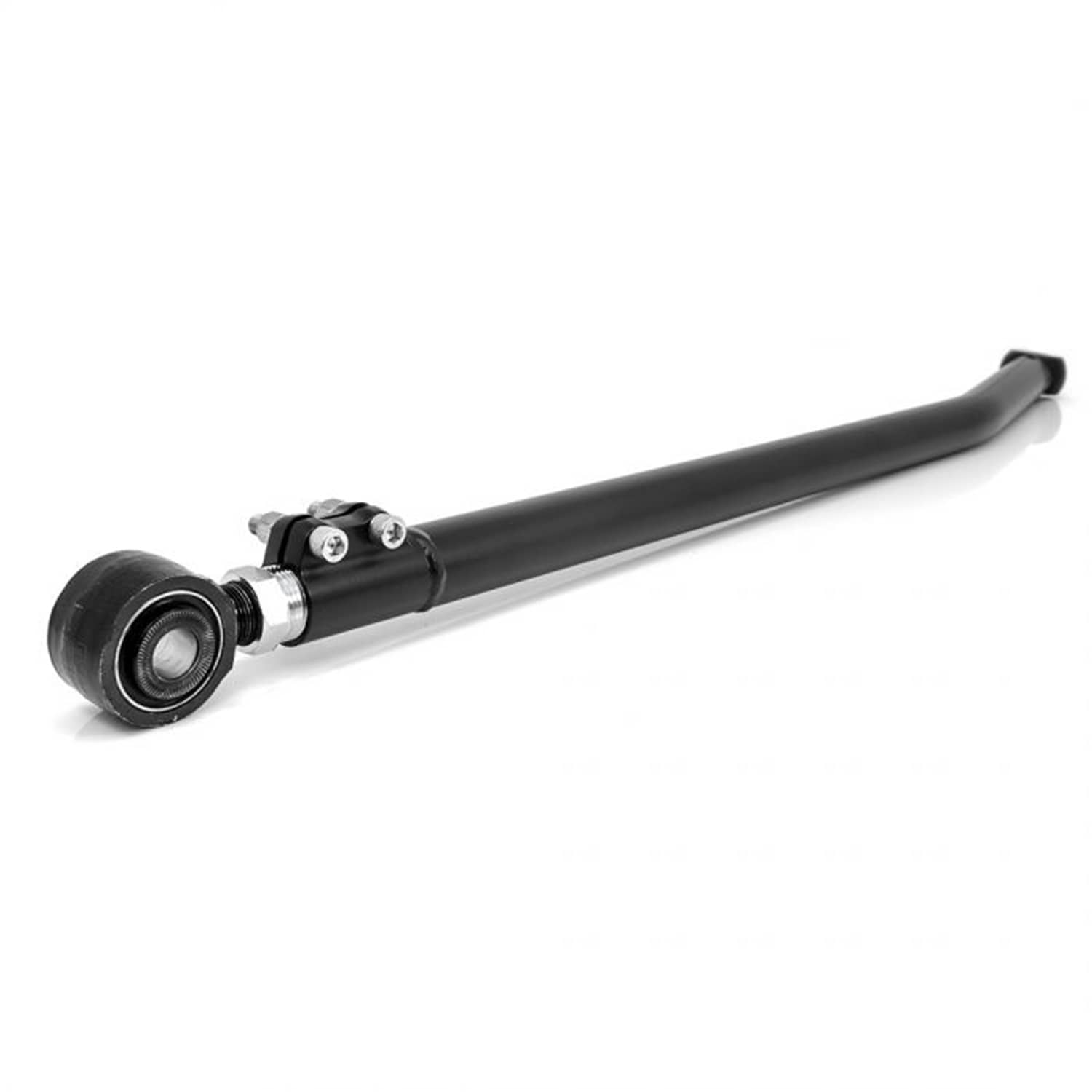

2005-2016 Superduty Front Adjustable Track Bar 0-5" Lift (77-2005)

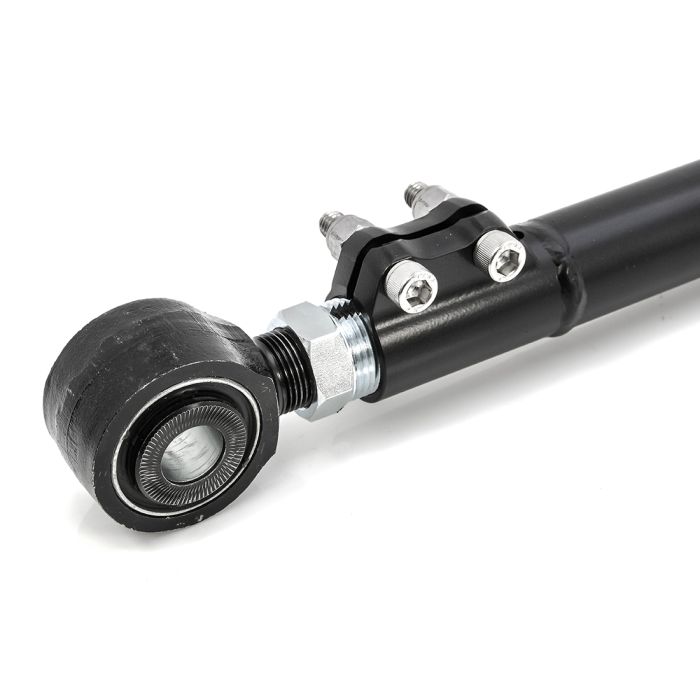

ReadyLIFT has developed a new and improved adjustable heavy-duty front track bar, marketed as the Anti-Wobble Track Bar, designed to remedy many of the common steering issues associated with lifted or leveled trucks. The track bar is extremely strong, constructed from thick 1.5"-3/8-wall DOM tube steel with CNC-machined 4140 Chromoly ends. On the frame side, a threaded forged housing with a maintenance-free heavy-duty bushing screws into a twin-pinch on-truck adjuster, allowing you to easily set the desired length while the bar is installed on the vehicle. On the axle side, the track bar has a CNC-machined 4140 tapered end designed to receive the factory ball joint. This exciting new front track bar is engineered to be a direct bolt-on replacement for Super Duty trucks with 0" to 5" of front lift.

Features

• New Heavy Duty Anti-Wobble Track Bar provides an extremely strong solution
• Constructed from 1.5" 3/8-wall DOM tube steel with CNC machined 4140 ends
• Twin-pinch adjuster allows for easy on-truck length adjustments
• Includes a maintenance-free heavy-duty bushing on the frame side
• CNC-machined 4140 tapered end designed to receive the factory ball joint
• Direct bolt-on replacement for trucks with 0" to 5" of lift
• Installation hardware included

Specs

• Construction Material: 1.5" 3/8-wall DOM tube steel with CNC machined 4140 Chromoly ends
• Lift Compatibility: 0" to 5" of Front Lift
• Axle Side Connection: CNC-machined 4140 tapered end designed for factory ball joint

Compatibility Notes

• Fits Ford Super Duty F250, F350, and F450 4WD Trucks from 2005 to 2016.
• For trucks with 6" to 8" of lift, these track bars will work when using a track bar relocation bracket which is found in ReadyLIFT 6.5" and 8" lift kits.

Notes

• Your vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
• The bushing itself on the frame side is under a 1 year warranty from the date of purchase. The bar itself is covered by a lifetime warranty against manufacturer defect.
• The bar uses the factory ball joint and does not include heim joints.
