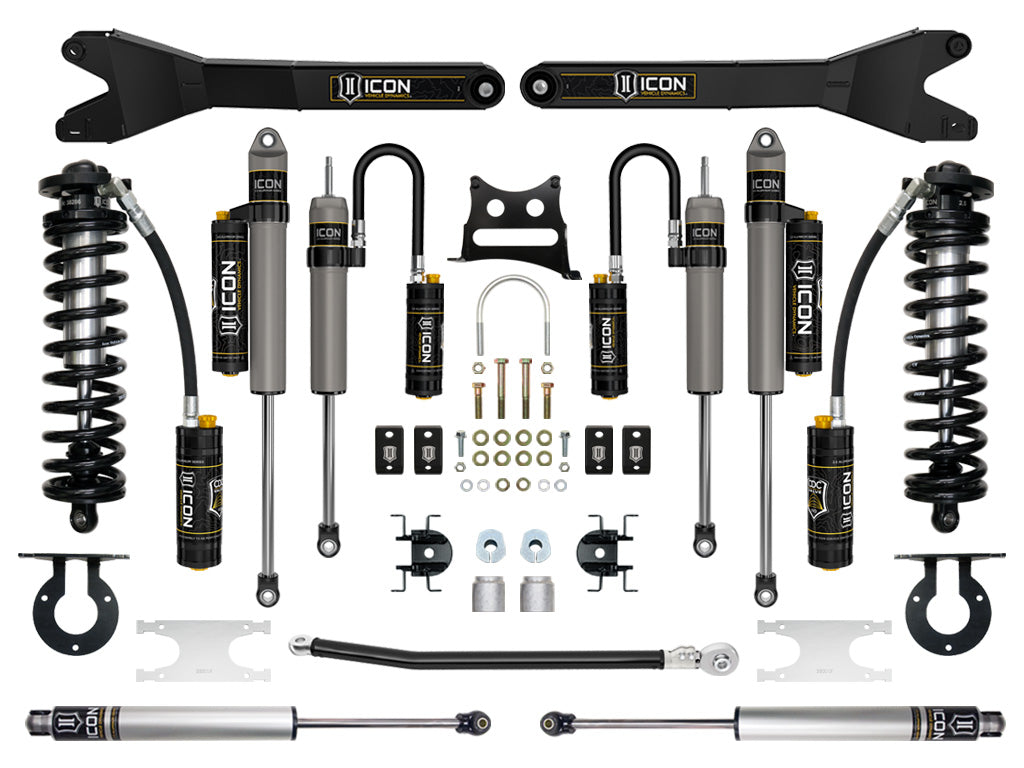

2005-2016 Superduty 2.5 Front and Rear Lift Kit (ICOK63106)

Level up your 2005-2016 Superduty with this complete ICON suspension system. 2.5-3" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Bolt-in system fits in OE coil bucket location
• FK Rod End bearings for extended longevity and minimal deflection
• Ride height adjustable coilovers (2.5-3" of lift over stock)
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Corrosion resistant anodized aluminum shock bodies on rear and secondary front shocks
• Eibach coil springs guaranteed for life against sagging or breakage
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Springs Are Rated For Diesel Engines Only
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• Wide Steer Equipped Trucks Require Stabilizer Part Number 66515 Qty 2
• 2005-2016 F-250s require 4" rear blocks with 15" U-bolt kit to sit level with 2.5" lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
• Ships in multiple boxes

Manufacturer Description

ICON's 2.5 Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary. This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Their on vehicle caster adjustment allows for proper caster while eliminating the need for caster bushings or drop brackets. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37" tall tire clear without coming in contact with the radius arm.
