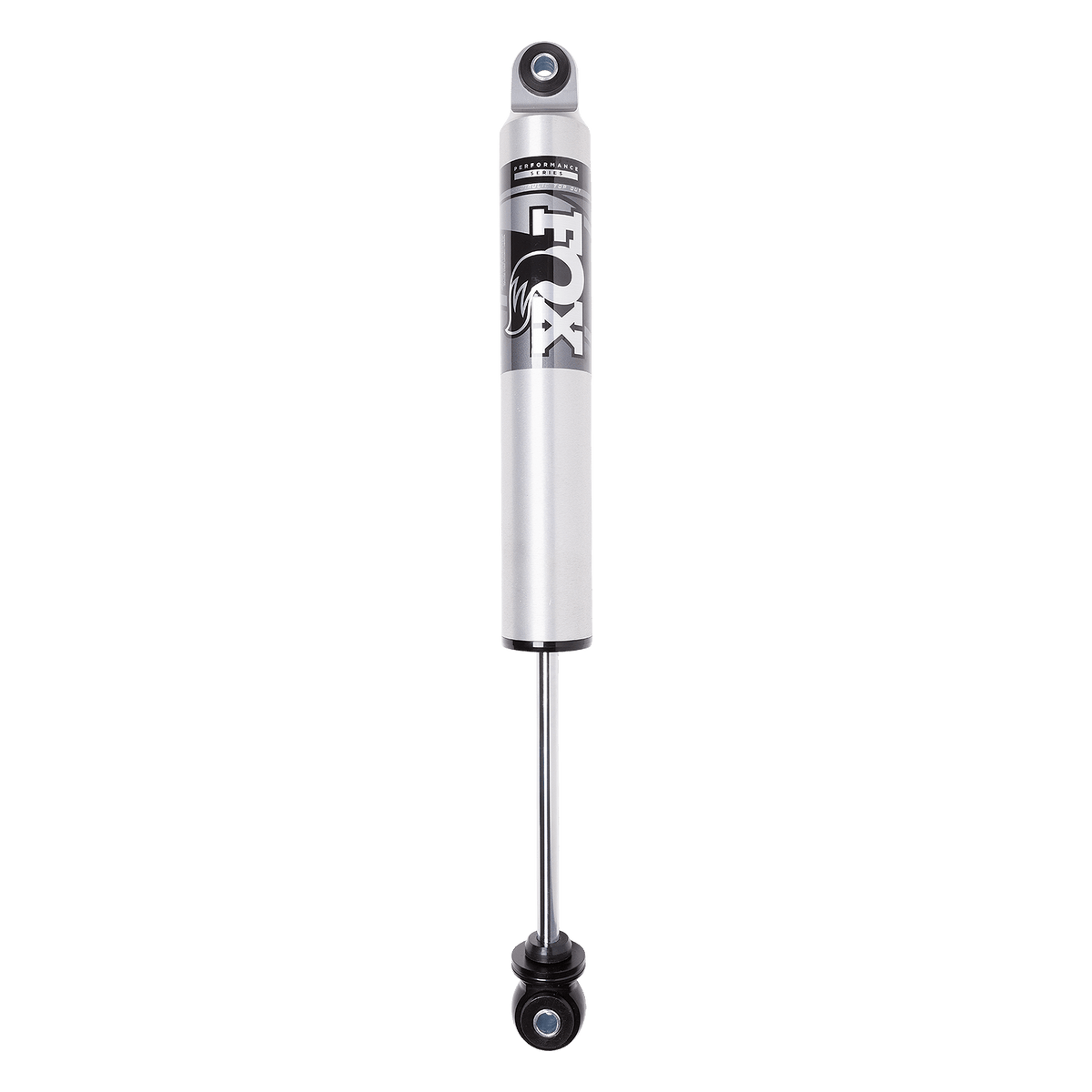

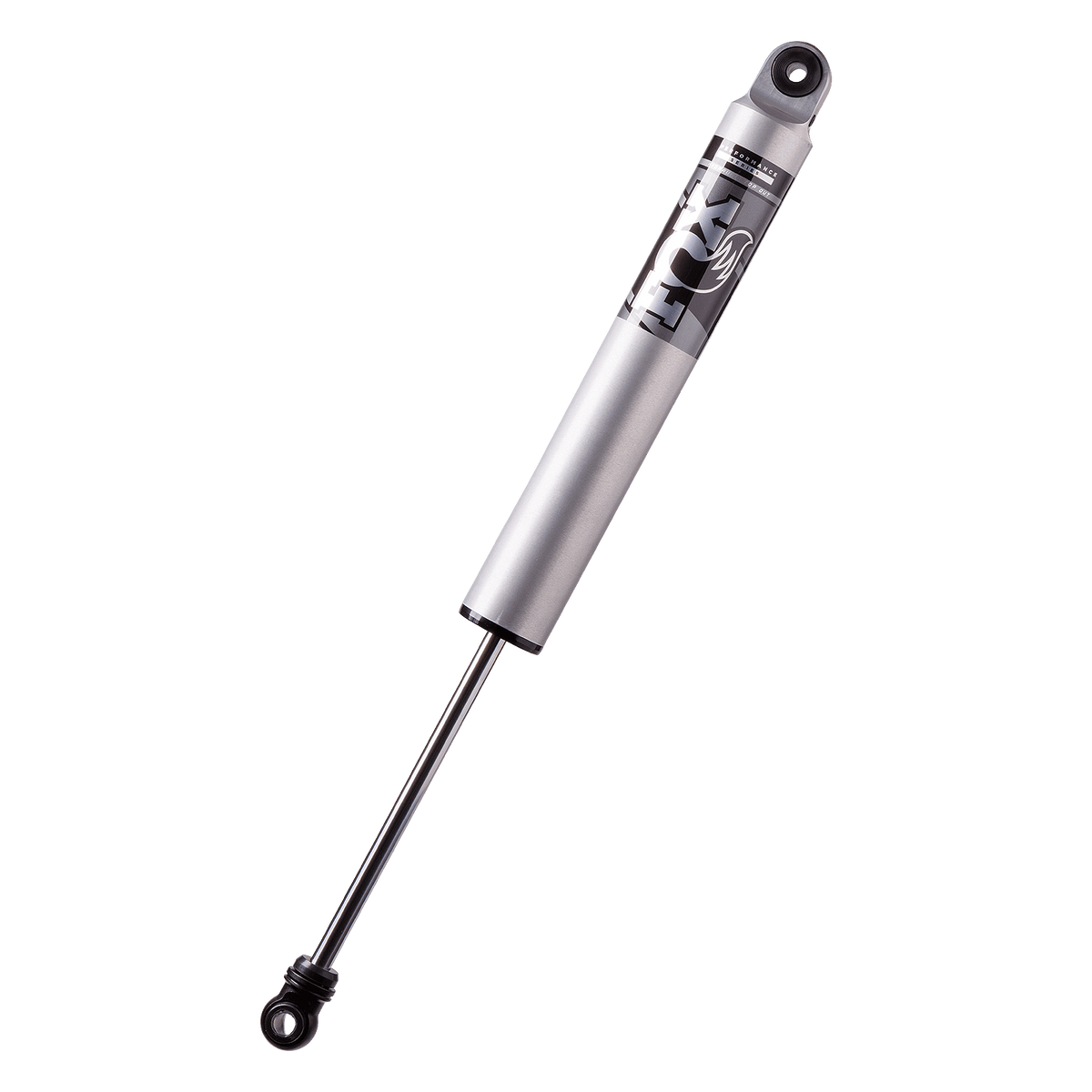

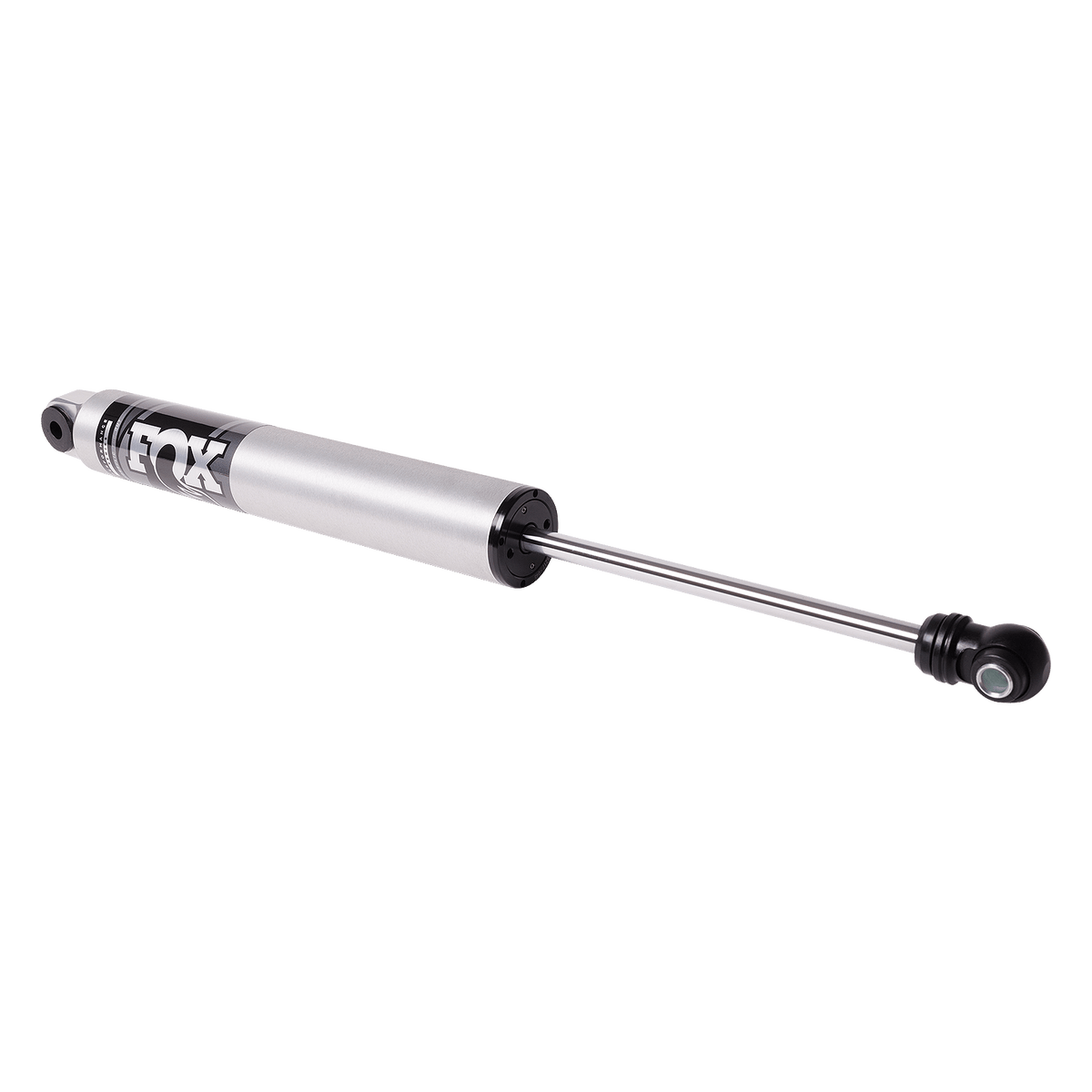

2005-2016 Superduty Rear HTO Shock 4-6" Lift (987-24-056)

Description

The FOX 2.5 Performance Series HTO shock is loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Upgrade to 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Features

• 2.5" Impact extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8" hard chrome shaft
• Internal floating piston (IFP)
• Hydraulic Top Out (HTO) piston
• Corrosion resistant
• Application specific tune
• Fully rebuildable and re-tunable

Specifications

• Position: Rear
• Lift height: 4-6"
• Extended length: 33.88"
• Compressed length: 21.29"
• Travel: 12.59"
• Top mount: Eyelet
• Bottom mount: Eyelet
