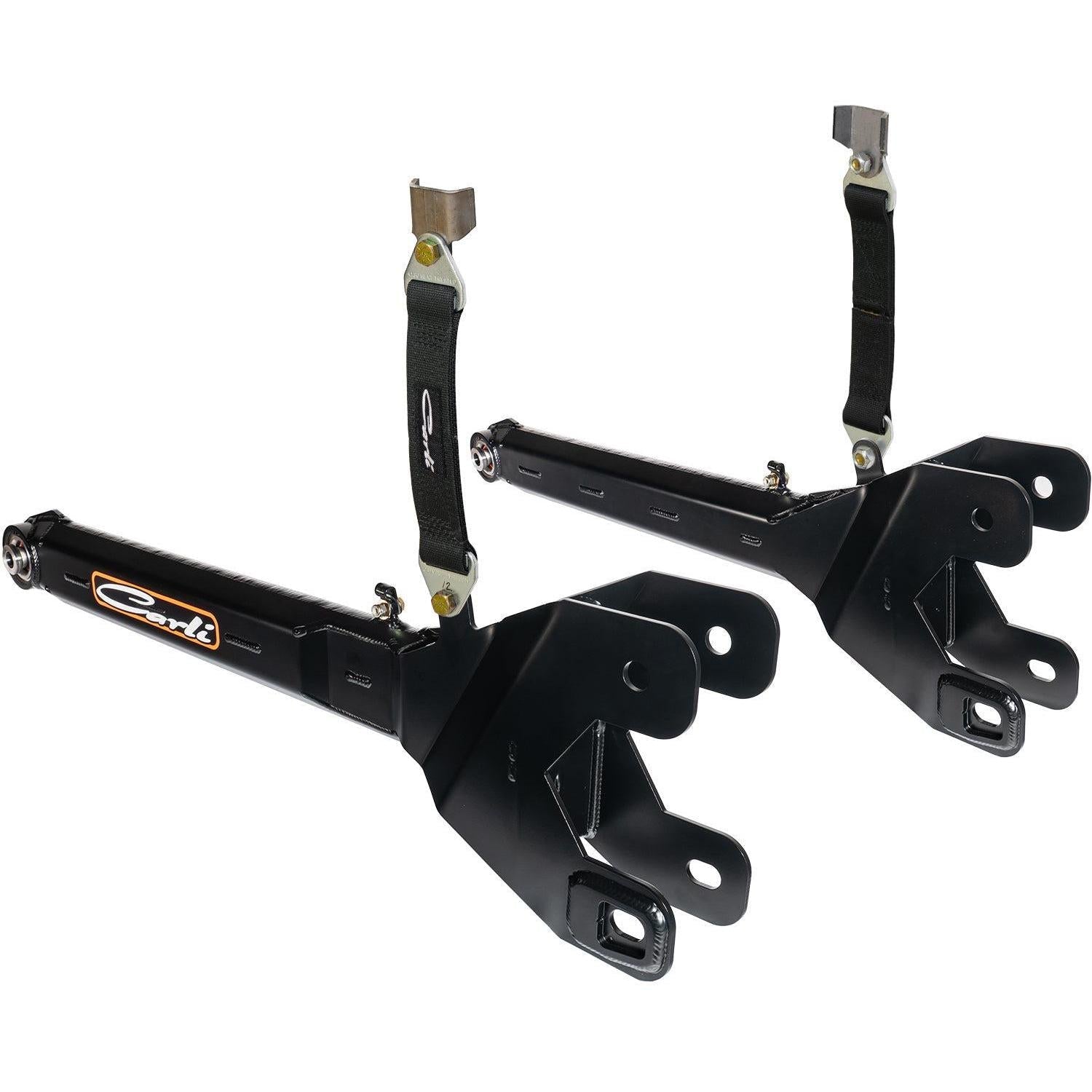

2005-2022 Super Duty 4x4 Fabricated Radius Arms - 4.5"/5.5" Lift (CS-FARA-45-05)

Description

When installing a lift or leveling kit, it is imperative to maintain your truck's alignment and geometry, or you're going to end up wheel-hopping or crab-walking down the road and potentially replacing your tires much sooner than you think. Don't be that guy. These bolt-on Carli Radius Arms are built for trucks with 4.5-5.5" lift kits, and help keep your wheels & tires tilted to the appropriate degree through your suspension's longitudinal range of motion.

Requires Radius Arm Drop Brackets. For 2005-2016 select#AS-FRAD-05or#CS-FRAD-17for 2017-2022

Part Number: CS-FARA-45-05

Features

• Provides 0.5°-2.5° of adjustable caster correction
• 3/16 construction, fully internal gusseted with 1/2" additional tire clearance
• Includes 12" limit strap kit
• 17-4 stainless spherical joint for longevity and bind-free cycling

From Carli Suspension

Fully Boxed Construction boasting full-length internal gusseting makes them bulletproof, 3″ Serviceable 17-4 Stainless Spherical Joint ensures they cycle with no bind in the pivot, an engineered high-clearance cutout allows 37″ tire fitment when running near-stock Backspacing (5.5″) to keep rocks off the paint while Limit Staps prevent the shocks from limiting down travel.

The Carli arms correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster.
