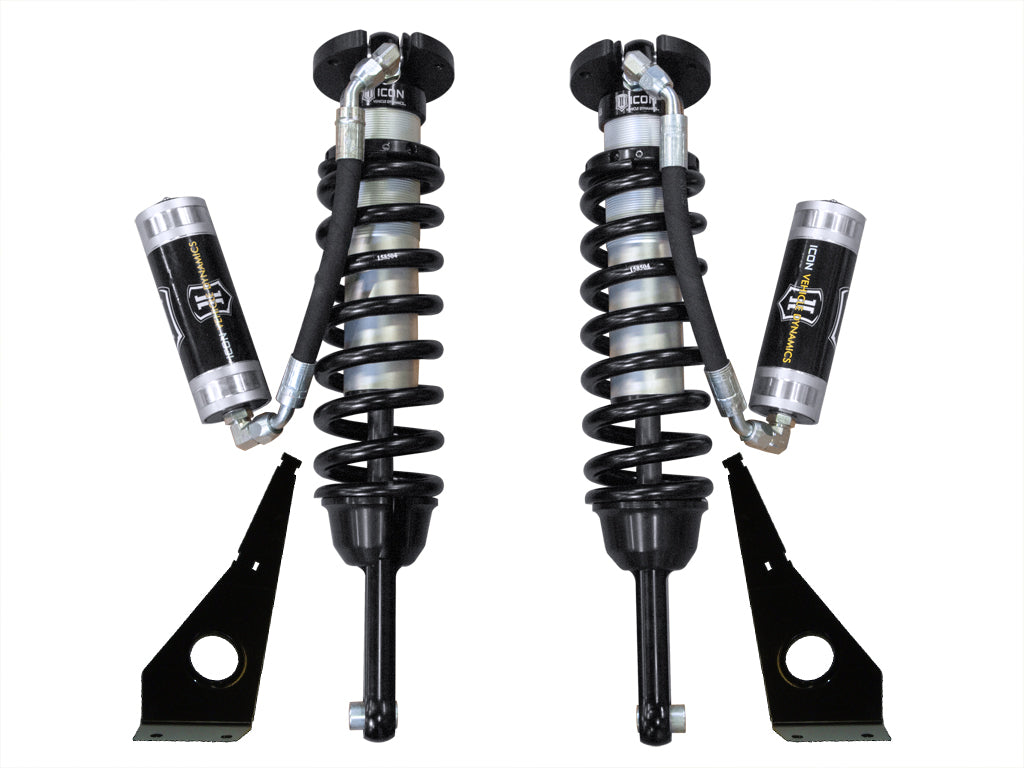

2005-2023 Tacoma 2.5 RR Front Coilover Kit (ICO58730-700)

Drop in serious suspension performance on your 2005-2023 Tacoma with ICON 2.5 Series coilovers. Remote reservoirs keep temps down and damping consistent when you push hard.

Features

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Vehicle specific tuned for superior shock damping and control
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• CAD-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearings
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
• ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
• Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• 2016-2023 Tacoma Lift Range Is 0-2.75"
• Trimming Required For Recommended Tire Size
• Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25" Beyond Maximum
• 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
• Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
• 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
• 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock

Manufacturer Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5" of lift height adjustability on 2005-2015 models or 0-2.75" of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
