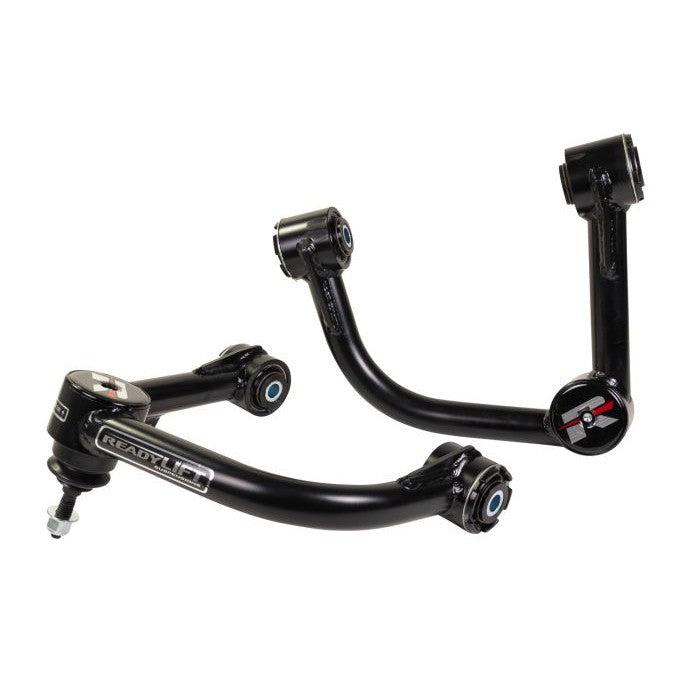

2005-2023 Tacoma Leveling & Big Lift Upper Control Arms (67-55340)

Description

Part Number: 67-55340

Features

• Includes DOM tube steel upper control arms
• Designed for lift height of 0", 2-3", & 6"
• Compatible with stock wheels and tires
• Terrain Control Technology maintenance-free pivot bushings
• Stock/Leveled & Big Lift trucks

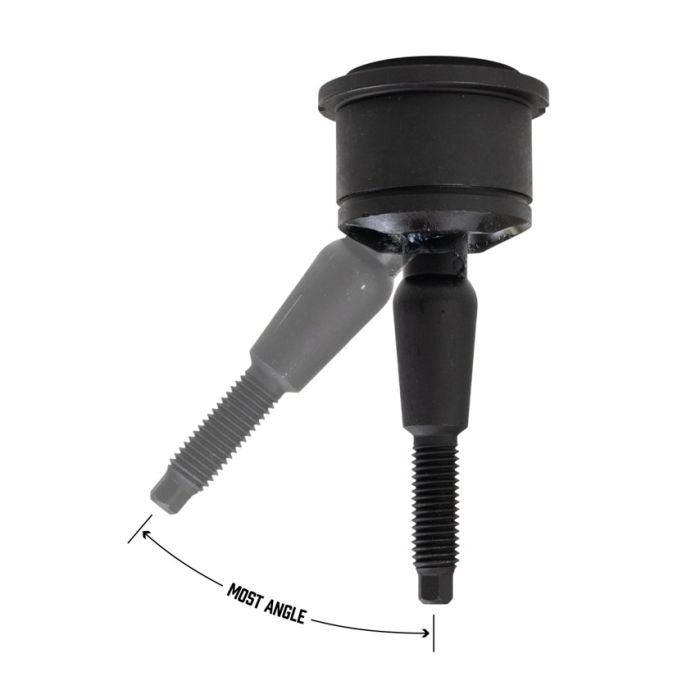

• Proprietary HD High-Angle Ball Joints
• Increased strength and angle for greater wheel travel for lifted applications without sacrificing ride quality.
• Billet O-Ring Dust Cap and Sealed Ball Joint Assembly - Protects the ball joint assembly from corrosion, dirt, and debris in harsh off-road conditions.
• Gusseted Pivot and Ball Joint Housings
• Designed for maximum clearance and strength
• Super-durable polyester Black Powder Coat Finish

Includes:

• HD DOM tube steel control arms with corrected ball joint angles
• HD Ball Joints
• Terrain Control Technology maintenance-free, self-lubricating pivot bushings

Notes

• Do NOT exceed an assembled coilover length of 22" for years 2005-2015 and 20.625" for years 2016-2020 or binding will occur.
• If using on a 6" kit, do NOT exceed length 26.75" extended length or binding will occur.
• If using 67-55340 with a non-approved kit, you must cycle to verify nothing will bind. ReadyLIFT will not warranty any non-approved kit combination.

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click Here to view installation instructions
