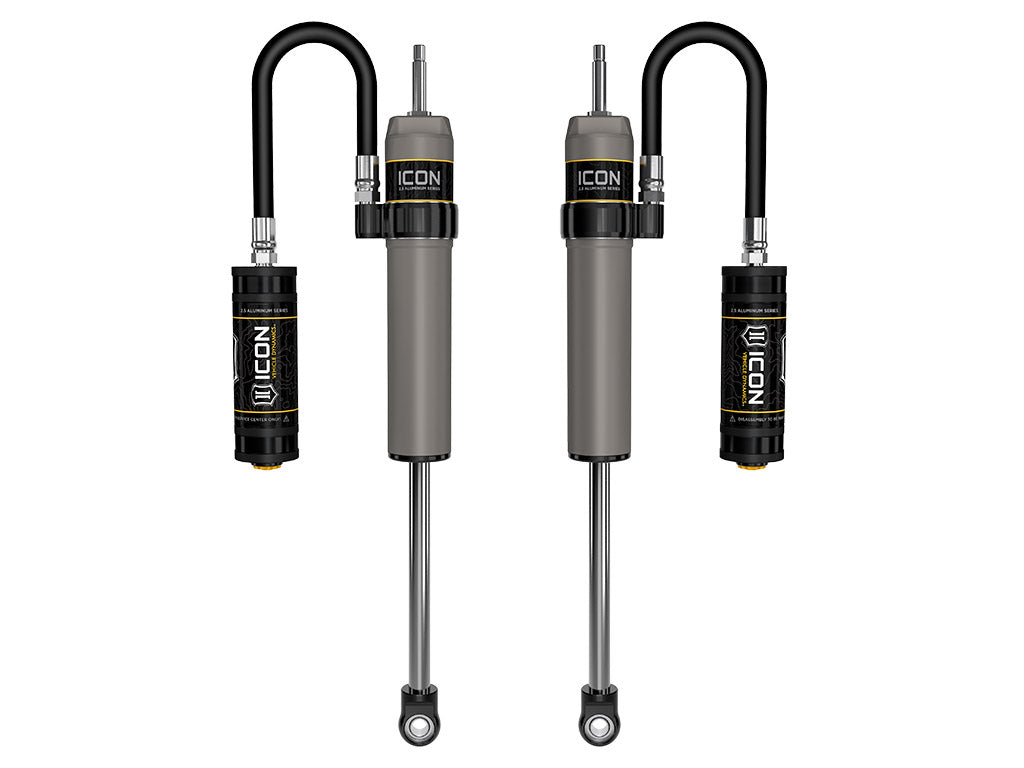

2005-2025 Superduty 2.5 RR Front Shock Kit (ICO67800P)

Upgrade the ride on your 2005-2025 Superduty with ICON 2.5 Series shocks. Vehicle-specific valving delivers better damping, less body roll, and a more planted feel on any surface. Remote reservoirs keep operating temps low during extended off-road sessions.

Features

• ICON’s internal “Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with remote reservoir
• PTFE lined spherical bearings and application specific mounting hardware
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 7/8" diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

Important Notes

• Only fits 4WD models
• Shocks are fully serviceable
• Compatible with 0-3" of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD
• Compatible with 0-3.75" of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
• Compatible with 0-2.75" of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
• Compatible with 0-3" of front lift over stock of 2023-2025 F-250/F-350 4WD without Tremor package
• Compatible with 0-2" of front lift over stock of 2023-2025 F-250/F-350 4WD equipped with Tremor package
• Compatible with 0-3.75" of front lift over stock of 2020-2022 F-450 4WD
• Compatible with 0-3" of front lift over stock of 2023-2025 F-450 4WD
• Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions
• Also requires Reservoir Doubler Kit part number 611003 if installing as secondary shock along with ICON front coilover conversion

Manufacturer Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
