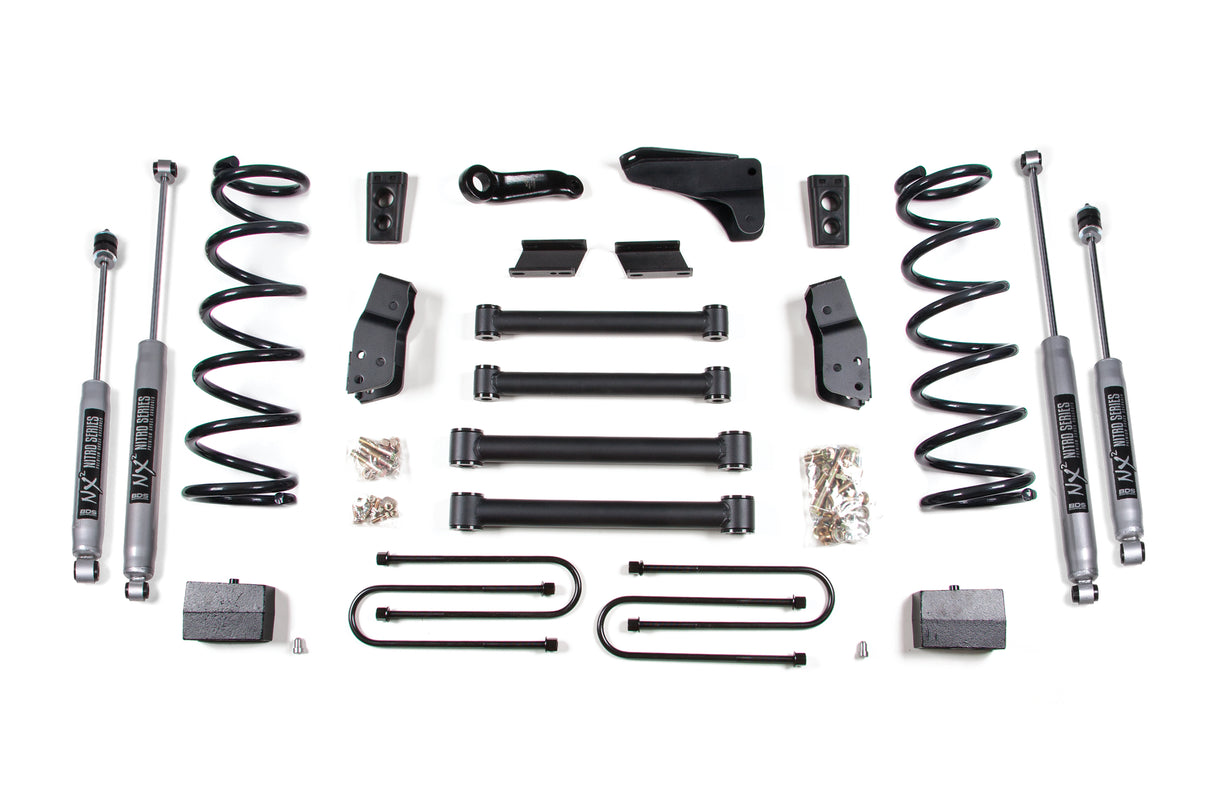

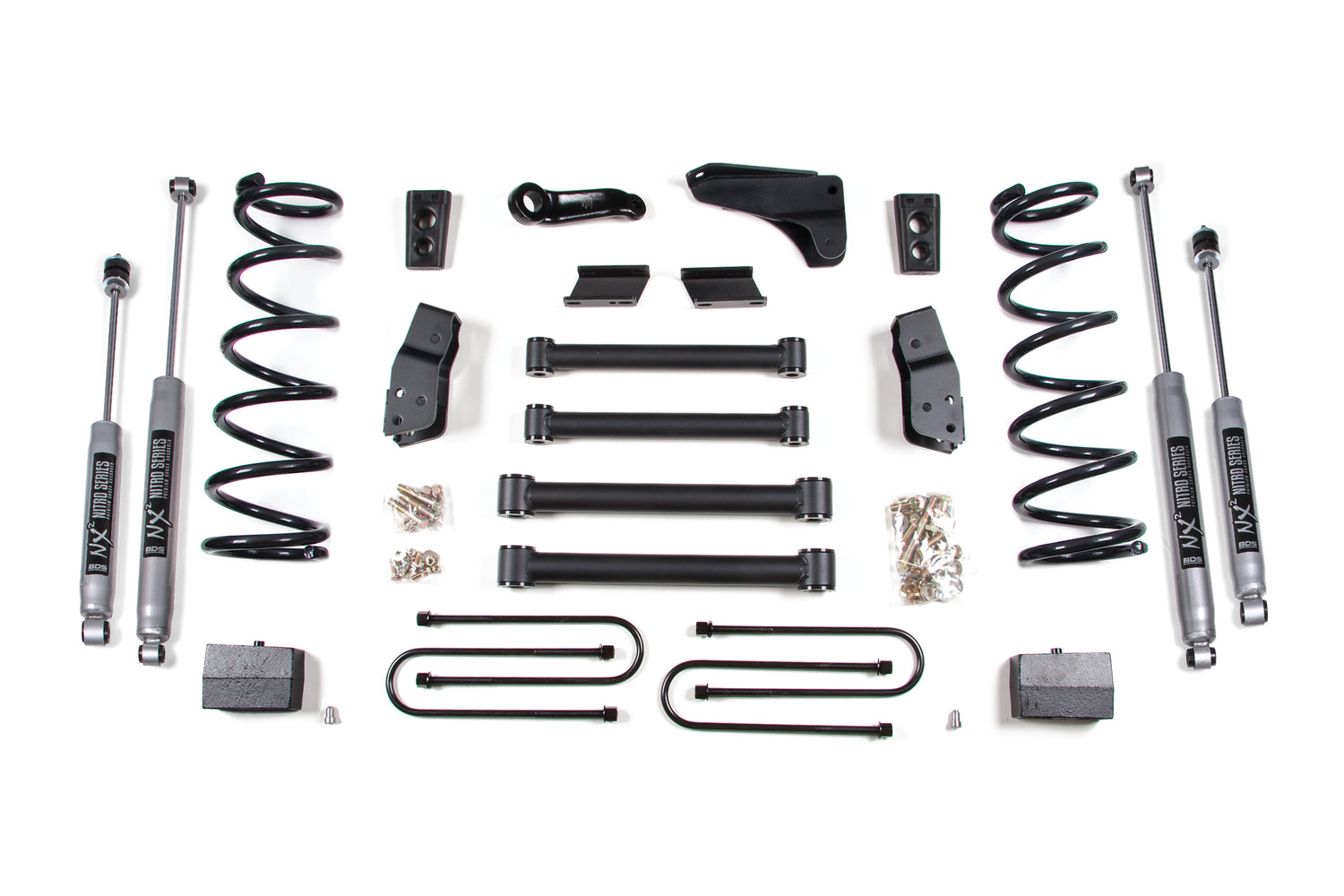

2003-2007 Ram HD / Ram 1500 6" Lift Kit with NX2 Nitro Shocks (BDS226H)

BDS 6" lift kit for the 2006-2007 Dodge Ram 1500 Mega Cab 4WD, with clearance for up to 36" tires. Up front it uses longer-than-stock tubular lower control arms with a relocation bracket to rotate the axle and flatten the upper arm angle, full-length vehicle-specific progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar relocation bracket for steering correction, bump stops, sway bar links and NX2 Nitro shocks. The rear runs heavy duty cast steel blocks, longer u-bolts and matching NX2 Nitro shocks.

Features

• Tubular short control arms improve strength, handling and caster control
• Heavy duty control arm relocation brackets maintain proper suspension geometry
• Front high-strength progressive-rate coil springs for ride quality on any terrain
• Front track bar relocation bracket repositions the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• Rear cast iron block and u-bolt kit for 4" of rear lift, tapered for correct pinion angle with offset pin to restore axle position
• NX2 Nitro shocks: nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston with self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Notes

• This truck is available with two different axle sizes, 3.5" or 4". Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require u-bolt 4066.
• Rear lift options will not fit dually applications.
• Although unusual, if driveline vibration occurs, order transfer case drop kit available in options or t-case index kit.
• Power Wagon applications require sway bar link kit #122401. The Power Wagon has a 2" taller ride height, so net lift gain will be 4".

Includes

• BDS012408, 03-up Dodge 3/4ton 4 Inch Rear w/3-1/2 axle (UPC 658848612376)
• BDS012611, 03-07 Dodge 3/4-1 ton Box Kit (UPC 658848612734)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
