2003-2007 Ram HD / Ram 1500 6" Lift Kit with FOX 2.0 Performance Shocks (BDS270FS)

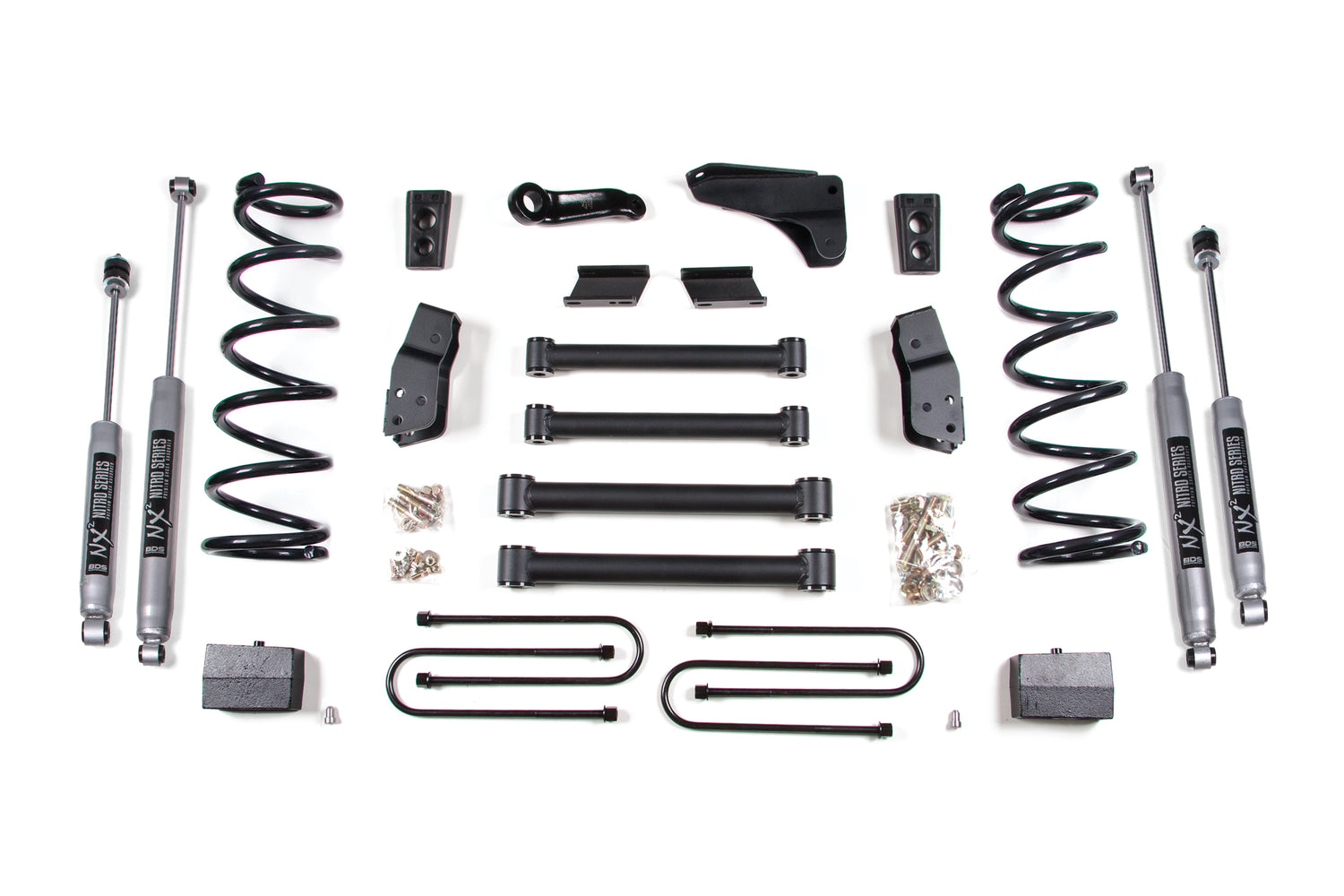

BDS 6" lift kit for the 2006-2007 Dodge Ram 1500 Mega Cab 4WD, with clearance for up to 36" tires. Up front it uses longer-than-stock tubular lower control arms with a relocation bracket to rotate the axle and flatten the upper arm angle, full-length vehicle-specific progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar relocation bracket for steering correction, bump stops, sway bar links and FOX 2.0 Performance Series shocks. The rear runs heavy duty cast steel blocks, longer u-bolts and matching FOX 2.0 Performance Series shocks.

Features

• Tubular short control arms improve strength, handling and caster control
• Heavy duty control arm relocation brackets maintain proper suspension geometry
• Front high-strength progressive-rate coil springs for ride quality on any terrain
• Front track bar relocation bracket repositions the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• Rear leaf springs provide 5" of rear lift with u-bolts, eliminating the lift block, reducing axle wrap and maintaining factory payload ratings
• FOX 2.0 Performance Series shocks: 2" Impact extruded aluminum body, IFP monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston with application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Notes

• This truck is available with two different axle sizes, 3.5" or 4". Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require u-bolt 4066.
• Rear lift options will not fit dually applications.
• Although unusual, if driveline vibration occurs, order transfer case drop kit available in options or t-case index kit.
• Power Wagon applications require sway bar link kit #122401. The Power Wagon has a 2" taller ride height, so net lift gain will be 4".

Includes

• BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring (UPC 658848611294)
• BDS012611, 03-07 Dodge 3/4-1 ton Box Kit (UPC 658848612734)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt (UPC 711745613003)
