2006-2008 Ram 1500 4" Lift Kit with NX2 Nitro Shocks (BDS625H)

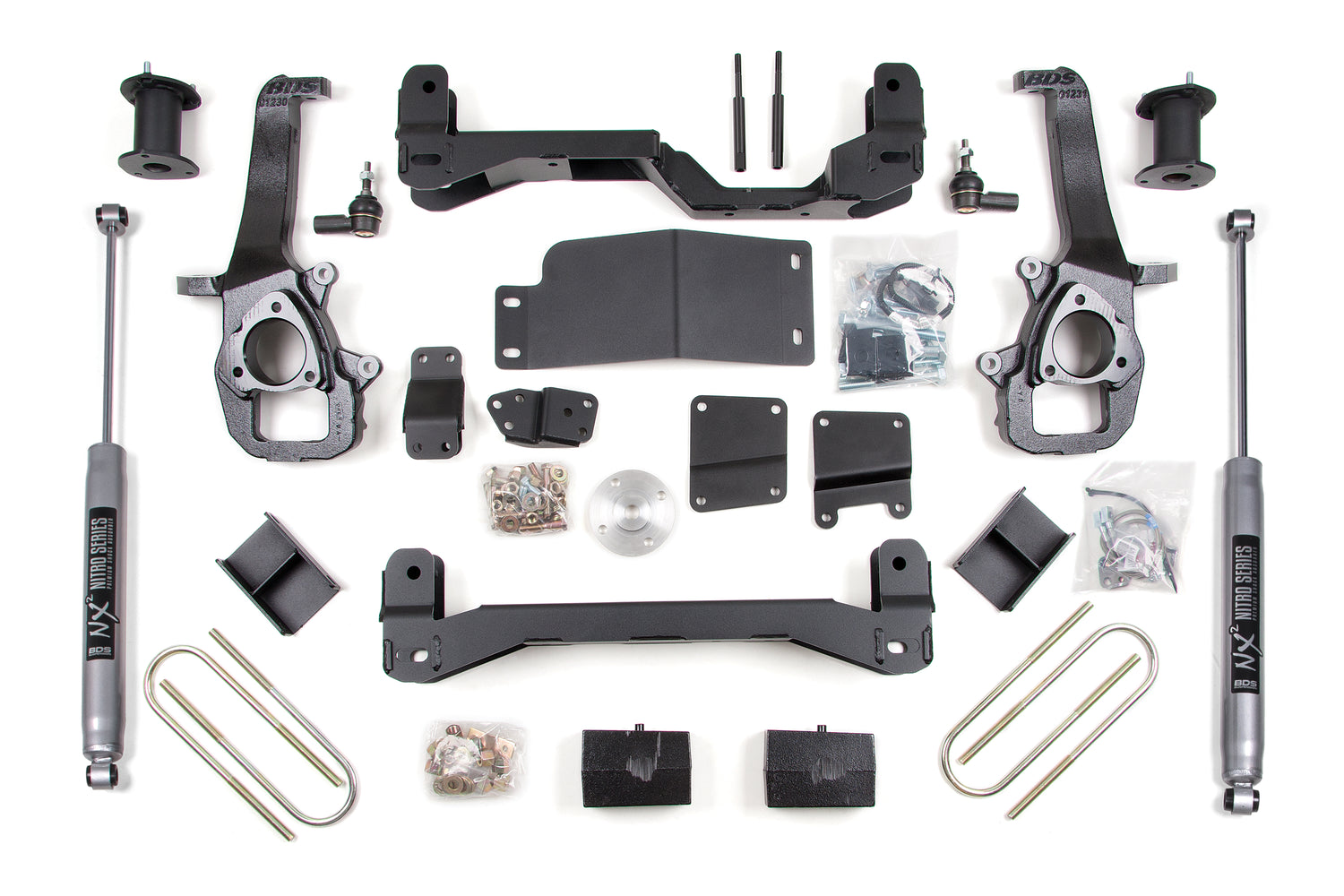

This BDS 4" suspension lift kit steps up the 2006-2008 Ram 1500 4WD with clearance for up to 35" tires. Up front it uses top-mounted strut spacers, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets and HD skid plates, plus CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility, along with sway bar drops, bump stop extensions, stainless braided brake lines and CV spacers. The rear uses heavy duty cast steel lift blocks, a brake line bracket and longer u-bolts. This kit ships with NX2 Nitro shocks: nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• NX2 Nitro gas shocks for improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• FMVSS No.126 Compliant

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Will not fit Mega-Cab models.
• The rack and pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. Larger tire diameter and/or reduced wheel backspacing increases sensitivity and can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• TRX models require the removal of OE lower skid plate.
• Stock 17 inch wheels cannot be re-installed. Stock 20 inch wheels can be reinstalled with stock tires.

Includes

• BDS012218, 06-08 Dodge 1500 2 Inch Rear Box Kit (UPC 658848612130)
• BDS022401, 06-10 Dodge 1500 4 Inch Front Box Kt (3of4) (UPC 658848615360)
• BDS022605, 06 Dodge 1500 6 Inch (4of4) (UPC 658848615421)
• BDS022620, 06-10 Dodge 1500 6 Inch Front Box Kt (1of4) (UPC 658848615452)
• BDS022621, 06-10 Dodge 1500 6 Inch Front Box Kt (2of4) (UPC 658848615469)
• BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (UPC 711745609679)
