2006-2008 Ram 1500 6" Lift Kit with FOX 2.0 Performance Shocks (BDS624FS)

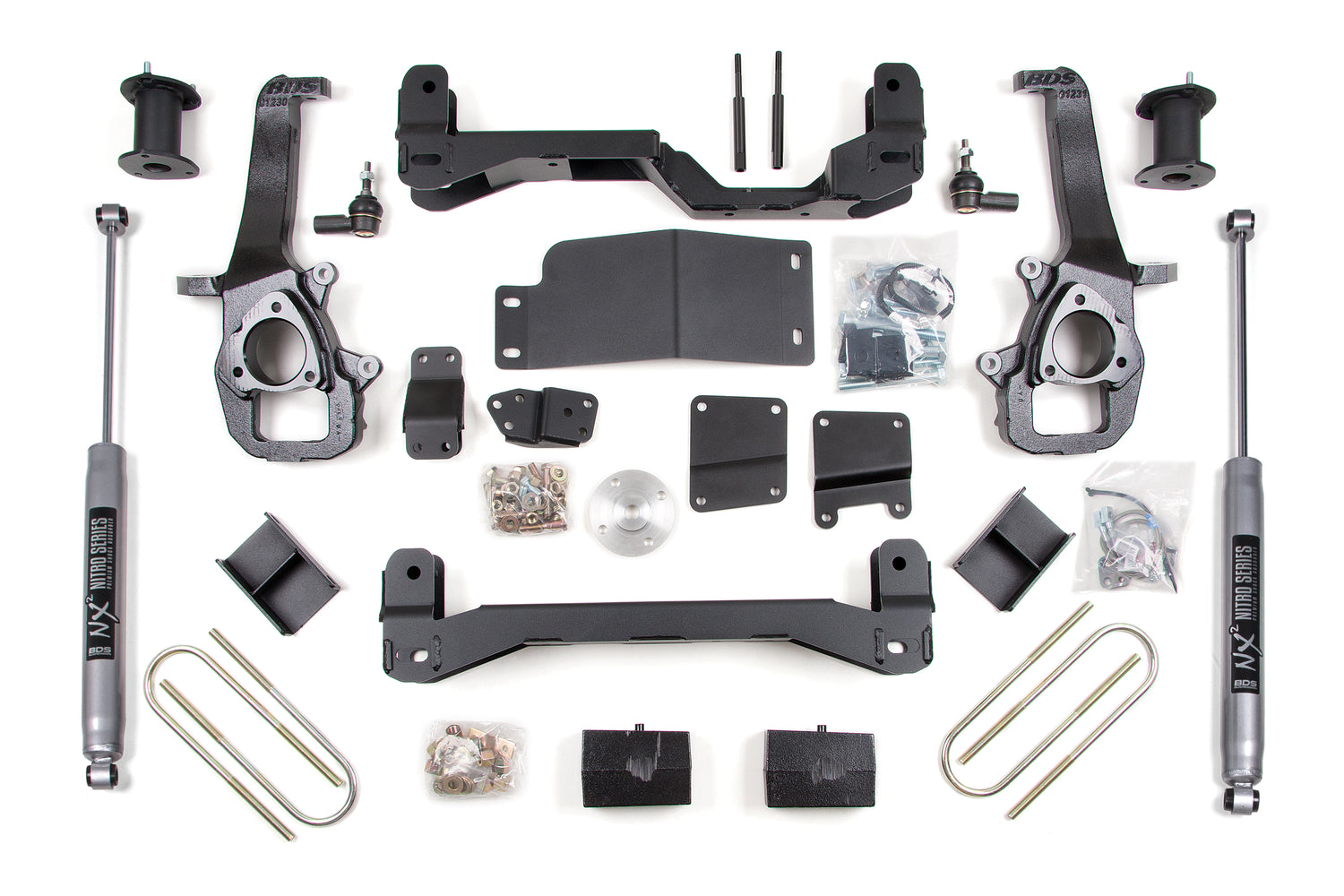

This BDS 6" suspension lift kit steps up your 2006-2008 Dodge Ram 1500 4WD truck with clearance for up to 37" tires on BDS's high-clearance design. Up front it runs top mounted strut spacers, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility, sway bar drops, bump stop extensions, stainless steel braided brake lines, and CV spacers. The rear uses heavy duty cast steel lift blocks, longer u-bolts, brake line relocation brackets, and FOX 2.0 Performance Series shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series IFP gas shocks
• Factory Protection Plus drivetrain warranty included
• FMVSS No.126 compliant
• 2-inch Impact extruded aluminum shock body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Will not fit Mega-Cab models.
• Not recommended for AWD models.
• TRX models require removal of the OE lower skid plate.
• Stock 17 inch wheels cannot be re-installed. Stock 20 inch wheels can be reinstalled with stock tires.
• The rack and pinion steering system is sensitive to an out-of-round or out-of-balance tire/wheel combination; larger tire diameter and/or reduced backspacing can cause minor steering wheel shimmy.

Includes

• BDS012418, 06-08 Dodge 1500 Rear Box Kit (UPC 658848612406)
• BDS022605, 06 Dodge 1500 6 Inch (4of4) (UPC 658848615421)
• BDS022620, 06-10 Dodge 1500 6 Inch Front Box Kt (1of4) (UPC 658848615452)
• BDS022621, 06-10 Dodge 1500 6 Inch Front Box Kt (2of4) (UPC 658848615469)
• BDS022623, 06-10 Dodge 1500 6 Inch Front Box Kt (3of4) (UPC 658848615476)
• FOX98224769, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
