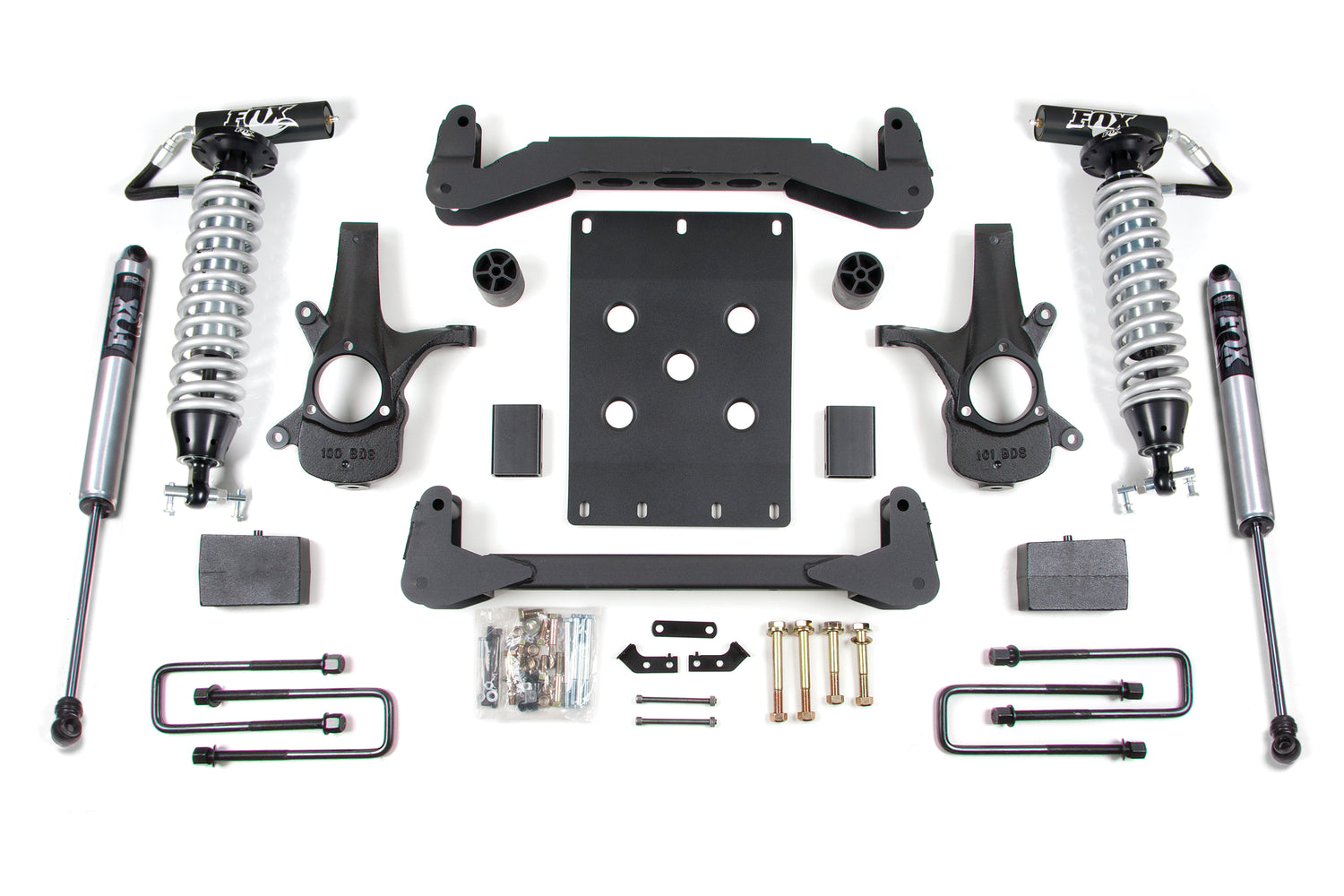

2007-2013 GM 1500 4" Lift Kit with FOX 2.5 Performance Shocks (BDS187FDSC)

BDS offers a 2WD-specific 4" coil-over lift kit for your 2007-2013 Chevy Silverado and GMC Sierra 1500, built around proprietary FOX 2.5 coil-over shocks with remote reservoirs for increased travel, off-road capability, and on-road comfort. The high-clearance front end uses 1/4" thick high-arched steel crossmembers, HD skid plates, and CNC-machined ductile iron steering knuckles with sway bar drops, bump stop extensions, brake line brackets, and CV spacers. This version uses full Glide-Ride rear leaf springs to lift and level while eliminating the need for a lift block, along with new u-bolts, brake line brackets, and FOX 2.0 Performance Series shocks. Optional Dual Speed Compression adjustment lets you tune low and high-speed compression for any terrain.

Features

• FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• 2.5-inch smooth bore zinc plated seamless steel body
• Zinc-plated and double-clear coated for long lasting finish
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• Application-specific, adjustable 3.0 Eibach racing springs
• 7/8-inch hard chrome-plated steel shafts
• Application specific valving to maximize performance
• Dual Speed Compression Adjuster increases both low and high-speed compression levels up to 25 percent
• Glide-Ride leaf springs eliminate any need for a lift block
• Reduces axle wrap and creates a more controlled and stable feel
• Multi-leaf progressive design for a smooth ride
• Maintains factory payload weight ratings

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5
• Wheel Diameter: 17x9, 20x9
• Back Spacing: 5/5.75

Notes

• Strut compressor required for installation.
• This system will not fit 2007 Classic models.
• 20 inch wheels with 5-1/2 inch to 5-3/4 inch backspacing recommended to reduce trimming.
• Will not fit 2009-12 Two-Mode Hybrid models with Electronic Power Steering (EPS)
• Will not work on extended/crew cab long box vehicles

Includes

• BDS001559, GM 1/2 ton 5.5in Rear Spring (UPC 658848611218)
• BDS011458, 99-13 GM 1500 4 Inch Rear Box Kit (UPC 658848611874)
• BDS021640, 07-13 GM 1500/SUV 4-6 Inch Front Box (1of2) (UPC 658848614929)
• BDS021643, 07 GM 2wd (2of2) (UPC 658848614936)
• FOX88306135, Kit: BDS 07-18 GM 1500 Front Coilover, 2.5 Series, R/R, 4 inch Lift, Dual Speed Compression Adjust (UPC 814897013865)
• FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (UPC 692878899062)
